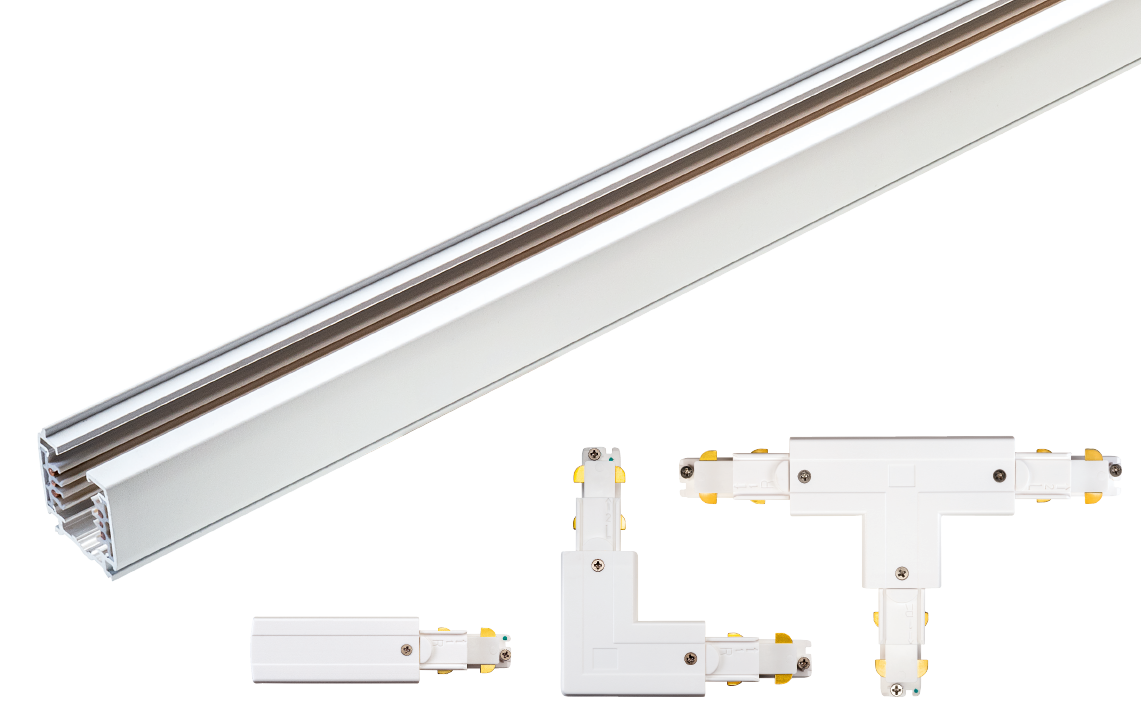

ShopLine DALI

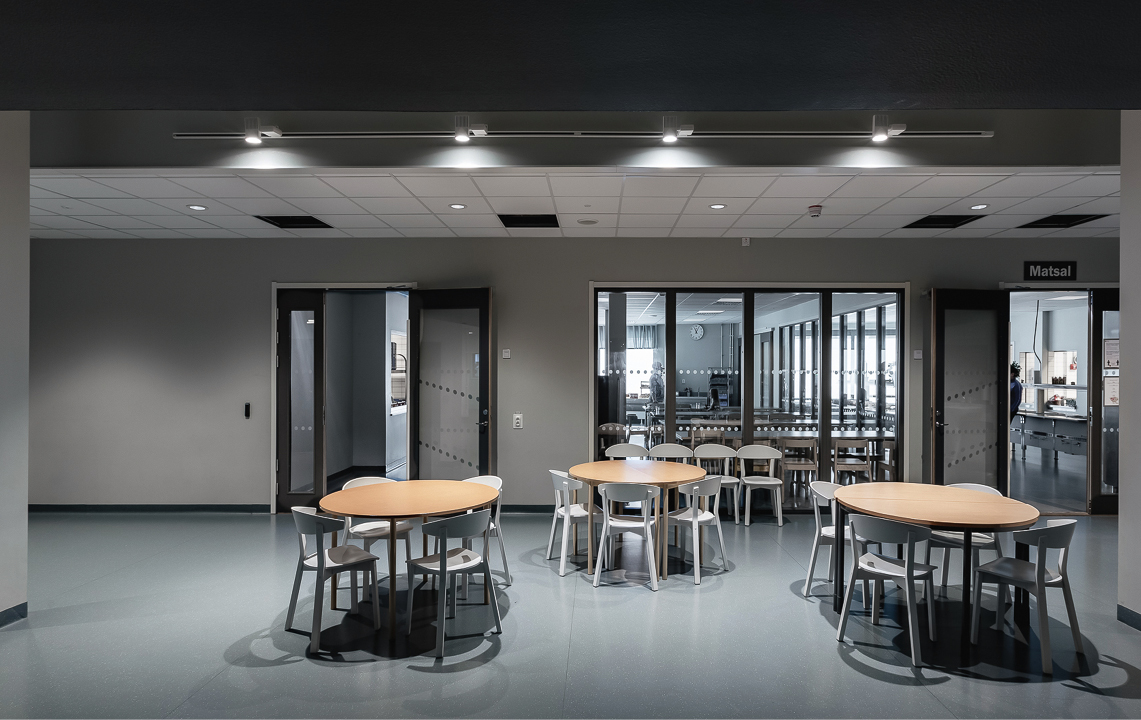

The Shopline DALI is a stylish track system with rails and accessories in white and black. It has a narrow design and attractive matt finish, which means that it matches the ceiling perfectly. Perfect for shops, offices and exhibitions.With 3-phases, large installations are possible while splitting the phases on separate circuit breakers. And with the DALI control each luminaire can be individually addressed and controlled.Track can be cut to any length, and due to the clever design, there is no need to bend the ground connectors, like on some other systems.ShopLine DALI tracks are compatible with a wide range of ShopLine DALI luminaires from SG, for both spot lighting and general lighting.

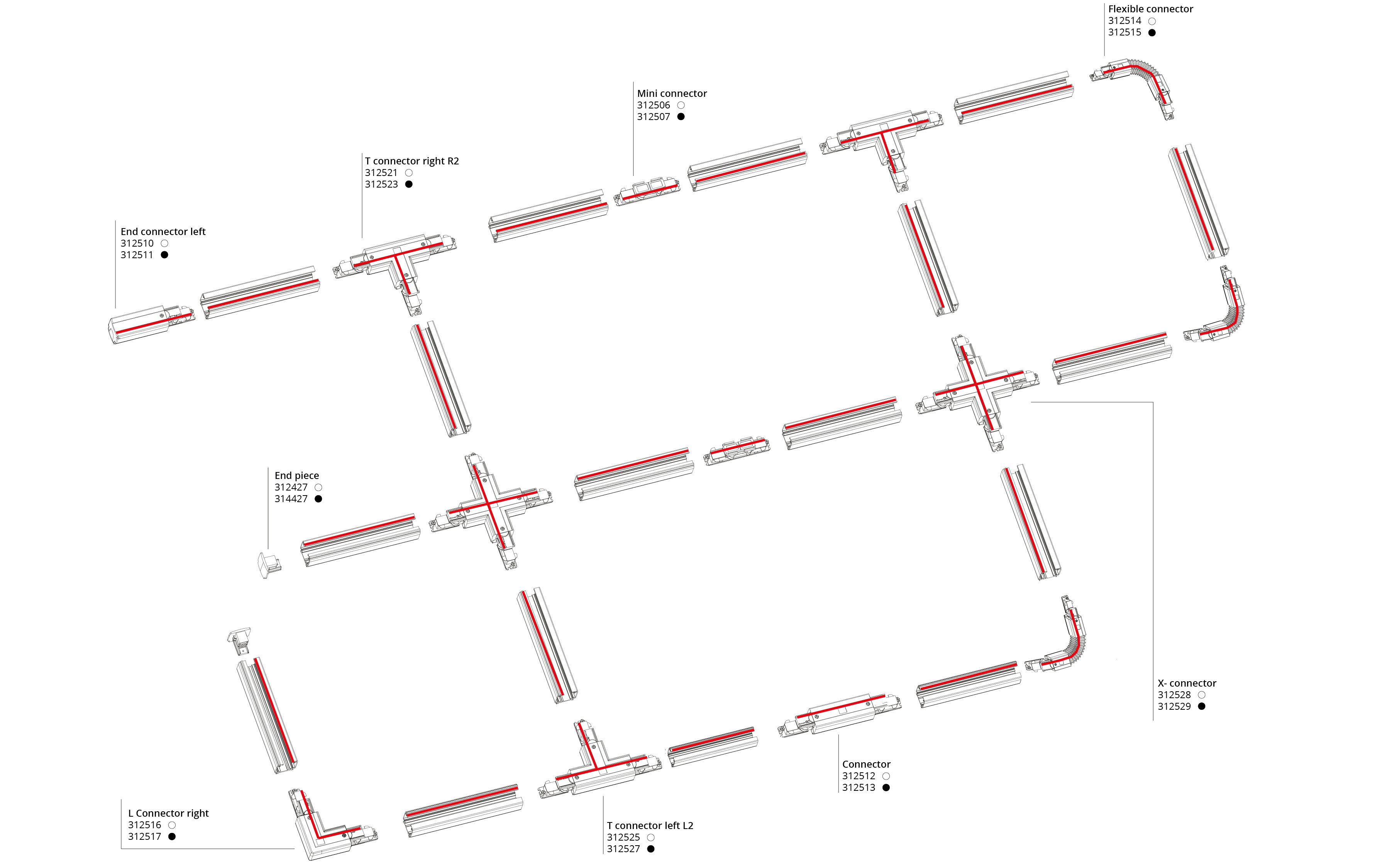

Article list
ShopLine DALI
:
Indoor
Mounting type:
Surface
Luminaire class:
Class I
IP Class:
IP20
Filters
| Tools | ||||
|---|---|---|---|---|
| Relief hook | L160 x W105 x H256 | |||
| Outlet | L106 x W54 x H98 | |||
| Rail 2m | L2000 x W35 x H35 | |||
| Rail 3m | L3000 x W35 x H35 | |||
| Rail 4m | L4000 x W35 x H35 | |||
| Connector, mini | L107 x W21 x H27 | |||
| End connector, right | L139 x W35 x H32 | |||
| End connector, left | L139 x W35 x H32 | |||
| Connector | L202 x W35 x H32 | |||
| Flexible Connector | L285 x W35 x H32 | |||
| L Connector right | L119 x W119 x H32 | |||
| L Connector left | L119 x W119 x H32 | |||
| T Connector right (R1) | L203 x W119 x H34 | |||
| T Connector right (R2) | L203 x W119 x H34 | |||
| T Connector left (L1) | L203 x W119 x H34 | |||
| T Connector left (L2) | L203 x W119 x H34 | |||
| X Connector | L203 x W203 x H34 | |||
| Monopoint | Ø143 x H35 | |||
| End piece | L31 x W35 x H36 | |||
| Fastening T-Ceiling | L90 x W60 x H10 | |||
| Wire kit 5m | L5000 | |||
| Outlet | L106 x W54 x H98 | |||
| End piece | L31 x W35 x H36 | |||
| Fastening T-Ceiling | L90 x W60 x H10 | |||
| Relief hook | L160 x W105 x H256 | |||
| Wire kit 5m | L5000 | |||
| Rail 2m | L2000 x W35 x H35 | |||
| Rail 3m | L3000 x W35 x H35 | |||
| Rail 4m | L4000 x W35 x H35 | |||
| Connector, mini | L107 x W21 x H27 | |||
| End connector, right | L139 x W35 x H32 | |||
| End connector, left | L139 x W35 x H32 | |||
| Connector | L202 x W35 x H32 | |||
| Flexible Connector | L285 x W35 x H32 | |||
| L Connector right | L119 x W119 x H32 | |||
| L Connector left | L119 x W119 x H32 | |||
| T Connector right (R1) | L203 x W119 x H34 | |||
| T Connector right (R2) | L203 x W119 x H34 | |||
| T Connector left (L1) | L203 x W119 x H34 | |||
| T Connector left (L2) | L203 x W119 x H34 | |||
| X Connector | L203 x W203 x H34 | |||
| Monopoint | Ø143 x H35 |
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
White
White
White
White
White
White
White
White
White
White
White
White
White
White
White
White
White
White
White
Sorry, we couldn’t find what you are looking for.
| Tools | ||||
|---|---|---|---|---|
| Relief hook | L160 x W105 x H256 | |||
| Outlet | L106 x W54 x H98 | |||
| Rail 2m | L2000 x W35 x H35 | |||
| Rail 3m | L3000 x W35 x H35 | |||
| Rail 4m | L4000 x W35 x H35 | |||
| Connector, mini | L107 x W21 x H27 | |||
| End connector, right | L139 x W35 x H32 | |||
| End connector, left | L139 x W35 x H32 | |||
| Connector | L202 x W35 x H32 | |||
| Flexible Connector | L285 x W35 x H32 | |||
| L Connector right | L119 x W119 x H32 | |||
| L Connector left | L119 x W119 x H32 | |||
| T Connector right (R1) | L203 x W119 x H34 | |||
| T Connector right (R2) | L203 x W119 x H34 | |||
| T Connector left (L1) | L203 x W119 x H34 | |||
| T Connector left (L2) | L203 x W119 x H34 | |||
| X Connector | L203 x W203 x H34 | |||
| Monopoint | Ø143 x H35 | |||
| End piece | L31 x W35 x H36 | |||
| Fastening T-Ceiling | L90 x W60 x H10 | |||
| Wire kit 5m | L5000 | |||
| Outlet | L106 x W54 x H98 | |||
| End piece | L31 x W35 x H36 | |||
| Fastening T-Ceiling | L90 x W60 x H10 | |||
| Relief hook | L160 x W105 x H256 | |||
| Wire kit 5m | L5000 | |||
| Rail 2m | L2000 x W35 x H35 | |||
| Rail 3m | L3000 x W35 x H35 | |||
| Rail 4m | L4000 x W35 x H35 | |||
| Connector, mini | L107 x W21 x H27 | |||
| End connector, right | L139 x W35 x H32 | |||
| End connector, left | L139 x W35 x H32 | |||
| Connector | L202 x W35 x H32 | |||
| Flexible Connector | L285 x W35 x H32 | |||
| L Connector right | L119 x W119 x H32 | |||
| L Connector left | L119 x W119 x H32 | |||
| T Connector right (R1) | L203 x W119 x H34 | |||
| T Connector right (R2) | L203 x W119 x H34 | |||
| T Connector left (L1) | L203 x W119 x H34 | |||
| T Connector left (L2) | L203 x W119 x H34 | |||
| X Connector | L203 x W203 x H34 | |||
| Monopoint | Ø143 x H35 |
Sorry, we couldn’t find what you are looking for.
Accessories
| Image | Article code | Description | Dimensions | Tools |
|---|---|---|---|---|
| Shopline DALI Black Pendant Adapter | L113 x W32 x H52 | |||
| Shopline Black Weight distribution piece | L180 x W30 x H5 | |||
| Shopline White Weight distribution piece | L180 x W30 x H5 | |||
| Shopline DALI White Pendant Adapter | L113 x W32 x H52 |
