Sense 320 DALI

Sense 320 3-Circuit White 3390lm 3000K Ra>80 DALI-2

Article code
212384
EAN
7021982123849
Back to articlelist

Overview

Efficacy
126 lm/W
Lumen
3390lm
IP Class
IP40/IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ip20ip40
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 212384 Eulumdat file (ldt) 7021982123849_Sense 320 3-Circuit White 3310lm 3000K Ra80 DALI Dialux file (uld) 7021982123849_Sense 320 3-Circuit White 3310lm 3000K Ra80 DALI

See more

Relux file (rolf) 7021982123849_Sense_320_3-Circuit_White_3310lm_3000K_Ra_80_DALI Mounting instruction Sense 320 3T Dali_User Manual CE Declaration Sense 320 3T ENEC Certificate Sense 320 3-T DALI

How to specify

Text copied to clipboard

Sense 320 3-Circuit White 3390lm 3000K Ra>80 DALI-2, Article code: 212384, EAN: 7021982123849, IP40/IP20, Electrical: System wattage: 27W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 3390lm, Efficacy: 126 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Light distribution: Direct, Optic: Opal, Beam angle: 85°, Photobiological safety: RG 0, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class II SELV, IP Class: IP40/IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: ShopLine DALI track (adapter included), Dimensions: Height (mm) H: 100, Diameter (mm) D: 320, Weight (kg) gross/net: 1.752 / 1.443, Packaging: Packaging dimensions (mm): 365 x 365 x 186

Electrical

System wattage
27W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
3390lm
Efficacy
126 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000

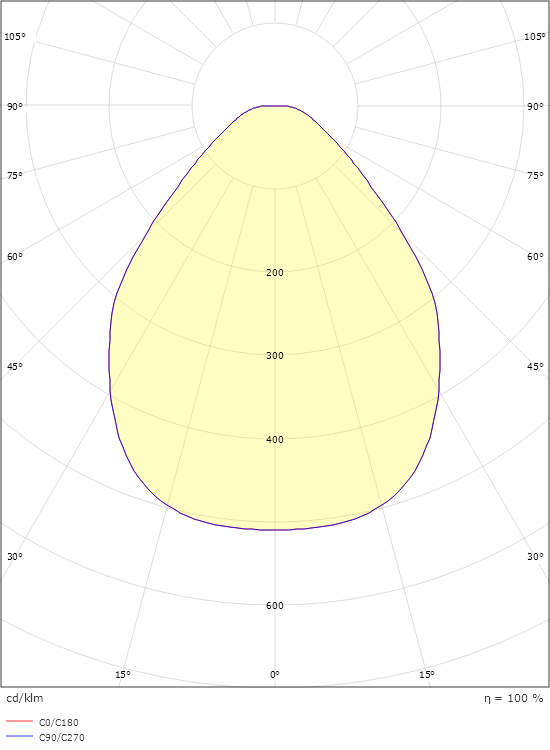

Light distribution
Direct
Optic
Opal
Beam angle
85°
Photobiological safety
RG 0

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class II SELV
IP Class
IP40/IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
ShopLine DALI track (adapter included)

Dimensions

Height (mm) H
100
Diameter (mm) D
320
Weight (kg) gross/net
1.752 / 1.443

Packaging

Packaging dimensions (mm)
365 x 365 x 186
