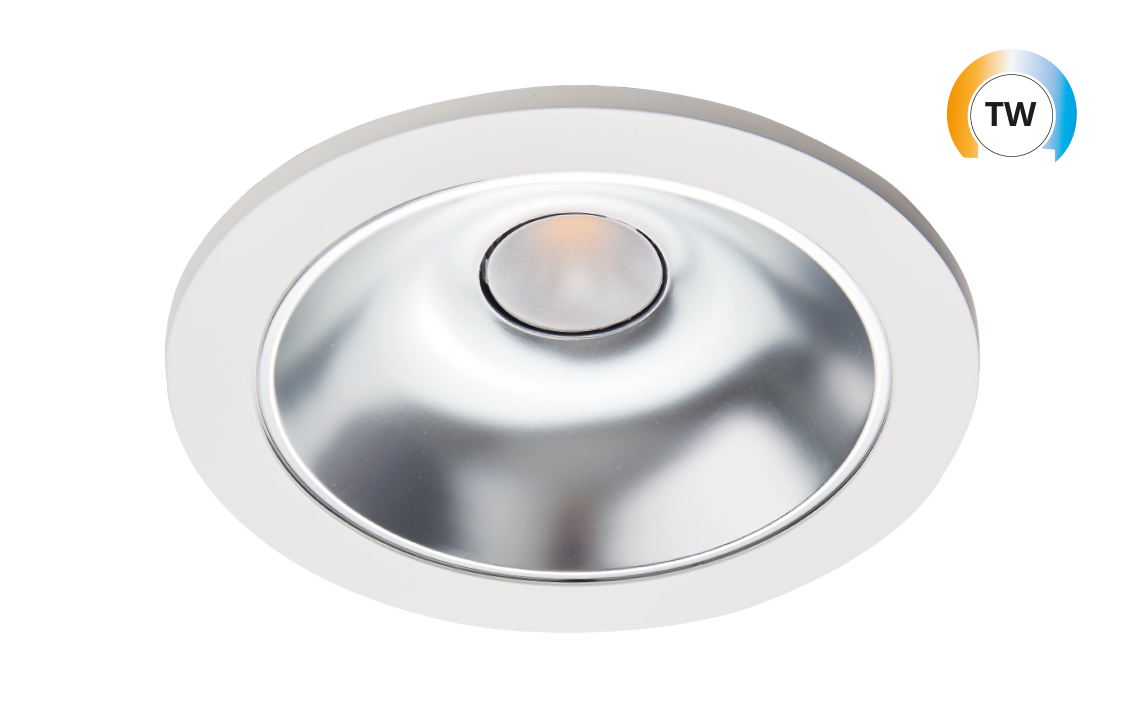

Rax 200 TW

Rax 200 TW White 2500lm 2700-6500K Ra>80 TW LEDDim

Article code
212309
EAN
7021982123092
Back to articlelist

Overview

Efficacy
89 lm/W
Lumen
2500lm
IP Class
IP20
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_2
  • selv
  • tw
  • ce

Tools

Downloads

Specification sheet 212309 Mounting instruction Rax TW LEDDim_Monteringsanvisning CE Declaration Rax 200 TW Relux file (rolf) 7021982123092_Rax_200_TW_White_2500lm_2700-6500K_Ra_80_Trailing_edge_dimming_Tunable_White_LEDDim Eulumdat file (ldt) 7021982123092_Rax 200 TW 28W LED 2700-6500K Ra80 LEDDim-41451 Dialux file (uld) 7021982123092_Rax 200 TW 28W LED 2700-6500K Ra80 LEDDim Revit file - Generic Rax 200 TW - generic Revit file - Ceiling Based Rax 200 TW - ceiling based

How to specify

Text copied to clipboard

Rax 200 TW White 2500lm 2700-6500K Ra>80 TW LEDDim, Article code: 212309, EAN: 7021982123092, IP20, Electrical: System wattage: 28W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 2500lm, Efficacy: 89 lm/W, Colour temperature: 2700-6500K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Satin Matt Reflector, Photobiological safety: RG 1, Control/Dimming: Type: TW LEDDim, Protection: Luminaire class: Class II SELV, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Flame retardant polycarbonate, Colour: White, Optics: Aluminium, Mounting/Connection: Mounting: Recessed, Indoor, Dimensions: Diameter (mm) D: 223, Cut-out (mm): 200, Ceiling void depth (mm): 100, Distance to flammable materials: 50mm, Weight (kg) gross/net: 1.392 / 1.3, Packaging: Packaging dimensions (mm): 235 x 235 x 130

Electrical

System wattage
28W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
2500lm
Efficacy
89 lm/W
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>100,000

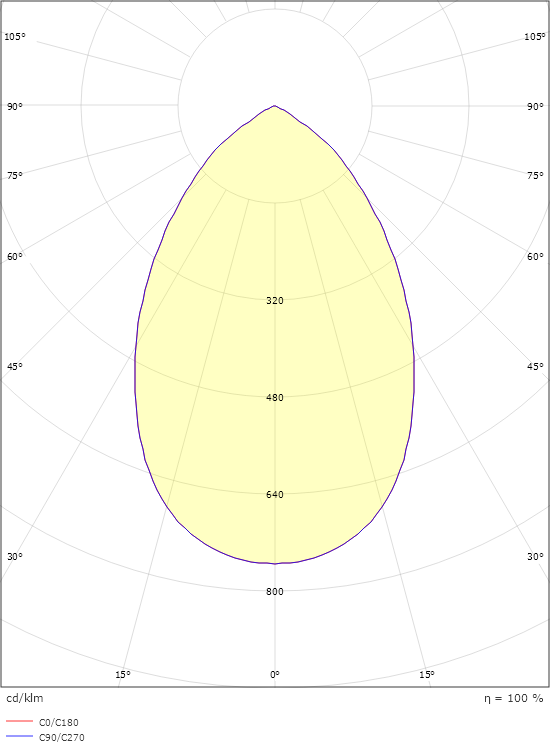

Light distribution
Direct
Optic
Satin Matt Reflector
Photobiological safety
RG 1

Control/Dimming

Type
TW LEDDim

Protection

Luminaire class
Class II SELV
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Flame retardant polycarbonate
Colour
White
Optics
Aluminium

Mounting/Connection

Mounting
Recessed, Indoor

Dimensions

Diameter (mm) D
223
Cut-out (mm)
200
Ceiling void depth (mm)
100
Distance to flammable materials
50mm
Weight (kg) gross/net
1.392 / 1.3

Packaging

Packaging dimensions (mm)
235 x 235 x 130
