Sense Opalprism TW

Sense TW 625x625 White Opalprism 4000lm 2700-6500K Ra>80

Article code
212699
EAN
7021982126994
Back to articlelist

Overview

Lumen
4000lm
IP Class
IP40
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ik10
  • ip40
  • klasse_3
  • tw
  • ce

Tools

Downloads

Specification sheet 212699 Mounting instruction Sense 600x600 TW_User Manual CE Declaration Sense Opalprism TW Relux file (rolf) 7021982126994_Sense_TW_625x625_White_Opalprism_3690lm_(@2700K)_2700-6500K_Ra80 Relux file (rolf) 7021982126994_Sense_TW_625x625_White_Opalprism_3960lm_(@6500K)_2700-6500K_Ra80 Eulumdat file (ldt) 7021982126994_Sense TW 625x625 White Opalprism 3690lm (@2700K) 2700-6500K Ra80 Eulumdat file (ldt) 7021982126994_Sense TW 625x625 White Opalprism 3960lm (@6500K) 2700-6500K Ra80 Dialux file (uld) 7021982126994_Sense TW 625x625 White Opalprism 3690lm (@2700K) 2700-6500K Ra80 Dialux file (uld) 7021982126994_Sense TW 625x625 White Opalprism 3960lm (@6500K) 2700-6500K Ra80 ENEC Certificate Sense Opalprism TW

How to specify

Text copied to clipboard

Sense TW 625x625 White Opalprism 4000lm 2700-6500K Ra>80, Article code: 212699, EAN: 7021982126994, IP40, IK10, Light technic: Type of light source: LED, Luminous flux: 4000lm, Colour temperature: 2700-6500K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Opalprism, Protection: Luminaire class: Class III, IK Class: IK10, IP Class: IP40, Energy and approvals: Contains light source of energy class: E, Materials and finish: Housing: Aluminium, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Module: 625x625 Exposed T-carrier, Connection: Quick connector, Dimensions: Length (mm) L: 622, Width (mm) W: 622, Height (mm) H: 12, Weight (kg) gross/net: 3.7 / 3.1, Packaging: Packaging dimensions (mm): 730 x 645 x 38

Light technic

Type of light source
LED
Luminous flux
4000lm
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000

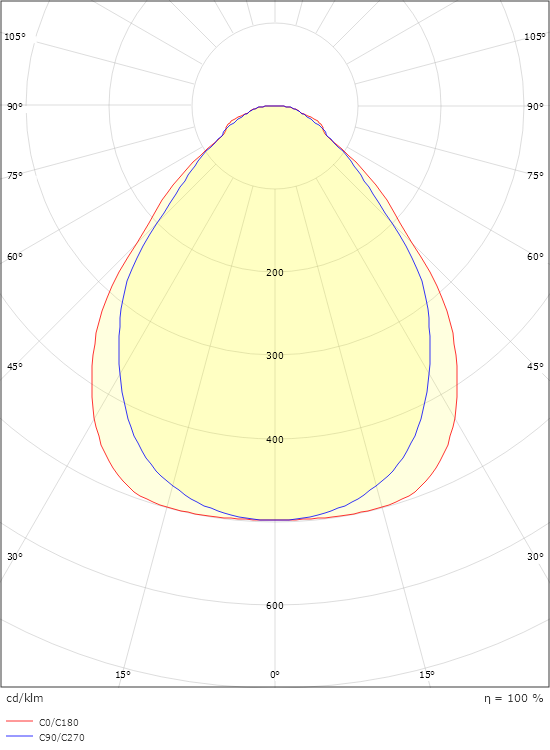

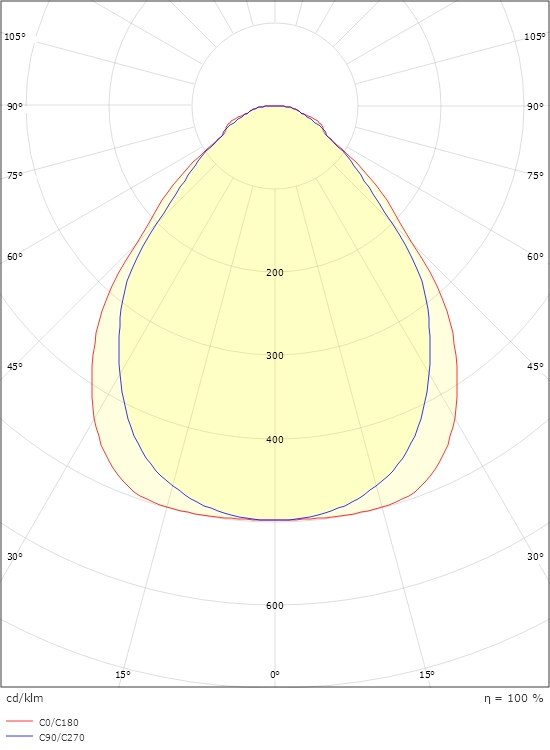

Light distribution
Direct
Optic
Opalprism

Protection

Luminaire class
Class III
IK Class
IK10
IP Class
IP40

Energy and approvals

Contains light source of energy class
E

Materials and finish

Housing
Aluminium
Colour
White
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Module
625x625 Exposed T-carrier
Connection
Quick connector

Dimensions

Length (mm) L
622
Width (mm) W
622
Height (mm) H
12
Weight (kg) gross/net
3.7 / 3.1

Packaging

Packaging dimensions (mm)
730 x 645 x 38
