Switch, surface

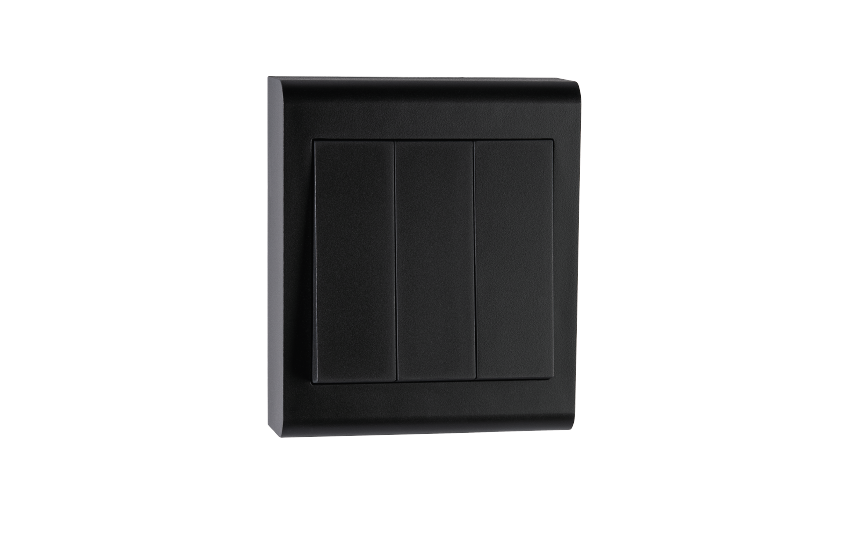

Switch surface Black 1+1+1

Article code
76551
EAN
7021987655116
Back to articlelist

Overview

IP Class
IP21
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip21
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 76551 Mounting instruction Switch_User Manual EPD NEPD-7744-7122_Switch CE Declaration CE251020C_Swithes NO Revit file - Generic Surface mounted Switch 1+1+1 - generic Revit file - Face Based Surface mounted Switch 1+1+1 - face based

How to specify

Text copied to clipboard

Switch surface Black 1+1+1, Article code: 76551, EAN: 7021987655116, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Switching current for fluorescent lamps: 10A, Protection: IP Class: IP21, Materials and finish: Housing: Polycarbonat (PC), Colour: Black (RAL 9004), Halogen free: Yes, Mounting/Connection: Extra blind connectors: two 2x2,5 mm², Frame: complete, Mounting: Surface, Indoor, Dimensions: Length (mm) L: 71, Width (mm) W: 84, Height (mm) H: 24, Weight (kg) gross/net: 0.086 / 0.073, Packaging: Packaging dimensions (mm): 71 x 84 x 24, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A
Switching current for fluorescent lamps
10A

Protection

IP Class
IP21

Materials and finish

Housing
Polycarbonat (PC)
Colour
Black (RAL 9004)
Halogen free
Yes

Mounting/Connection

Extra blind connectors
two 2x2,5 mm²
Frame
complete
Mounting
Surface, Indoor

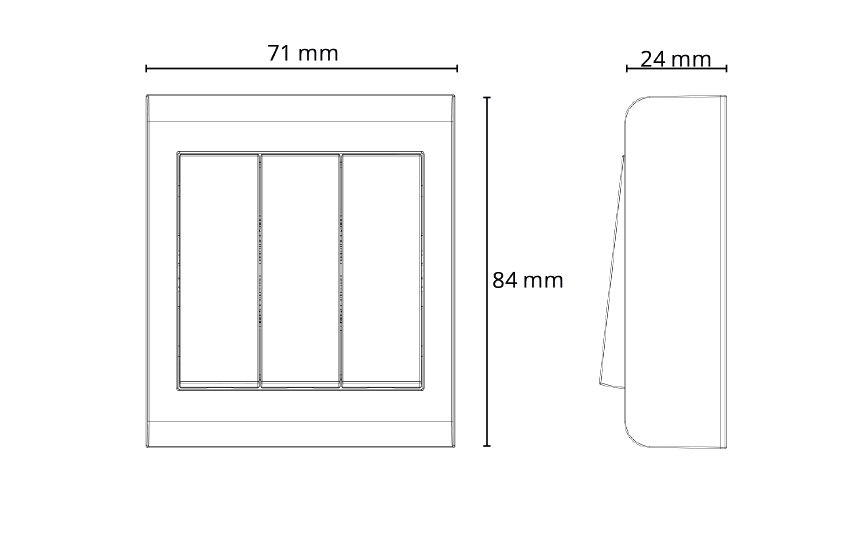

Dimensions

Length (mm) L
71
Width (mm) W
84
Height (mm) H
24
Weight (kg) gross/net
0.086 / 0.073

Packaging

Packaging dimensions (mm)
71 x 84 x 24
Number per pack
6
