Switch, surface

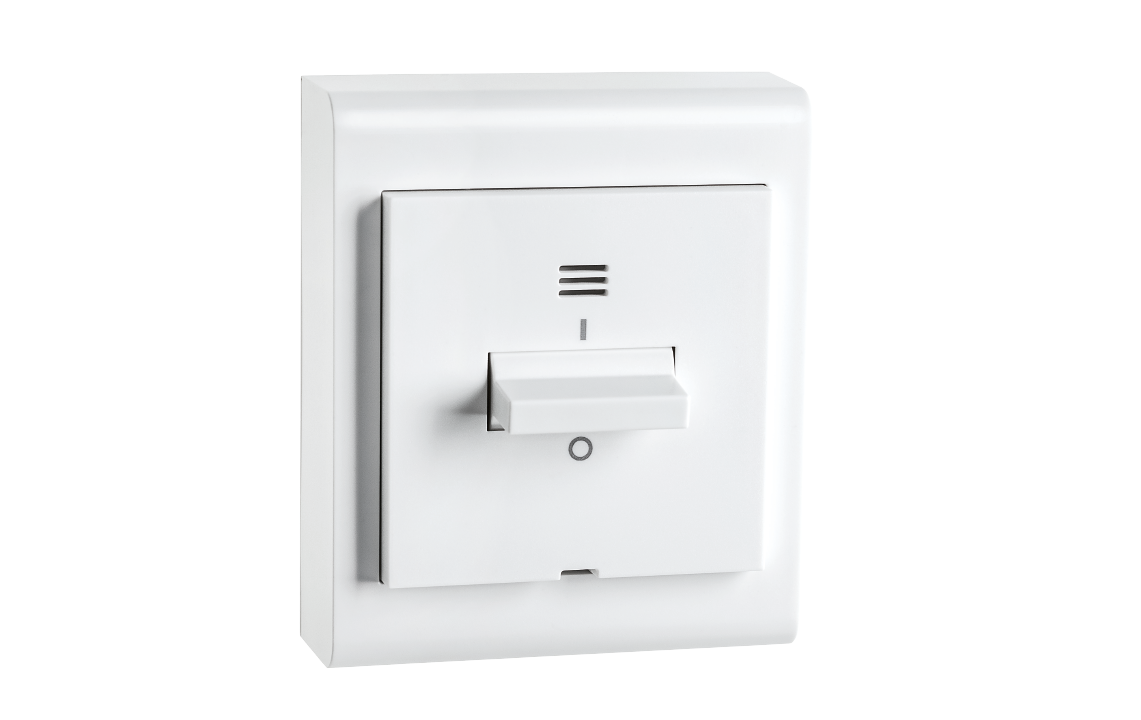

Switch surface 2-pole White w/light

Article code
76710
EAN
7021987671017
Back to articlelist

Overview

IP Class
IP21
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip21
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 76710 Mounting instruction Switch with light_User Manual EPD NEPD-7744-7122_Switch

How to specify

Text copied to clipboard

Switch surface 2-pole White w/light, Article code: 76710, EAN: 7021987671017, IP21, Electrical: Voltage: 250V, Protection: IP Class: IP21, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Mounting: Surface, Indoor, Module: 2-pole, Dimensions: Length (mm) L: 84, Width (mm) W: 71, Height (mm) H: 45, Weight (kg) gross/net: 0.099 / 0.077, Packaging: Packaging dimensions (mm): 71 x 84 x 29, Number per pack: 6

Electrical

Voltage
250V

Protection

IP Class
IP21

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Mounting
Surface, Indoor
Module
2-pole

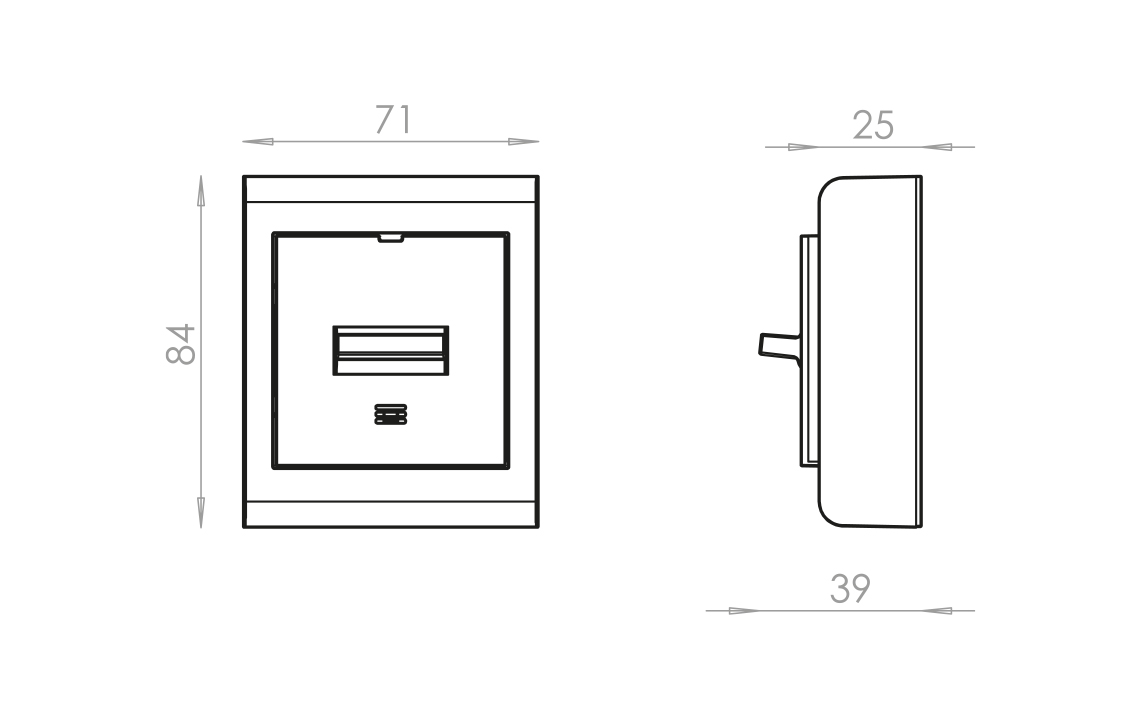

Dimensions

Length (mm) L
84
Width (mm) W
71
Height (mm) H
45
Weight (kg) gross/net
0.099 / 0.077

Packaging

Packaging dimensions (mm)
71 x 84 x 29
Number per pack
6
