LEDDim Smart Pill

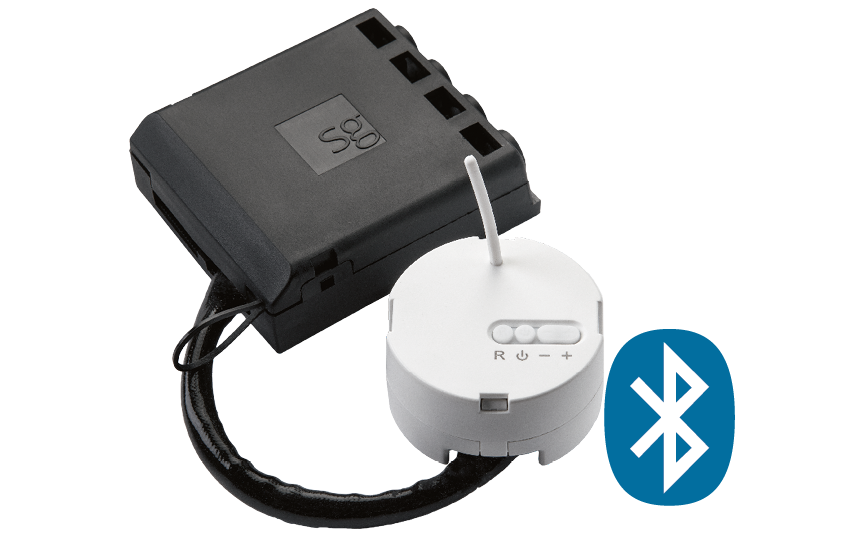

LEDDim Smart Pill White 200VA

Article code
820336
EAN
7021988203361
Back to articlelist

Overview

Wattage
200VA
IP Class
IP20
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip20
  • ce

Tools

Downloads

Specification sheet 820336 Mounting instruction LEDDim smart pill_user manual CE Declaration LEDDim Smart Pill

How to specify

Text copied to clipboard

LEDDim Smart Pill White 200VA, Article code: 820336, EAN: 7021988203361, IP20, Electrical: Wattage: 200VA, Standby power: 0.50W, Voltage: 220-240V, Overvoltage protection: Yes, Overload protection: Yes, Minium dim level is adjustable: Yes, Control/Dimming: Type: Trailing edge, Protection: IP Class: IP20, Materials and finish: Housing: Polycarbonat (PC), Mounting/Connection: Mounting: Recessed, Indoor, Dimensions: Height (mm) H: 26, Diameter (mm) D: 48, Weight (kg) gross/net: 0.135 / 0.132, Packaging: Packaging dimensions (mm): 90 x 90 x 77

Electrical

Wattage
200VA
Standby power
0.50W
Voltage
220-240V
Overvoltage protection
Yes
Overload protection
Yes
Minium dim level is adjustable
Yes

Control/Dimming

Type
Trailing edge

Protection

IP Class
IP20

Materials and finish

Housing
Polycarbonat (PC)

Mounting/Connection

Mounting
Recessed, Indoor

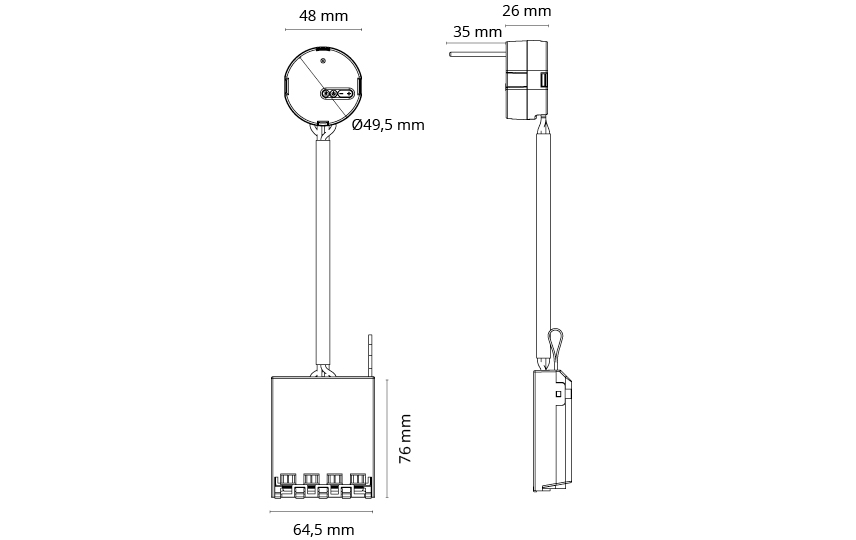

Dimensions

Height (mm) H
26
Diameter (mm) D
48
Weight (kg) gross/net
0.135 / 0.132

Packaging

Packaging dimensions (mm)
90 x 90 x 77
