Callisto Bollard

Callisto Pole Black 110lm 3000K Ra>80 Trailing edge

Article code
914005
EAN
7021989140054
Back to articlelist

Overview

Efficacy
37 lm/W
Lumen
110lm
IP Class
IP44
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L70/B50>
Mounting
Pole, wall, bollard or earthing rod, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ip44
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 914005 Mounting instruction Callisto Pole Mounting instructions CE Declaration Callisto Pole Relux file (rolf) 7021989140054_Callisto_Pole_Black_110lm_3000K_Ra_80_Trailing_edge_dimming Eulumdat file (ldt) 7021989140054_Callisto Pole Black 110lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021989140054_Callisto Pole Black 110lm 3000K Ra80 Trailing edge dimming Revit file - Generic Callisto Pullert - Generic Revit file - Face Based Callisto Pullert - face based

How to specify

Text copied to clipboard

Callisto Pole Black 110lm 3000K Ra>80 Trailing edge, Article code: 914005, EAN: 7021989140054, IP44, Electrical: System wattage: 3W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 115, B16: 184, C10: 134, C16: 215, Light technic: Type of light source: LED, Luminous flux: 110lm, Efficacy: 37 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B50>50,000, Light distribution: Direct/Asymmetric, Optic: Glass Clear, Beam angle: 65°/85°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IP Class: IP44, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: Tempered glass, Mounting/Connection: Mounting: Pole, wall, bollard or earthing rod, Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 180, Height (mm) H: 600, Depth (D): 100, Weight (kg) gross/net: 2.28 / 1.9, Packaging: Packaging dimensions (mm): 615 x 188 x 108

Electrical

System wattage
3W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 115, B16: 184, C10: 134, C16: 215

Light technic

Type of light source
LED
Luminous flux
110lm
Efficacy
37 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B50>50,000

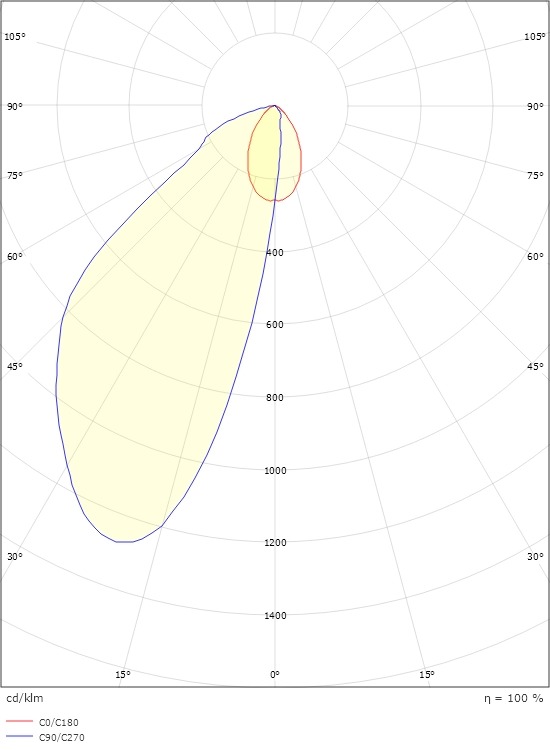

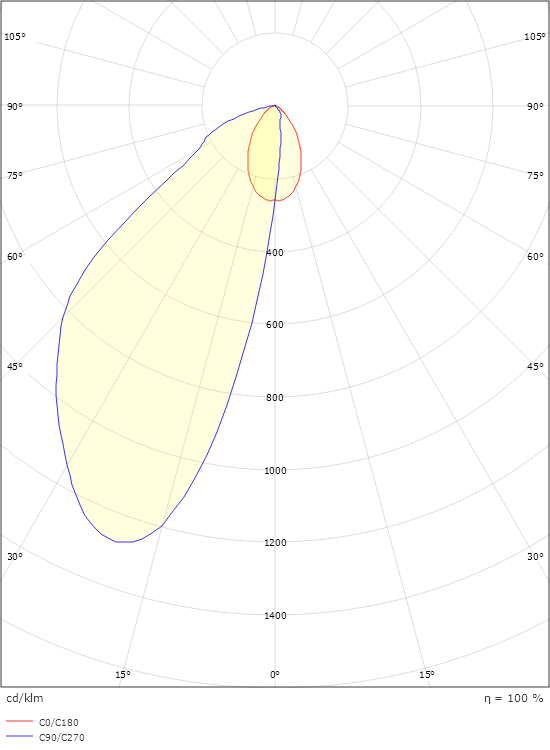

Light distribution
Direct/Asymmetric
Optic
Glass Clear
Beam angle
65°/85°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IP Class
IP44

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
Tempered glass

Mounting/Connection

Mounting
Pole, wall, bollard or earthing rod, Outdoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
180
Height (mm) H
600
Depth (D)
100
Weight (kg) gross/net
2.28 / 1.9

Packaging

Packaging dimensions (mm)
615 x 188 x 108
