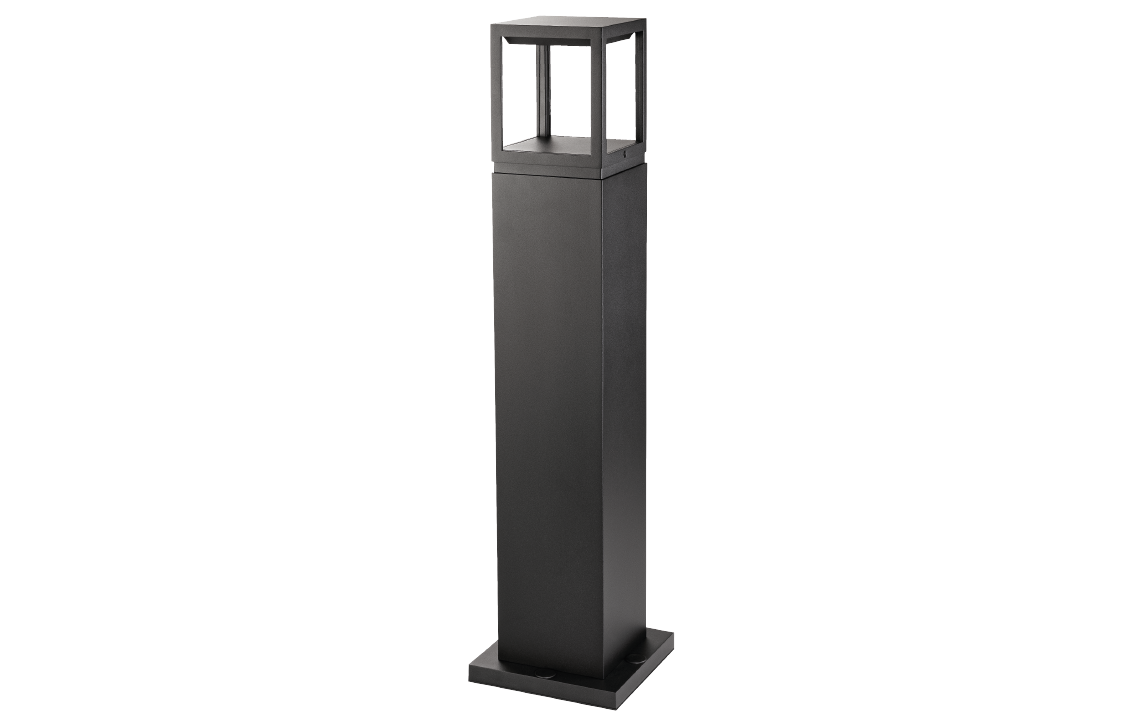

Fagernes Bollard
Fagernes Bollard Black 270lm 2700K Ra>80 Trailing edge
- Article code
- 630064
- EAN
- 7021986300642
Overview
- Efficacy
- 30 lm/W
- Lumen
- 270lm
- IP Class
- IP44
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B50>
- Mounting
- Onto surfaces or ground anchor, Outdoor
Electrical
- System wattage
- 9W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 120, B16: 200, C10: 120, C16: 200
Light technic
- Type of light source
- LED
- Luminous flux
- 270lm
- Efficacy
- 30 lm/W
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L70/B50>100,000
- Lifetime
- L90/B10>50,000

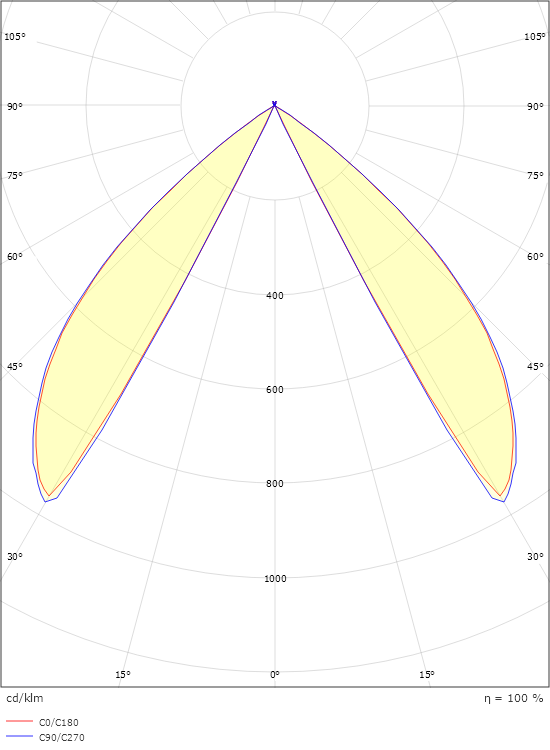

- Light distribution
- Indirect
- Beam angle
- 94,2°
- Visible flicker (PstLM)
- 0.05
- Stroboscopic flicker (SVM)
- 0.14
- ULOR (<1%)
- Yes
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class II
- IK Class
- IK08
- IP Class
- IP44
Energy and approvals
- Contains light source of energy class
- G
Materials and finish
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
Mounting/Connection
- Mounting
- Onto surfaces or ground anchor, Outdoor
- Connection
- Screwless terminal block
Dimensions
- Length (mm) L
- 200
- Width (mm) W
- 200
- Height (mm) H
- 800
- Weight (kg) gross/net
- 7.5 / 7.3
Packaging
- Packaging dimensions (mm)
- 820 x 210 x 210
