Opus
Opus Graphite R 320lm/330lm/610lm/640lm 3000/4000K Ra>80 Trailing edge
- Article code
- 623742
- EAN
- 7021986237429
Overview
- Wattage
- 9W/18W
- Efficacy
- 36/37/34/36lm/w
- Lumen
- 320lm/330lm/610lm/640lm
- IP Class
- IP65
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B50>
- Mounting
- Onto surfaces or ground anchor, Outdoor
Tools
Downloads
Specification sheet
623742
pdf
(Opens in new tab)
Mounting instruction
Opus, Opus R_User Manual
pdf
(Opens in new tab)
CE Declaration
Opus
pdf
(Opens in new tab)
Relux file (rolf)
7021986237429_Opus_R_1100_Graphite_580lm_3000K_Ra_80_Trailing_edge_dimming
rolf
Eulumdat file (ldt)
7021986237429_Opus R 1100 Graphite 580lm 3000K Ra80 Trailing edge dimming
ldt
Dialux file (uld)
7021986237429_Opus R 1100 Graphite 580lm 3000K Ra80 Trailing edge dimming
uld
Revit file - Generic
Opus R - Generic
rfa
Revit file - Face Based
Opus R - fase based
rfa
Electrical
- Wattage
- 9W/18W
- Voltage
- 220-240V
Light technic
- Type of light source
- LED
- Luminous flux
- 320lm/330lm/610lm/640lm
- Efficacy
- 36/37/34/36lm/w
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L70/B50>50,000

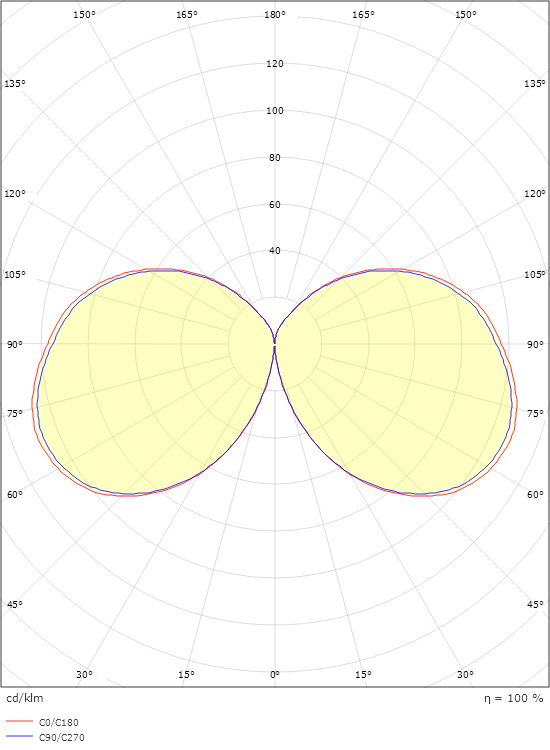

- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 360°
- Photobiological safety
- RG 0
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class II
- IK Class
- IK10
- IP Class
- IP65
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
Mounting/Connection
- Mounting
- Onto surfaces or ground anchor, Outdoor
- Connection
- Screwless terminal block
Dimensions
- Height (mm) H
- 396
- Diameter (mm) D
- 216
- Weight (kg) gross/net
- 4.236 / 3.95
Packaging
- Packaging dimensions (mm)
- 230 x 230 x 410
