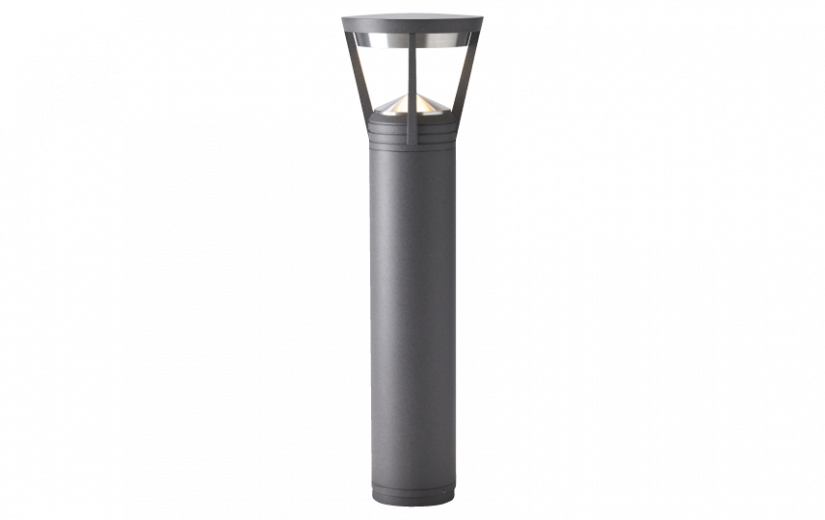

Ray Bollard II

Design: Christian Hvidt. Ray Bollard II is designed as a long-term solution for paths, parks or landscapes, and combines energy savings, durability and precise light distribution that gives safe, glare-free environments. Simple design blends in with all surroundings. The light is directed where it is needed without glare and without light pollution. IK10 vandal-resistant and IP54.

Article list

Ray Bollard II

Outdoor Onto surfaces or ground anchor SDCM: 4 Class II IK10 IP54 Ra>70

Filters

Version

System wattage

Lumen

						Others	Tools
8246094377	Symmetric	3000K	6W	590lm	On/Off	98 lm/W, Ø260 x H900, L80/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094380	Asymmetric	3000K	6W	490lm	On/Off	82 lm/W, Ø260 x H900, L80/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095075	Symmetric	3000K	26W	2180lm	On/Off	84 lm/W, Ø260 x H900, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095088	Asymmetric	3000K	24W	1990lm	On/Off	83 lm/W, Ø260 x H900, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

						Others	Tools
8246094377	Symmetric	3000K	6W	590lm	On/Off	98 lm/W, Ø260 x H900, L80/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094380	Asymmetric	3000K	6W	490lm	On/Off	82 lm/W, Ø260 x H900, L80/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095075	Symmetric	3000K	26W	2180lm	On/Off	84 lm/W, Ø260 x H900, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246095088	Asymmetric	3000K	24W	1990lm	On/Off	83 lm/W, Ø260 x H900, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

Accessories

Image	Article code	Description	Dimensions	Tools
	8249042067	Ground anchor Steel	L248 x W108 x H450	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
	8249042070	Ground anchor f/"Cetong" Steel	Ø155 x H450	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
