Metro

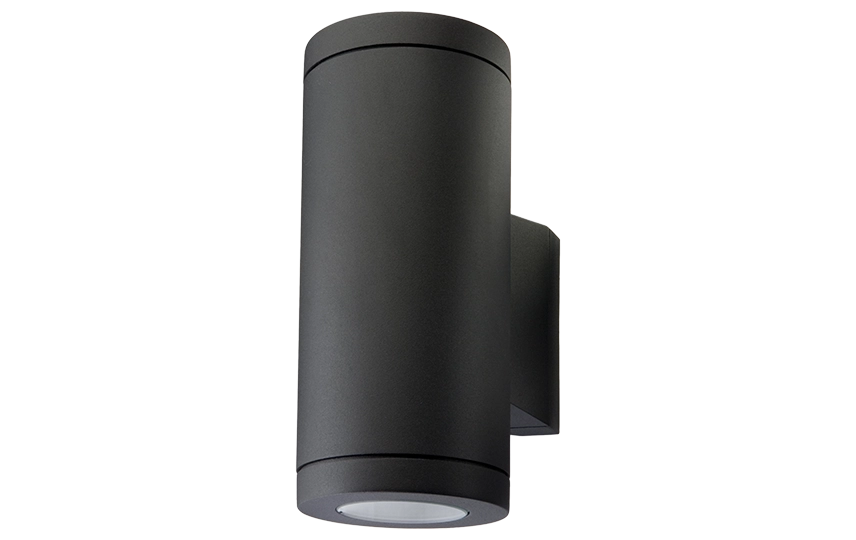

Metro Black 360lm 2700K Ra>80 Trailing edge

Article code
614693
EAN
7021986146936
Back to articlelist

Overview

Wattage
2x4,5W
Efficacy
40 lm/W
Lumen
360lm
IP Class
IP65
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
Lifetime
40,000 L70/B50>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik07
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 614693 Revit file - Generic Metro 9W - generic Revit file - Face Based Metro 9W - face based

See more

Eulumdat file (ldt) 7021986146936_Metro Black 360lm 2700K Ra80 Trailing edge dimming Dialux file (uld) 7021986146936_Metro Black 360lm 2700K Ra80 Trailing edge dimming Relux file (rolf) 7021986146936_Metro_Black_360lm_2700K_Ra_80_Trailing_edge_dimming Mounting instruction Metro_User manual CE Declaration Metro

How to specify

Text copied to clipboard

Metro Black 360lm 2700K Ra>80 Trailing edge, Article code: 614693, EAN: 7021986146936, IP65, IK07, Electrical: Wattage: 2x4,5W, System wattage: 9W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 360lm, Efficacy: 40 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 4, Lifetime: L70/B50>40,000, Light distribution: Direct, Optic: Glass Clear, Beam angle: 35°/35°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK07, IP Class: IP65, Energy and approvals: Contains light source of energy class: G, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C+, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 160, Width (mm) W: 90, Height (mm) H: 215, Depth (D): 147, Weight (kg) gross/net: 1.476 / 1.223, Packaging: Packaging dimensions (mm): 230 x 155 x 100

Electrical

Wattage
2x4,5W
System wattage
9W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
360lm
Efficacy
40 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 4
Lifetime
L70/B50>40,000
Light distribution
Direct
Optic
Glass Clear
Beam angle
35°/35°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK07
IP Class
IP65

Energy and approvals

Contains light source of energy class
G
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C+

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
160
Width (mm) W
90
Height (mm) H
215
Depth (D)
147
Weight (kg) gross/net
1.476 / 1.223

Packaging

Packaging dimensions (mm)
230 x 155 x 100
