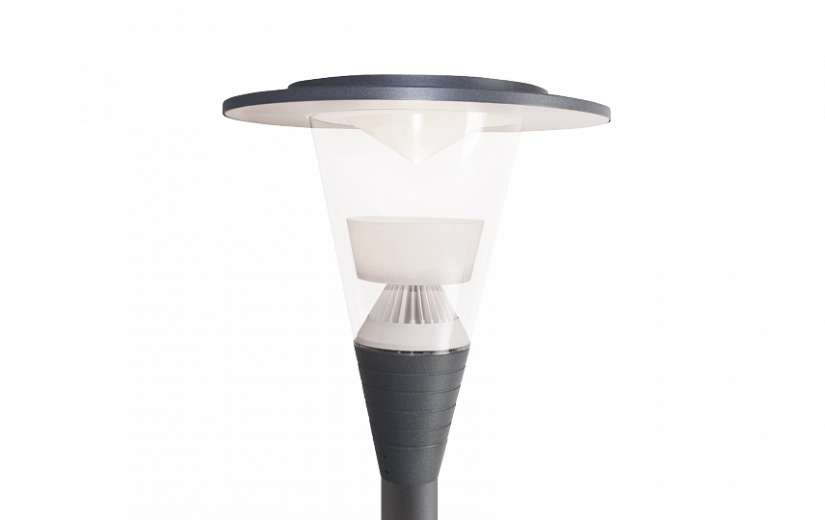

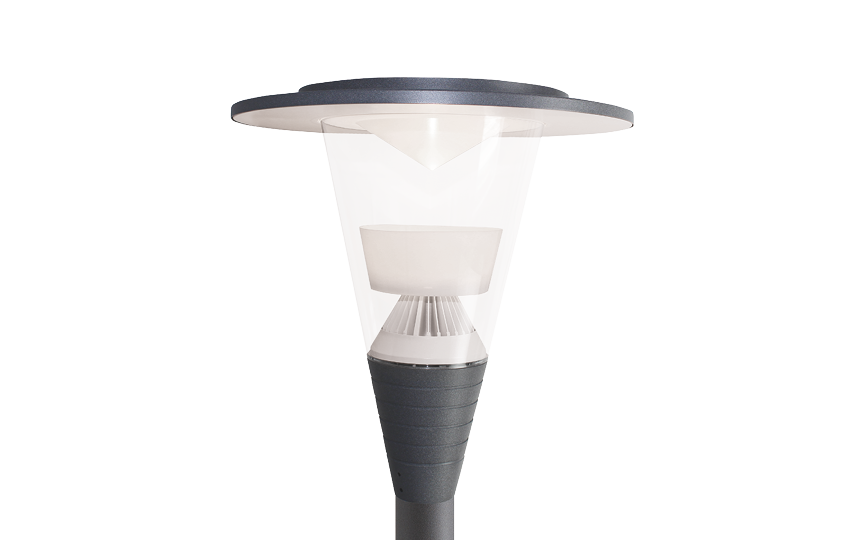

Ray 680
Design: Christian Hvidt. . Light for mounting on mast or wall lamp (680mm in diameter) is IP65-rated. Luminaire body, wall bracket and top made of die-cast aluminium, reflector and truncated cone made of polycarbonate. Powder-coated dark grey luminaire body, wall bracket and top. Reflector, inside of cone and top in special reflector-white colour.Reflector and optics are particularly well suited to giving a direct, direct/indirect, indirect or direct/asymmetrical light distribution via a clear or opal truncated cone. Complete with connection for operation of LED light sources mounted to component rail with connector system and pre-mounted with five-metre connection cable. Lamp head prepared for mounting on 60 mm or 108 mm mast. Electrical safety class II.
Article list
Ray 680
Filters
| Others | Tools | |||||||
|---|---|---|---|---|---|---|---|---|
| 3000K | 24W | 2990lm | On/Off | Class I |
|
|||
| 3000K | 24W | 2990lm | On/Off | Class II |
|
|||
| 4000K | 17W | 2240lm | On/Off | Class II |
|
Grey
This article is produced by order, with an expected delivery time of 3-4 weeks
Sorry, we couldn’t find what you are looking for.
| Others | Tools | |||||||
|---|---|---|---|---|---|---|---|---|
| 3000K | 24W | 2990lm | On/Off | Class I |
|
|||
| 3000K | 24W | 2990lm | On/Off | Class II |
|
|||
| 4000K | 17W | 2240lm | On/Off | Class II |
|
This article is produced by order, with an expected delivery time of 3-4 weeks
Sorry, we couldn’t find what you are looking for.
Accessories
| Image | Article code | Description | Dimensions | Tools |
|---|---|---|---|---|
| Galvanized Pole 3m Steel | ||||
| Galvanized Pole 4m Steel | ||||
| Galvanized Conical Pole 3m Steel | ||||
| Galvanized Conical Pole 4m Steel | ||||
| Galvanized Pole 3m Steel | ||||
| Galvanized Pole 4m Steel | ||||
| Galvanized Ground anchor Steel | ||||

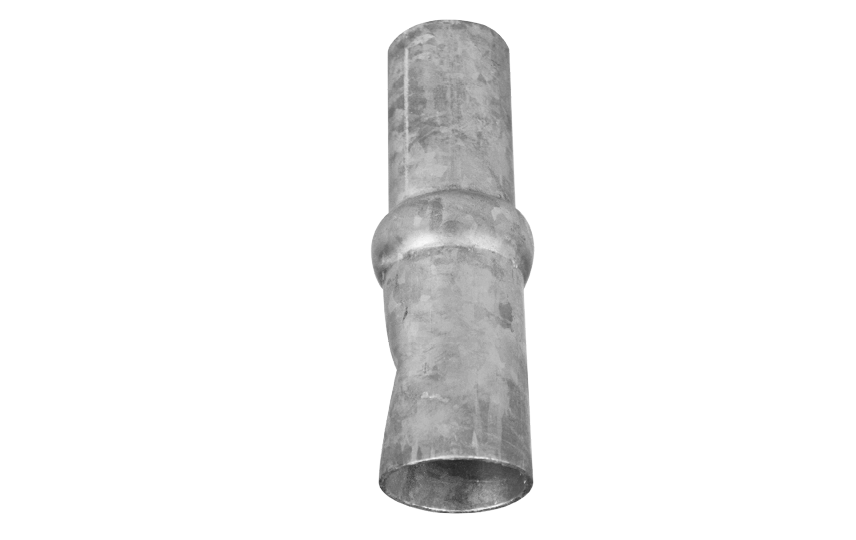

| Galvanized Reducer part from Ø76 to Ø60 Steel | L230 x W98 x H230 | |||

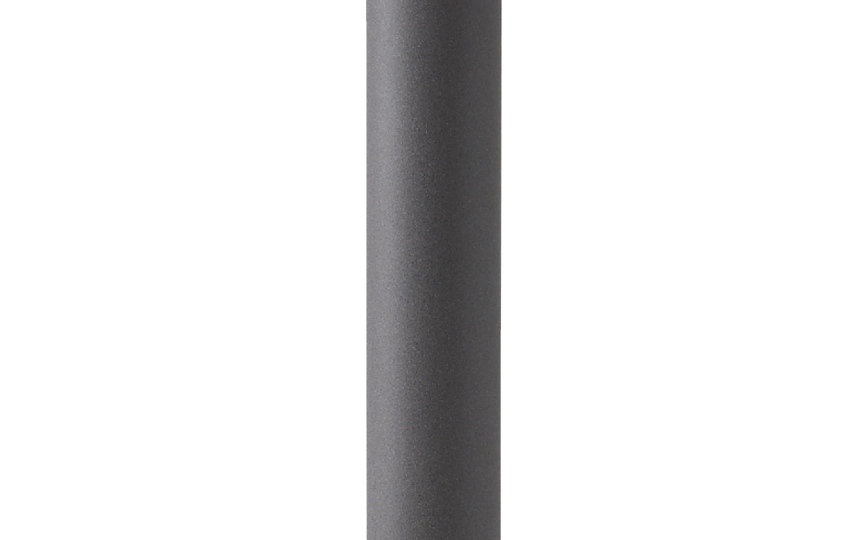

| Grey Design pole 3m Steel | ||||
| Grey Design pole 4m Steel | ||||

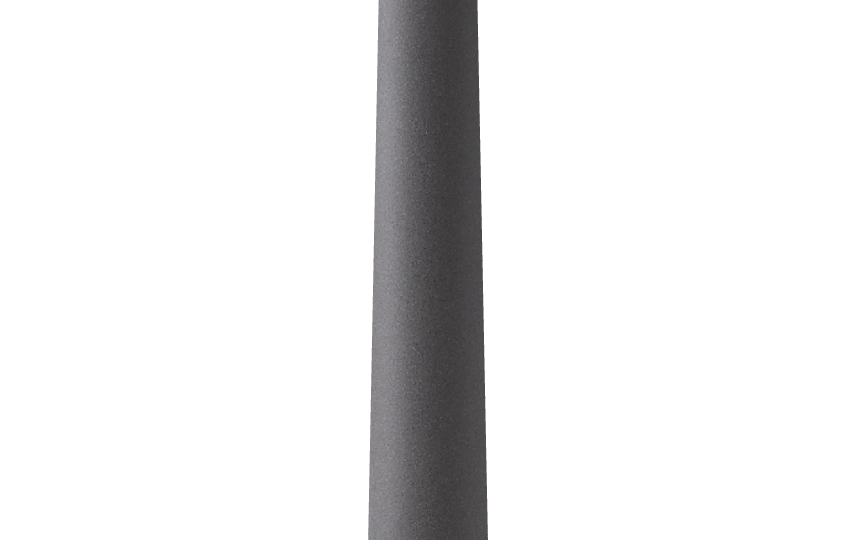

| Grey Conical Pole 4m Steel | ||||
| Ray 680 Design Cone Grey Design cone Die-cast aluminium | L100 | |||
| Mounting unit | ||||
| Ray 680 D/I LED Diffuser foil Polycarbonat (PC) |
This article is produced by order, with an expected delivery time of 3-4 weeks
Sorry, we couldn’t find what you are looking for.
