Edge

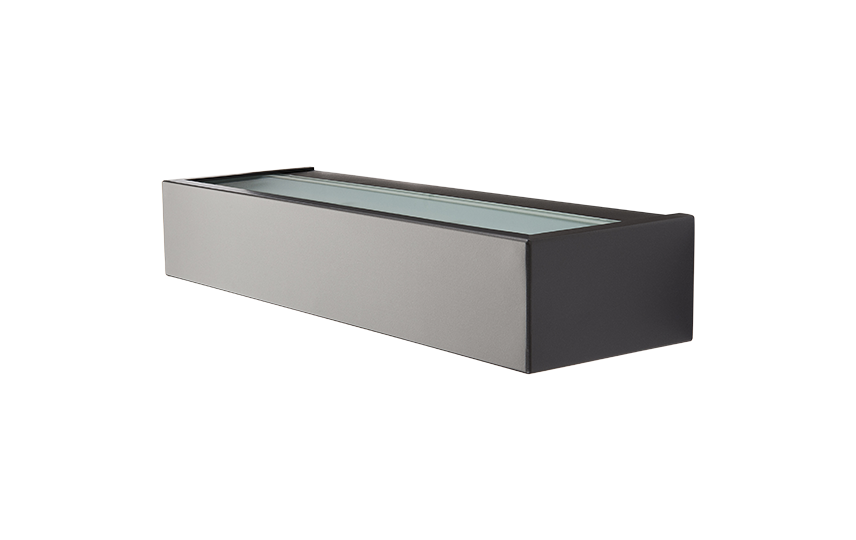

Edge Graphite 560lm 2700K Ra>80 Trailing edge
- Article code
- 623350
- EAN
- 7021986233506
Overview
- Efficacy
- 80 lm/W
- Lumen
- 560lm
- IP Class
- IP65
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor / Outdoor
Tools
Downloads
Specification sheet
623350
pdf
(Opens in new tab)
Mounting instruction
Edge Mounting instructions
pdf
(Opens in new tab)
CE Declaration
Edge
pdf
(Opens in new tab)
Relux file (rolf)
7021986233506_Edge_Graphite_560lm_2700K_Ra_80_Trailing_edge_dimming
rolf
Eulumdat file (ldt)
7021986233506_Edge Graphite 560lm 2700K Ra80 Trailing edge dimming
ldt
Dialux file (uld)
7021986233506_Edge Graphite 560lm 2700K Ra80 Trailing edge dimming
uld
Revit file - Generic
Edge - Generic
rfa
Revit file - Face Based
Edge - face based
rfa
Electrical
- System wattage
- 7W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
Light technic
- Type of light source
- LED
- Luminous flux
- 560lm
- Efficacy
- 80 lm/W
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L90/B10>50,000
- Lifetime
- L80/B10>100,000

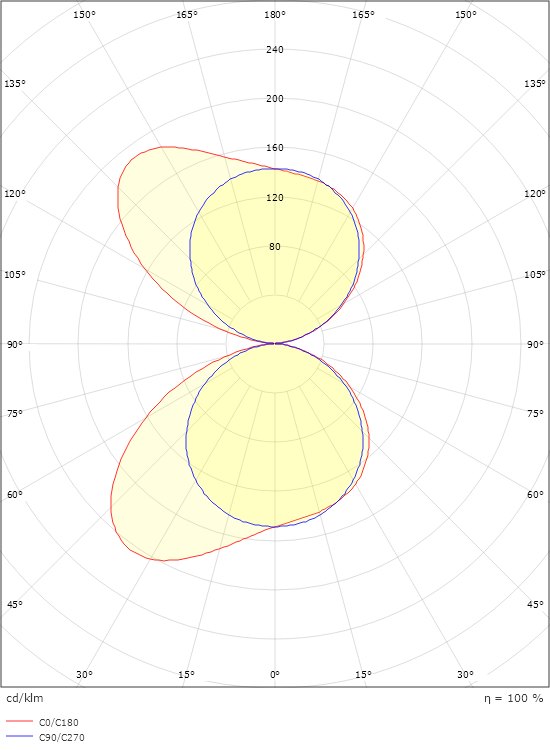

- Light distribution
- Direct/Indirect
- Optic
- Glass Clear
- Beam angle
- 110°/110°
- Photobiological safety
- RG 0
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class I
- IK Class
- IK06
- IP Class
- IP65
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- BVB
- Yes
- Sunda Hus
- C-
Materials and finish
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Surface, Indoor / Outdoor
- Connection
- Screwless terminal block

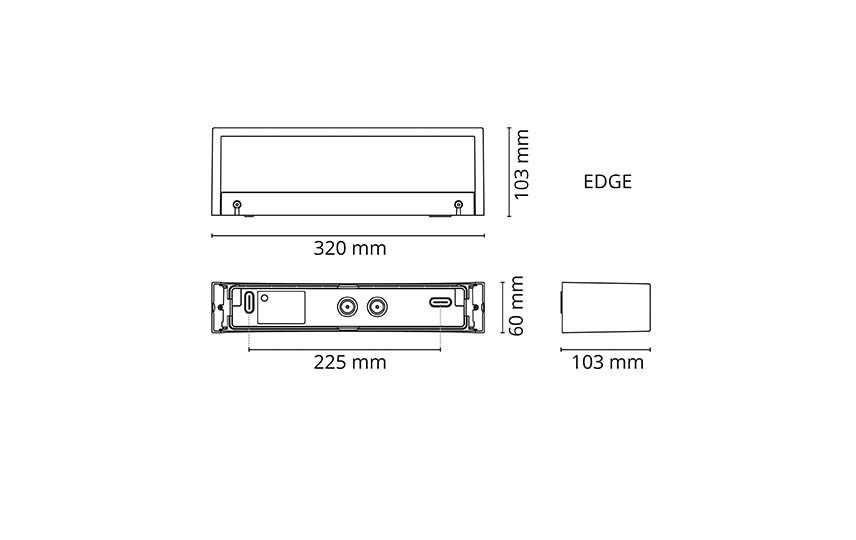

Dimensions
- Width (mm) W
- 320
- Height (mm) H
- 60
- Depth (D)
- 103
- Weight (kg) gross/net
- 2.04 / 1.7
Packaging
- Packaging dimensions (mm)
- 330 x 120 x 70
