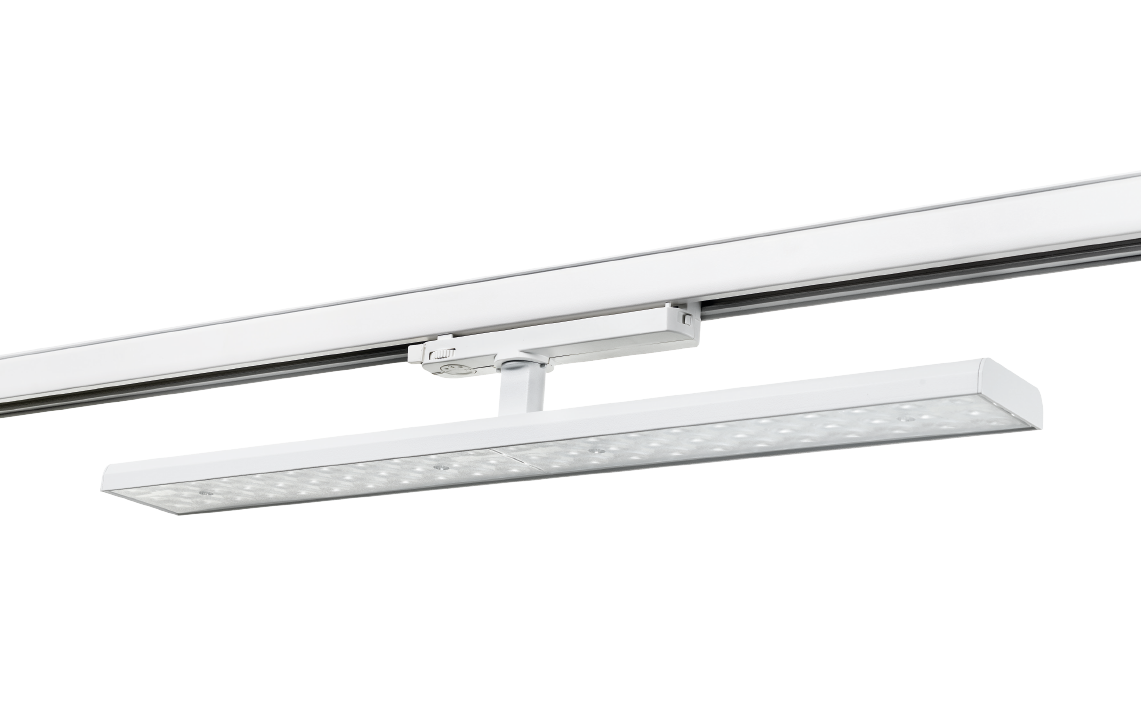

Arena 600 3-T
Arena 600 3-T White Medium 3690lm 3000K Ra>90 DALI-2
Article code:
607041
EAN:
7021986070415
Download
Electrical
System wattage:
26W
Voltage:
220-240V
Frequency (Hz):
50/60Hz
Max. luminaires per circuit breaker:
B10: 32, B16: 50, C10: 52, C16: 85
Light technic
Type of light source:
LED
Luminous flux:
3690lm
Efficacy:
142 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>90
MacAdams factor:
SDCM: 3
Lifetime:
L90/B10>100,000

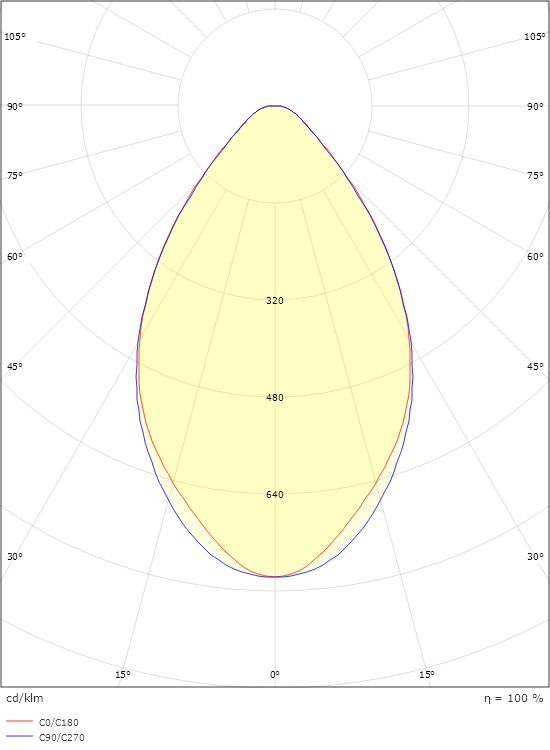

Light distribution:
Direct
Beam angle:
60°
UGR:
UGR<25
Visible flicker (PstLM):
0.06
Stroboscopic flicker (SVM):
0
Control/Dimming
Type:
DALI-2
Driver:
750mA
Protection
Luminaire class:
Class II SELV
IP Class:
IP20
Energy and approvals
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Aluminium
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Surface, Indoor
Connection:
ShopLine DALI track (adapter included)
Dimensions
Length (mm) L:
583
Width (mm) W:
69
Height (mm) H:
69
Weight (kg) gross/net:
1.14 / 0.925
Packaging
Packing dimensions (mm):
600 x 85 x 120
