Basic
Basic White 8030lm 3000K Ra>80 Emergency 3H
Article code:
8246087575
EAN:
5703821168434
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
46W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 15, B16: 24, C10: 25, C16: 41
Light technic
Type of light source:
LED
Luminous flux:
8030lm
Emergency lumen:
EM 540 lm
Efficacy:
175 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B10>50,000
Minimum ambient temperature:
0°C

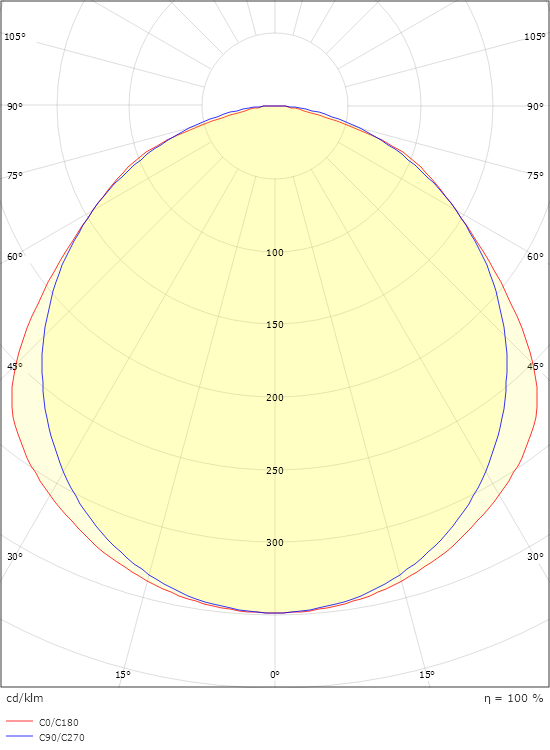

Light distribution:
Direct
Optic:
Opal optic

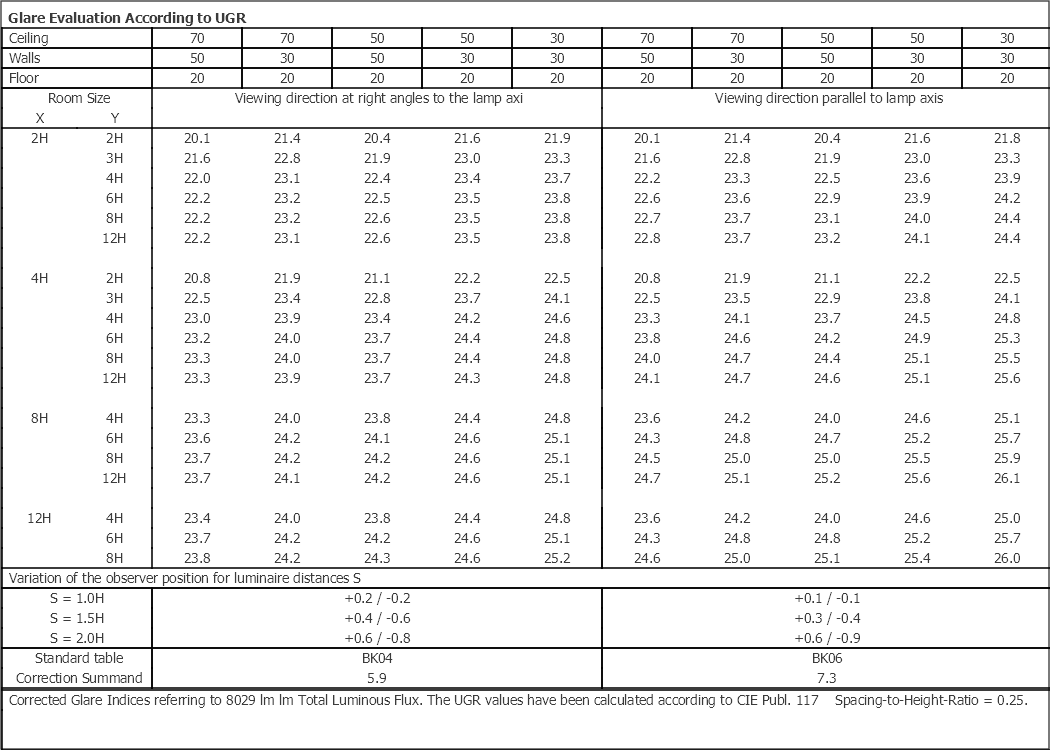

UGR:
UGR<25
Control/Dimming
Type:
Emergency 3H
Protection
Luminaire class:
Class I
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
D
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Sheet steel
Colour:
White (Pure white, 25% gloss)
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Surface, Indoor
Connection:
Screwless terminal block
Dimensions
Length (mm) L:
1530
Width (mm) W:
230
Height (mm) H:
85
Weight (kg) gross/net:
7.7 / 7.5
Packaging
Packing dimensions (mm):
1540 x 240 x 90
