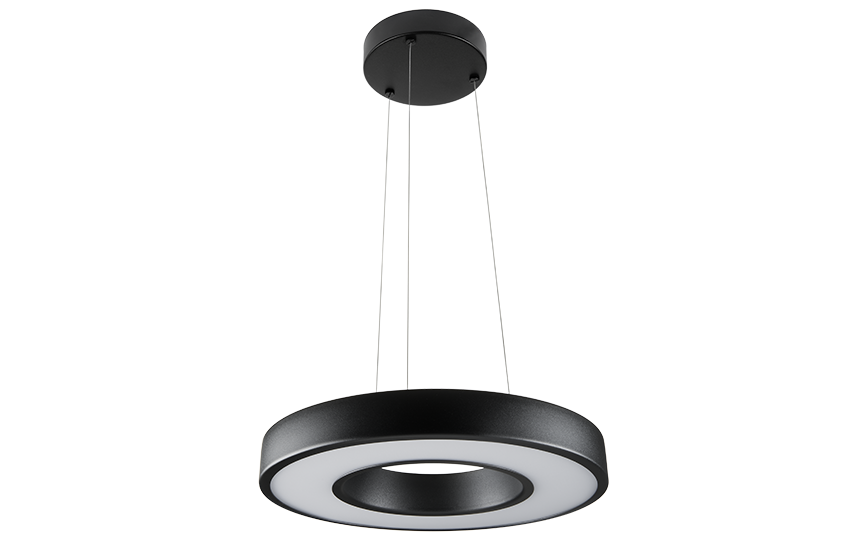

Circulus Pendant
Circulus Pendant Black 1345lm 3000K Ra>80 DALI-2 / Push Dim
Article code:
211008
EAN:
7021982110085
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
Wattage:
19W
System wattage:
18.7W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 31, B16: 50, C10: 52, C16: 85
Light technic
Type of light source:
LED
Luminous flux:
1345lm
Efficacy:
72 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B10>50,000
Lifetime:
L70/B50>100,000

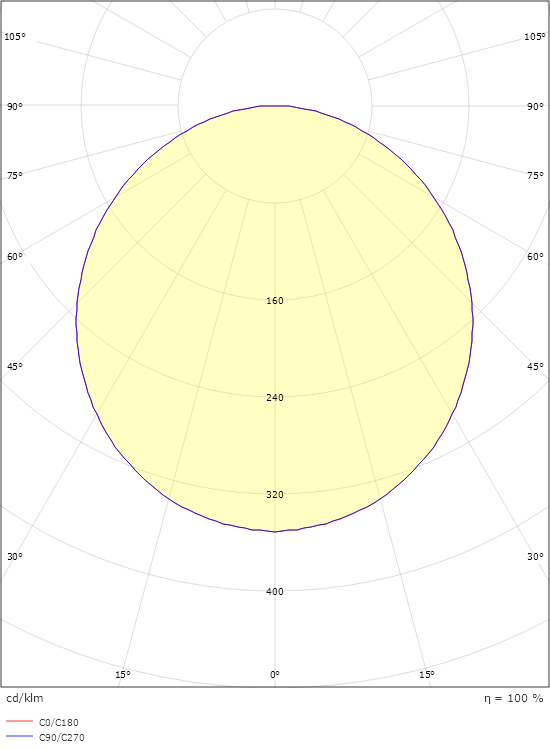

Light distribution:
Direct
Optic:
Opal
Beam angle:
110°
UGR:
UGR<25
Photobiological safety:
RG 0
Control/Dimming
Type:
DALI-2 / Push Dim
Protection
Luminaire class:
Class I
IP Class:
IP21
Energy and approvals
Contains light source of energy class:
B
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Steel
Colour:
Black (RAL 9004)
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Surface, Indoor
Connection:
Screwless terminal block
Dimensions
Height (mm) H:
45
Diameter (mm) D:
360
Weight (kg) gross/net:
2.5 / 2.5
Packaging
Packing dimensions (mm):
370 x 370 x 55
