Fenes Maxi
Fenes Maxi Lens 2 6350lm 3000K Ra>70 On/Off
Article code:
212775
EAN:
7021982127755
Download
Electrical
System wattage:
43W
Frequency (Hz):
50/60Hz
Max. luminaires per circuit breaker:
B10: 6, B16: 10, C10: 10, C16: 16
Light technic
Type of light source:
LED
Luminous flux:
6350lm
Efficacy:
148 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>70
MacAdams factor:
SDCM: 3
Lifetime:
L80/B20>100,000

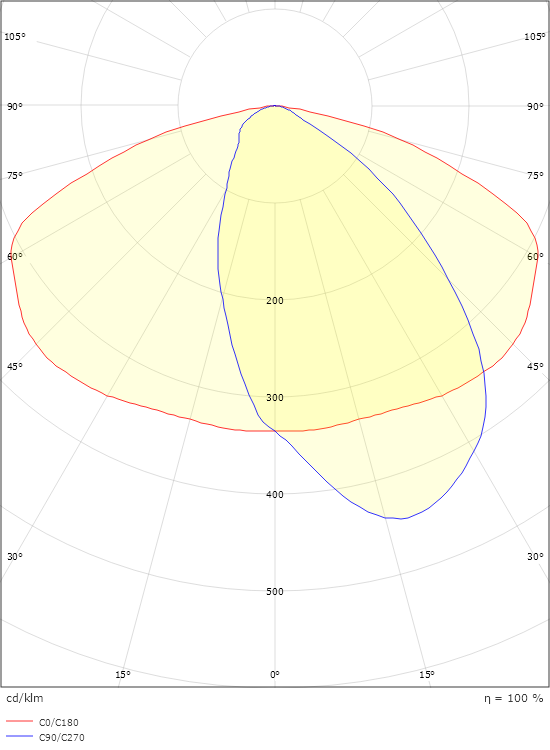

Light distribution:
Direct
Optic:
PMMA, Polymethylmethacrylat
ULOR (<1%):
Yes, up to 25° tilt angle
Control/Dimming
Type:
On/Off
Protection
Luminaire class:
Class II
IK Class:
IK08
IP Class:
IP66
Integrated surge protection:
6/10 kV
Energy and approvals
Contains light source of energy class:
C
Materials and finish
Housing:
Aluminium
Colour:
Grey RAL 7042
Optics:
Tempered glass
Mounting/Connection
Mounting:
Pole - Side Top (Ø42-48/Ø60), Outdoor
Module:
Lens 2
Cable:
Cable 2x1.0mm² 8m, H05RN-F
Dimensions
Length (mm) L:
432
Width (mm) W:
188
Height (mm) H:
145
Weight (kg) gross/net:
5.112 / 4.478
Packaging
Packing dimensions (mm):
530 x 190 x 105
