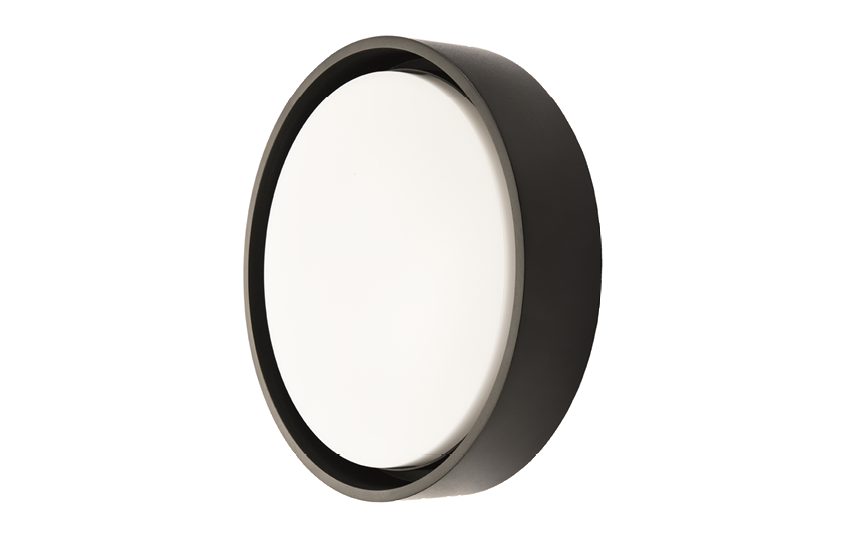

Frame Round Maxi
Frame Round Maxi Black 1990lm 3000K Ra>80 DALI-2
Article code:
605198
EAN:
7021986051988
Download
Electrical
System wattage:
19W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 31, B16: 50, C10: 52, C16: 85
Light technic
Type of light source:
LED
Luminous flux:
1990lm
Efficacy:
105 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L70/B20>100,000
Lifetime:
L80/B20>75.000

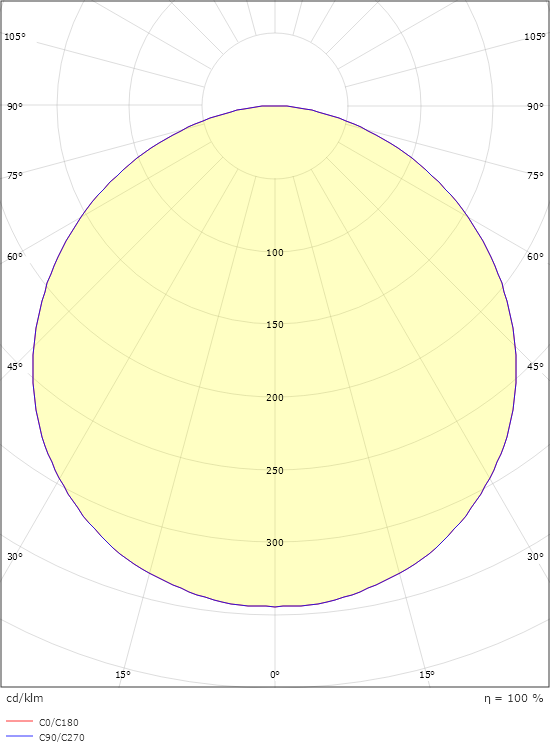

Light distribution:
Direct
Optic:
Opal
Beam angle:
110°
Photobiological safety:
RG 0
ULOR (<1%):
Yes, when ceiling mounted
Control/Dimming
Type:
DALI-2
Protection
Luminaire class:
Class II
IK Class:
IK10
IP Class:
IP66
Fire protection class:
850°C - 30s
Energy and approvals
Contains light source of energy class:
C
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Aluminium
Colour:
Black (RAL 9004)
Optics:
UV-stabilized polycarbonate
Mounting/Connection
Mounting:
Surface, Indoor / Outdoor
Connection:
Screwless terminal block
Dimensions
Height (mm) H:
77
Diameter (mm) D:
325
Weight (kg) gross/net:
3.1 / 2.7
Packaging
Packing dimensions (mm):
332 x 332 x 92
