Inspire S

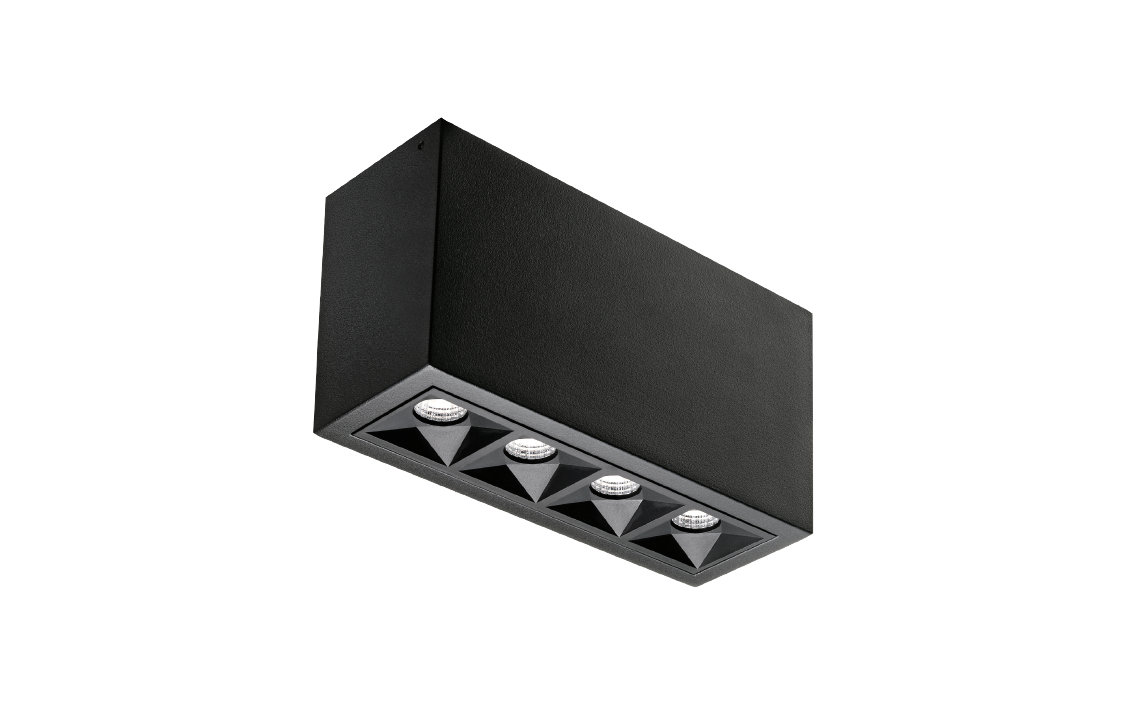

Inspire S 150 Black 470lm 3000K Ra 98 Trailing edge dimming
Article code:
320824
EAN:
7021983208248
Download
Electrical
System wattage:
8W
Voltage:
220-240V
Frequency (Hz):
50/60Hz
Max. luminaires per circuit breaker:
B10: 32, B16: 50, C10: 52, C16: 85
Light technic
Type of light source:
LED
Luminous flux:
470lm
Efficacy:
59 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra 98
MacAdams factor:
SDCM: 2
Lifetime:
L90/B10>100,000

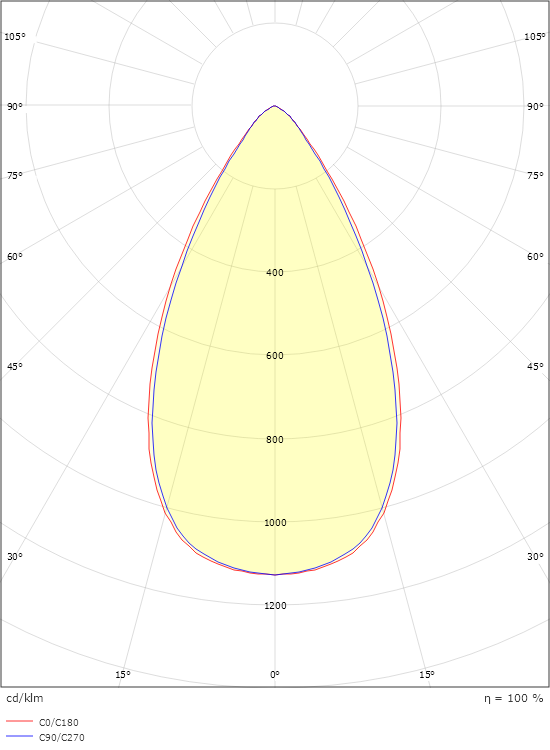

Light distribution:
Direct
Beam angle:
55°

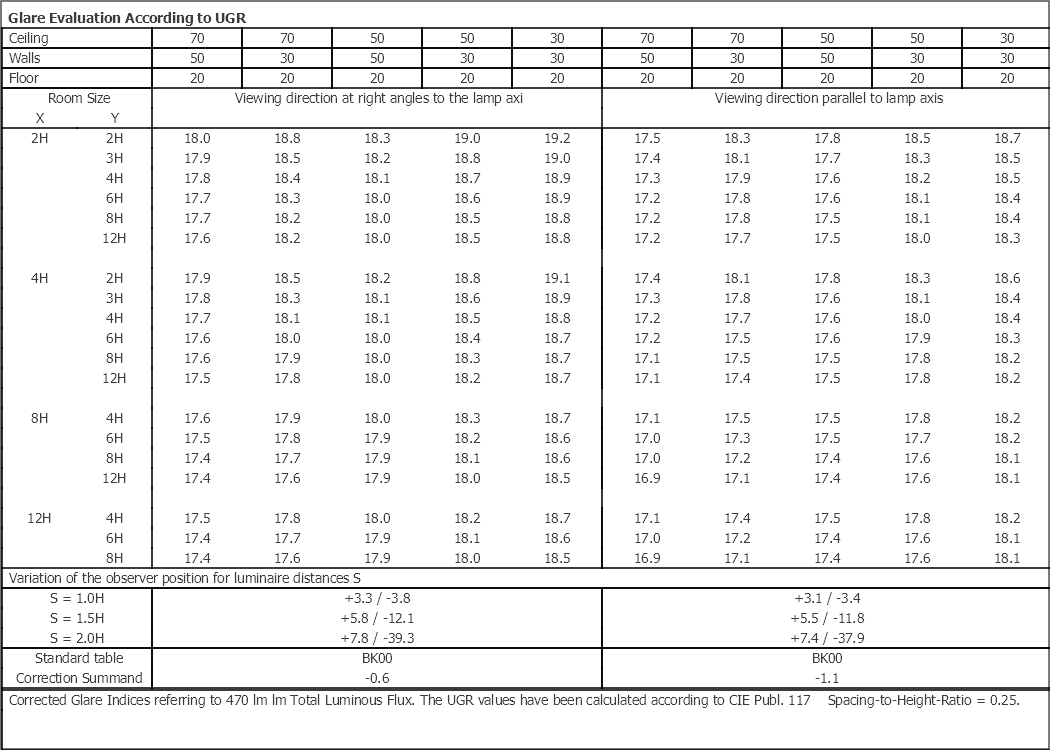

UGR:
UGR<19
Visible flicker (PstLM):
0.1
Stroboscopic flicker (SVM):
0.1
Control/Dimming
Type:
Trailing edge dimming
Driver:
200mA
Protection
Luminaire class:
Class I
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
E
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Aluminium
Colour:
Black (RAL 9004)
Mounting/Connection
Mounting:
Indoor
Module:
150
Connection:
Screwless terminal block

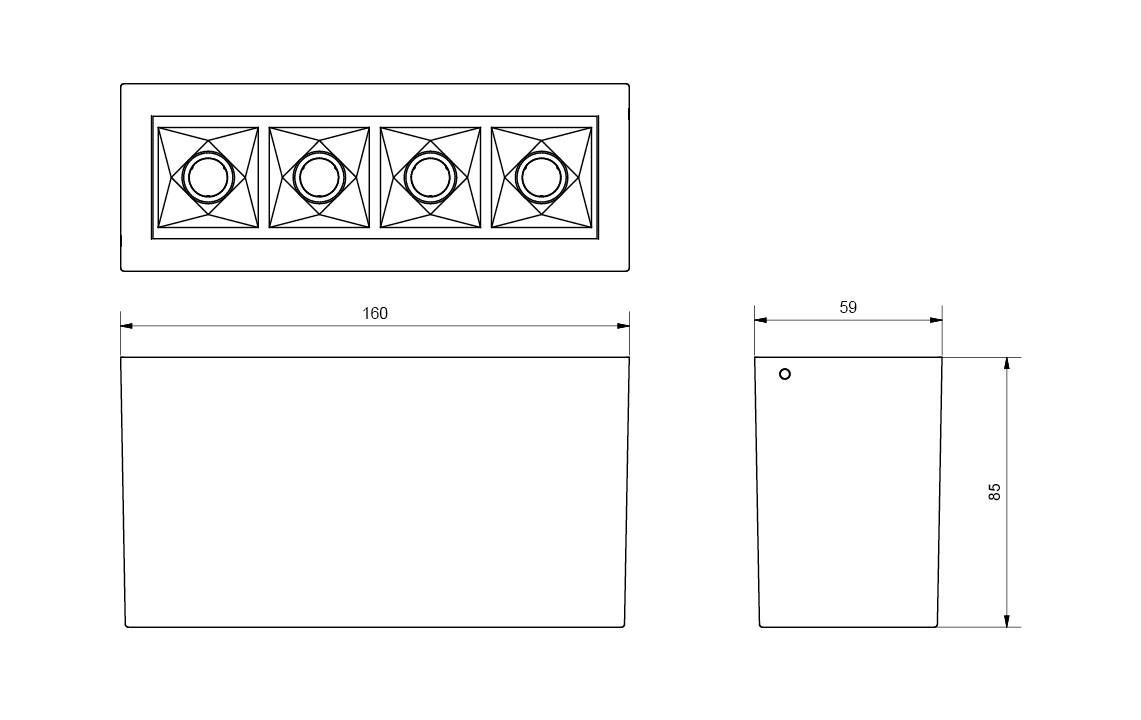

Dimensions
Length (mm) L:
160
Width (mm) W:
59
Height (mm) H:
85
Weight (kg) gross/net:
0.689 / 0.649
Packaging
Packing dimensions (mm):
169 x 93 x 69
