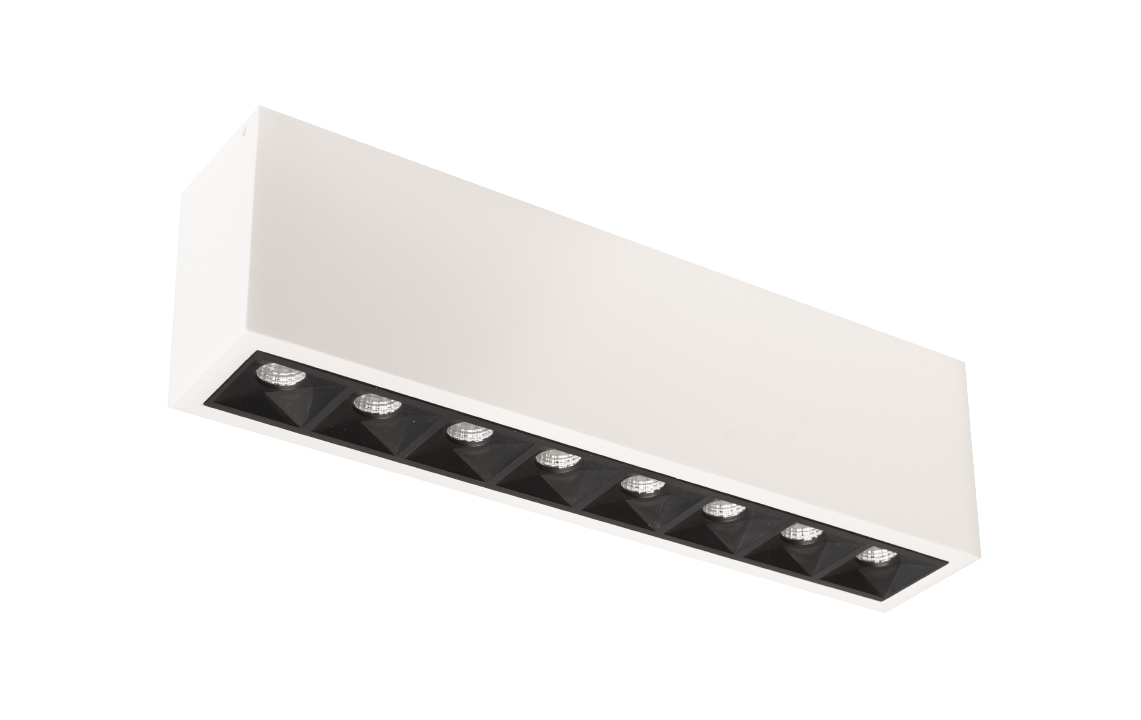

Inspire S
Inspire S 300 White 980lm 4000K Ra 98 Trailing edge dimming
Article code:
320828
EAN:
7021983208286
Download
Electrical
System wattage:
15W
Voltage:
220-240V
Frequency (Hz):
50/60Hz
Max. luminaires per circuit breaker:
B10: 32, B16: 50, C10: 52, C16: 85
Light technic
Type of light source:
LED
Luminous flux:
980lm
Efficacy:
65 lm/W
Colour temperature:
4000K
Colour rendering (CRI):
Ra 98
MacAdams factor:
SDCM: 2
Lifetime:
L90/B10>100,000

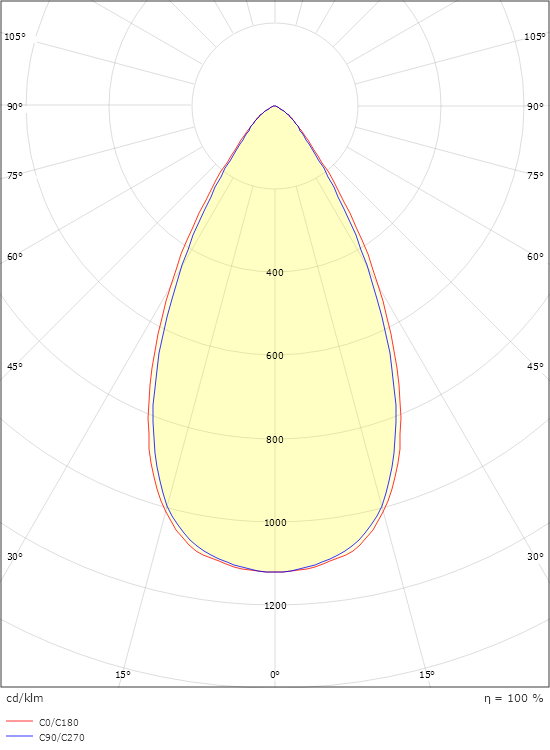

Light distribution:
Direct
Beam angle:
55°
Visible flicker (PstLM):
0.1
Stroboscopic flicker (SVM):
0.03
Control/Dimming
Type:
Trailing edge dimming
Driver:
400mA
Protection
Luminaire class:
Class I
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
E
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Aluminium
Colour:
White (RAL 9003)
Mounting/Connection
Mounting:
Indoor
Module:
300
Connection:
Screwless terminal block
Dimensions
Length (mm) L:
300
Width (mm) W:
59
Height (mm) H:
85
Weight (kg) gross/net:
1.089 / 0.988
Packaging
Packing dimensions (mm):
310 x 93 x 69
