Rax Surface 150
Rax Surface 150 White 1630lm 4000K Ra>80 DALI-2 / Push Dim
Article code:
8246081636
EAN:
5703821164061
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
14W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 100, B16: 160, C10: 160, C16: 256
Light technic
Type of light source:
LED
Luminous flux:
1630lm
Efficacy:
116 lm/W
Colour temperature:
4000K
Colour rendering (Ra):
Ra>80
MacAdams factor:
SDCM: 2
Lifetime:
L90/B10>50,000

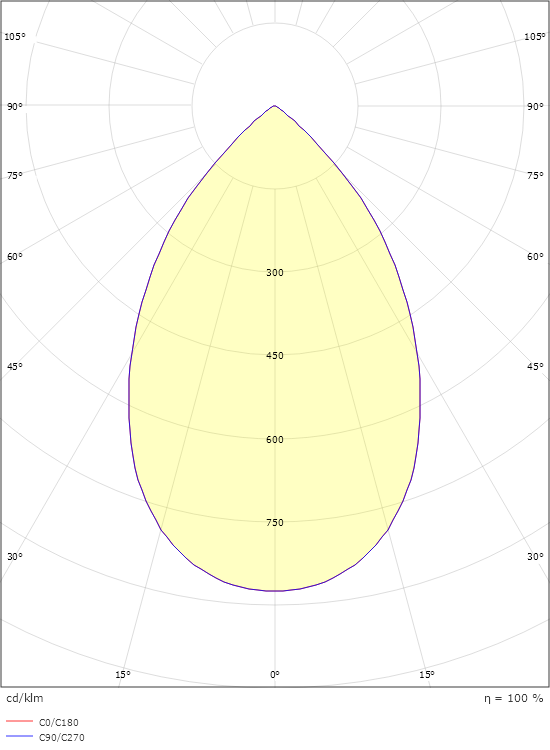

Light distribution:
Direct
Optic:
Satin Matt Reflector
Beam angle:
74°
UGR:
UGR<22
Photobiological safety:
RG 1
Control/Dimming
Type:
DALI-2 / Push Dim
Protection
Luminaire class:
Class I
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
D
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Spun aluminium
Colour:
White
Optics:
Aluminium
Mounting/Connection
Mounting:
Surface, Indoor
Dimensions
Height (mm) H:
203
Diameter (mm) D:
173
Cut-out (mm):
150
Weight (kg) gross/net:
1.3 / 1.1
Packaging
Packing dimensions (mm):
180 x 180 x 220
