Rax Soft 200
Rax Soft 200 Black 3000 3000K Ra>80 DALI-2 / Push Dim
Article code:
212565
EAN:
7021982125652
Download
Electrical
System wattage:
30W
Voltage:
220-240V
Frequency (Hz):
50/60Hz
Max. luminaires per circuit breaker:
B10: 32, B16: 50, C10: 52, C16: 85
Light technic
Type of light source:
LED
Luminous flux:
2970lm
Emergency lumen:
EM 320lm
Efficacy:
99 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 2
Lifetime:
L90/B10>100,000

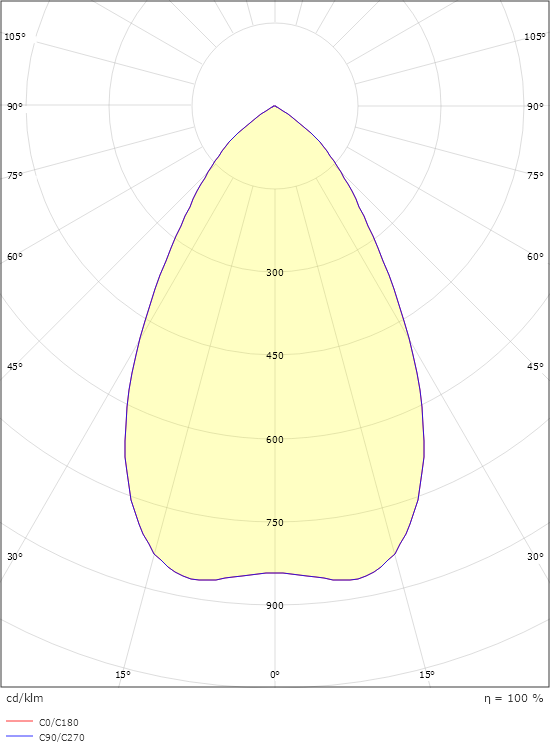

Light distribution:
Direct
Optic:
Black reflector
Beam angle:
63°
UGR:
UGR<22
Photobiological safety:
RG 1
Control/Dimming
Type:
DALI-2 / Push Dim
Protection
Luminaire class:
Class II SELV
IK Class:
IK08
IP Class:
IP44/IP20
Energy and approvals
Contains light source of energy class:
D
Breeam:
Fulfils Hea 01 for flicker free lighting
BVB:
Yes
Materials and finish
Housing:
Flame retardant polycarbonate
Colour:
Black
Optics:
Polycarbonat (PC)
Mounting/Connection
Mounting:
Recessed, Indoor
Cable:
Cable 5x0,75mm²
Connection:
5 pol Linect / screwless terminal block
Dimensions
Height (mm) H:
93
Diameter (mm) D:
216
Cut-out (mm):
200
Ceiling void depth (mm):
90
Weight (kg) gross/net:
1.2 / 1
Packaging
Packing dimensions (mm):
240 x 240 x 102
