Ray 680 D/I LED
Ray 680 D/I LED Grey 2990lm 3000K Ra>80 On/Off
Article code:
8246079389
EAN:
5703821162784
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
24W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 32, B16: 50, C10: 52, C16: 85
Light technic
Type of light source:
LED
Luminous flux:
2990lm
Efficacy:
125 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 2
Lifetime:
L90/B10>100,000

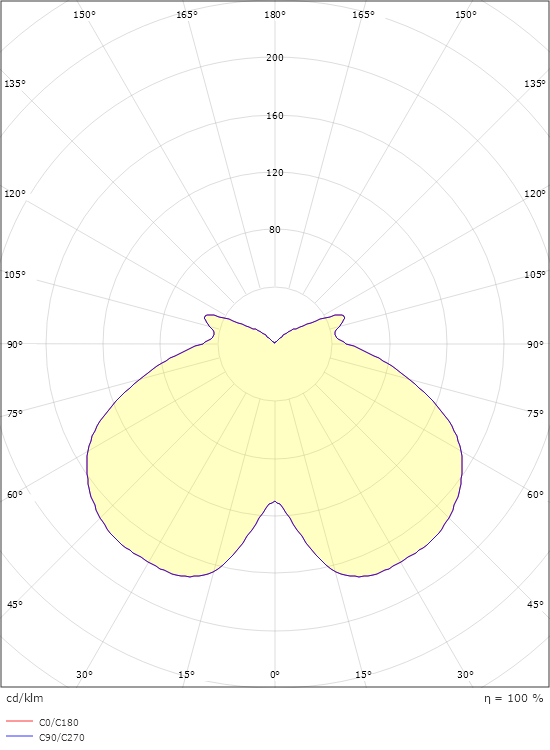

Light distribution:
Direct/Indirect 85/15%
Optic:
Opal
Control/Dimming
Type:
On/Off
Protection
Luminaire class:
Class II
IK Class:
IK10
IP Class:
IP65
Integrated surge protection:
Integrated (min. 4 kV)
Energy and approvals
Contains light source of energy class:
D
Materials and finish
Housing:
Die-cast aluminium
Colour:
Grey S/30
Optics:
Polycarbonat (PC)
Mounting/Connection
Mounting:
Post - top (Ø60mm), Outdoor
Cable:
Cable 2x1mm² 5,0m
Wind projected area:
0,1830m² - Max 8 kg
Dimensions
Height (mm) H:
703
Diameter (mm) D:
680
Weight (kg) gross/net:
12.4 / 12.2
Packaging
Packing dimensions (mm):
710 x 710 x 790
