Sense TW

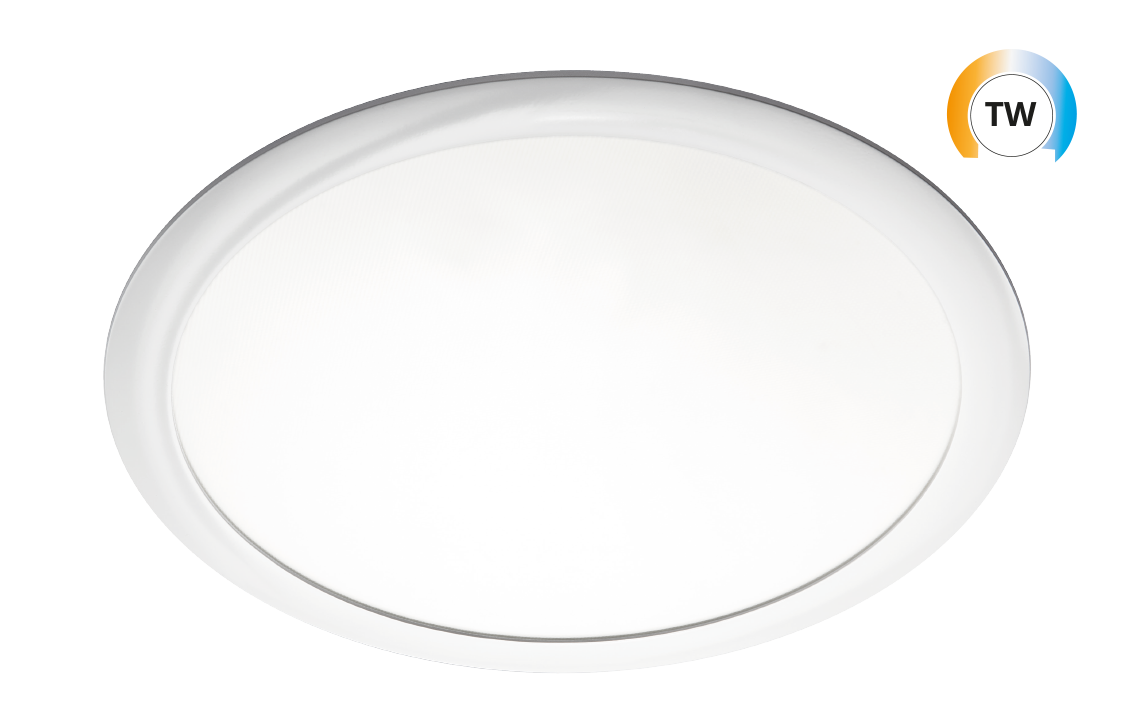

Sense TW White 495 3290lm 2700-6500K Ra>80 Tunable White DALI Type 8
Article code:
212306
EAN:
7021982123061
Download
Electrical
System wattage:
36W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 10, B16: 16, C10: 16, C16: 26
Light technic
Type of light source:
LED
Luminous flux:
3290lm
Efficacy:
91 lm/W
Colour temperature:
2700-6500K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B20>50,000
Lifetime:
L90>50,000

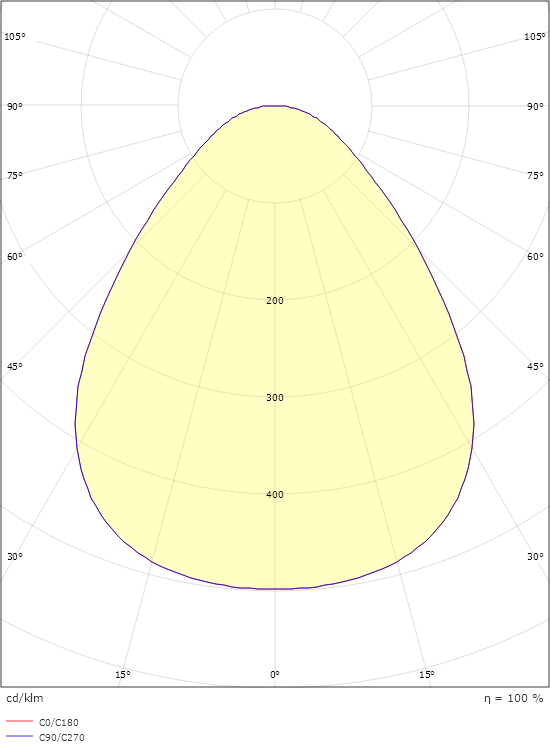

Light distribution:
Direct
Optic:
Opal

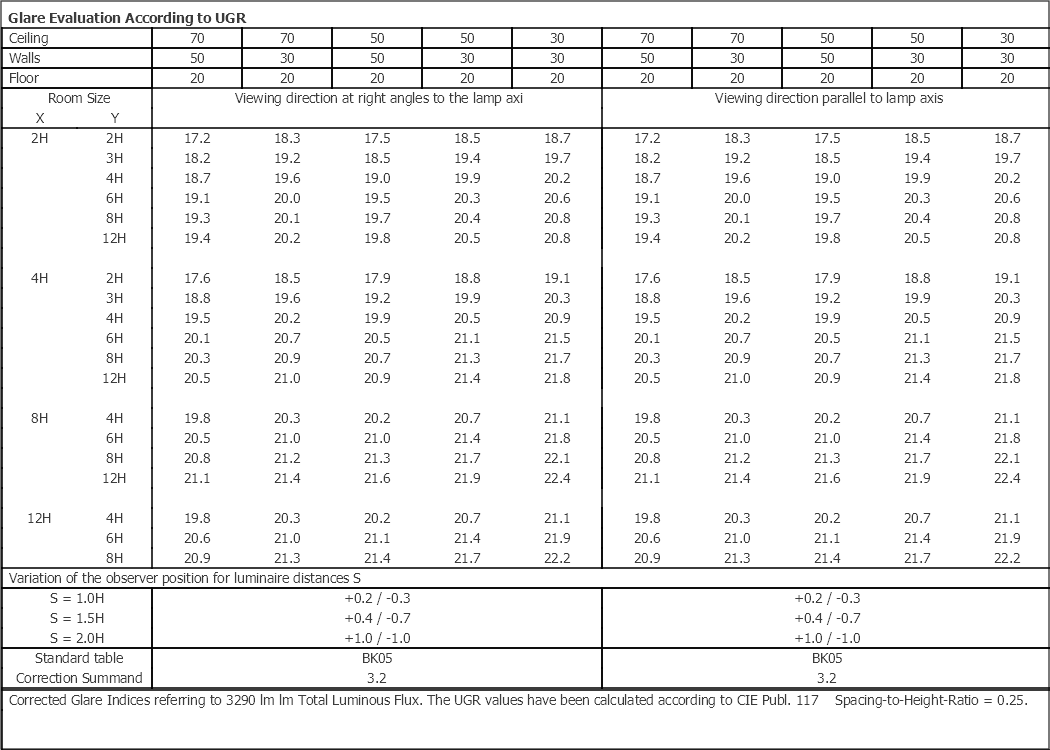

UGR:
UGR<22
Photobiological safety:
RG 0
Control/Dimming
Type:
Tunable White DALI Type 8
Protection
Luminaire class:
Class II SELV
IK Class:
IK08
IP Class:
IP40/IP20
Energy and approvals
Contains light source of energy class:
E
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Aluminium
Colour:
White smooth (Ral 9016 gloss 30)
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Recessed, Indoor
Dimensions
Height (mm) H:
29
Diameter (mm) D:
495
Cut-out (mm):
475
Ceiling void depth (mm):
29
Weight (kg) gross/net:
3.1 / 2.6
Packaging
Packing dimensions (mm):
505 x 505 x 65
