Spike

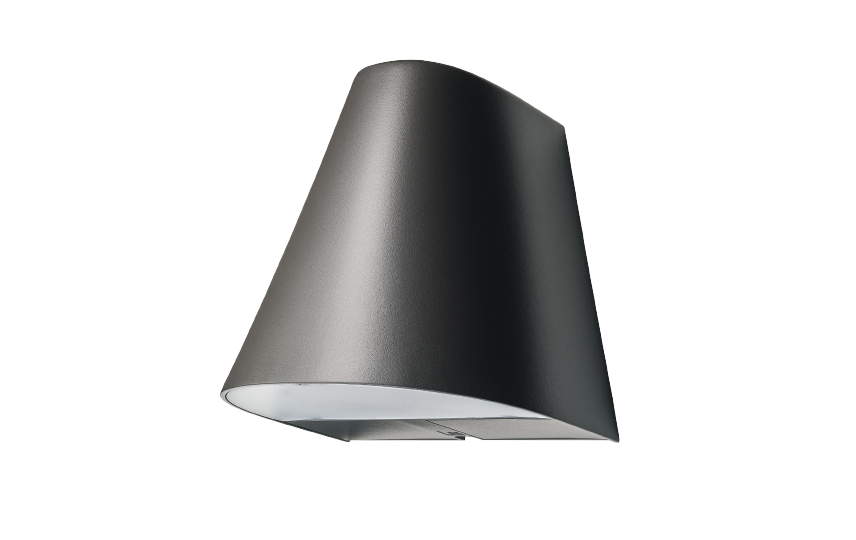

Spike Graphite 840lm 3000K Ra>80 Twilight
Article code:
623920
EAN:
7021986239201
Download
Electrical
System wattage:
11W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 33, B16: 52, C10: 40, C16: 64
Light technic
Type of light source:
LED
Luminous flux:
840lm
Efficacy:
76 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L70/B50>50,000

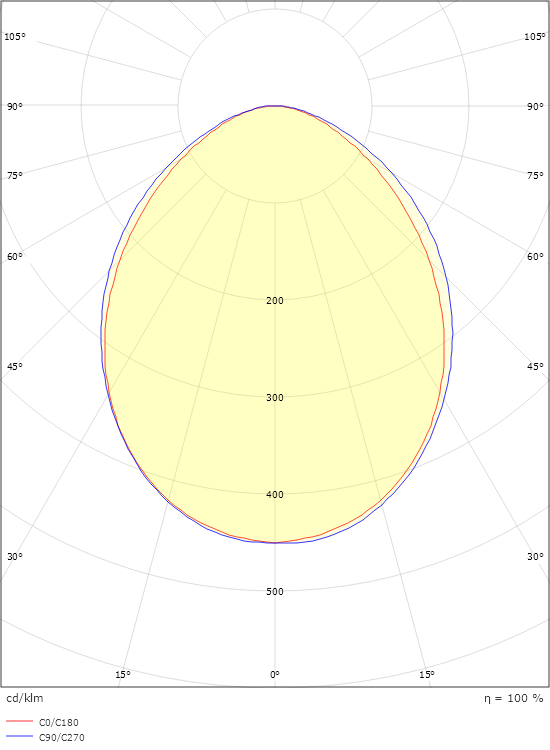

Light distribution:
Direct
Optic:
Opal
Beam angle:
95°
ULOR (<1%):
Yes
Control/Dimming
Type:
Twilight
Protection
Luminaire class:
Class I
IK Class:
IK08
IP Class:
IP44
Energy and approvals
Contains light source of energy class:
C
Breeam:
Fulfils Hea 01 for flicker free lighting
BVB:
Yes
Materials and finish
Housing:
Aluminium
Colour:
Graphite
Optics:
UV-stabilized polycarbonate
Mounting/Connection
Mounting:
Surface, Outdoor
Connection:
Screwless terminal block
Dimensions
Length (mm) L:
180
Width (mm) W:
171
Height (mm) H:
173
Depth (D):
155
Weight (kg) gross/net:
1.86 / 1.67
Packaging
Packing dimensions (mm):
180 x 165 x 185
