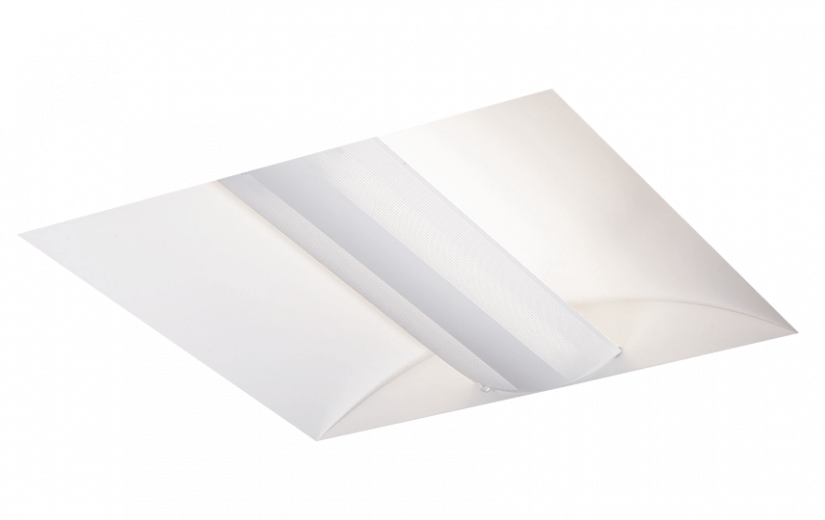

Tripar Medico LED
Tripar Medico LED 600x600 White 2540lm 3000K Ra>80 DALI-2
Article code:
8246083948
EAN:
5703821173476
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
21W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 13, B16: 20, C10: 21, C16: 34
Light technic
Type of light source:
LED
Luminous flux:
2540lm
Efficacy:
121 lm/W
Colour temperature:
3000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L80/B10>50,000

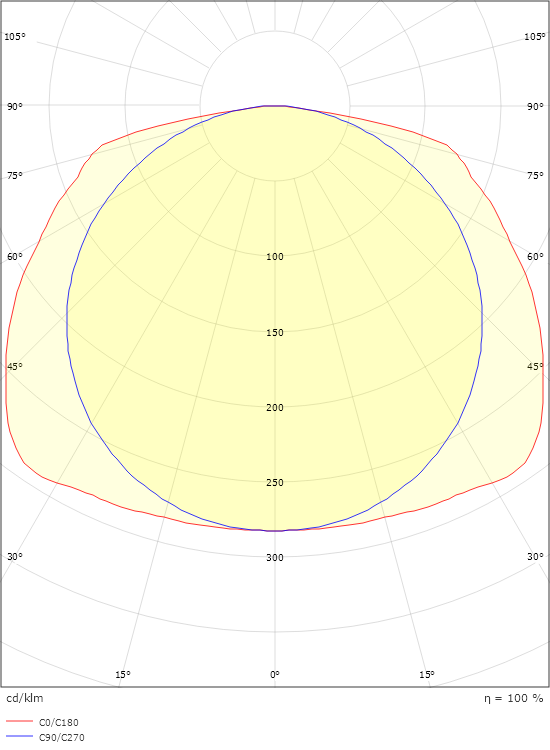

Light distribution:
Direct
Optic:
Perforated
Control/Dimming
Type:
DALI-2
Protection
Luminaire class:
Class I
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
C
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Sheet steel
Colour:
White (Pure white, 25% gloss)
Optics:
Stainless steel
Mounting/Connection
Mounting:
Recessed, Indoor
Module:
600x600 Exposed T-carrier 15/24mm
Connection:
5 pol Winsta

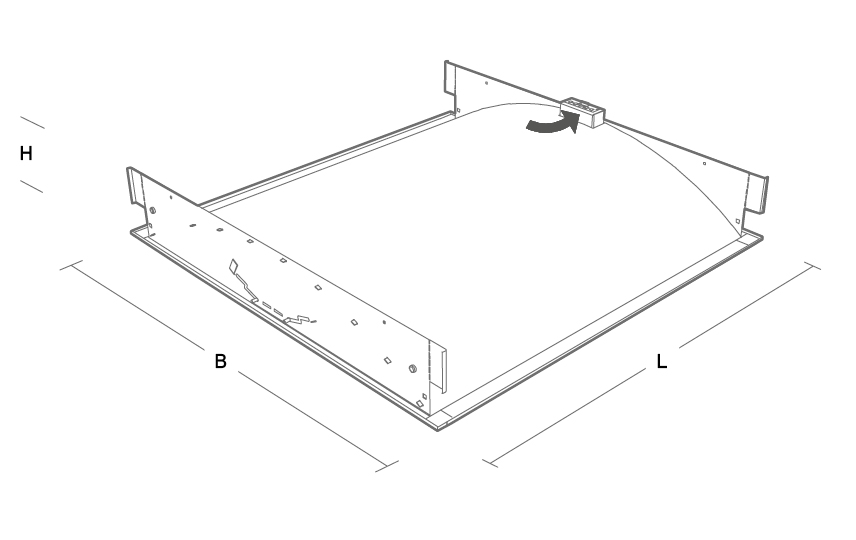

Dimensions
Length (mm) L:
595
Width (mm) W:
595
Height (mm) H:
110
Weight (kg) gross/net:
4.8 / 4.6
Packaging
Packing dimensions (mm):
635 x 625 x 130
