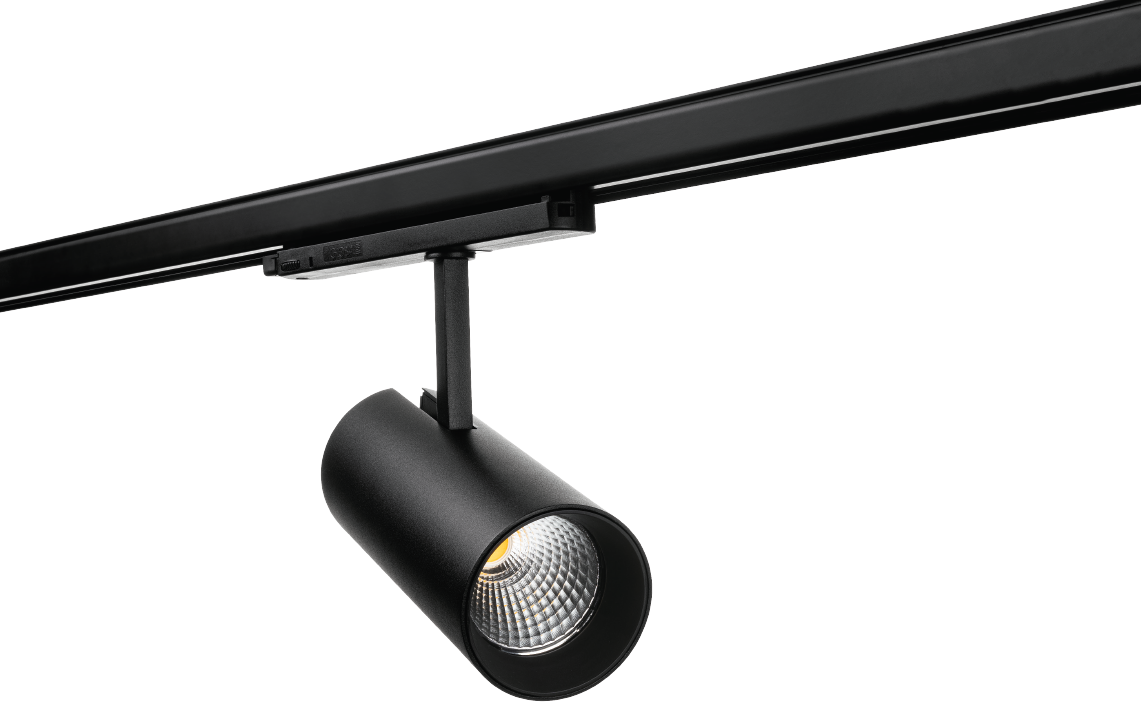

Tube Pro 3-Circuit
Tube Pro 3-Circuit Black 3830lm 4000K Ra>90 On/Off
Article code:
320853
EAN:
7021983208538
Replaces:
314471
Download
Electrical
System wattage:
41W
Voltage:
220-240V
Frequency (Hz):
50/60Hz
Max. luminaires per circuit breaker:
B10: 32, B16: 50, C10: 50, C16: 85
Light technic
Type of light source:
LED
Luminous flux:
3830lm
Efficacy:
93 lm/W
Colour temperature:
4000K
Colour rendering (CRI):
Ra>90
MacAdams factor:
SDCM: 2
Lifetime:
L90/B10>100,000
Maximum ambient temperature:
35°C
Lifetime at max ambient temperature:
L90/B10>50,000

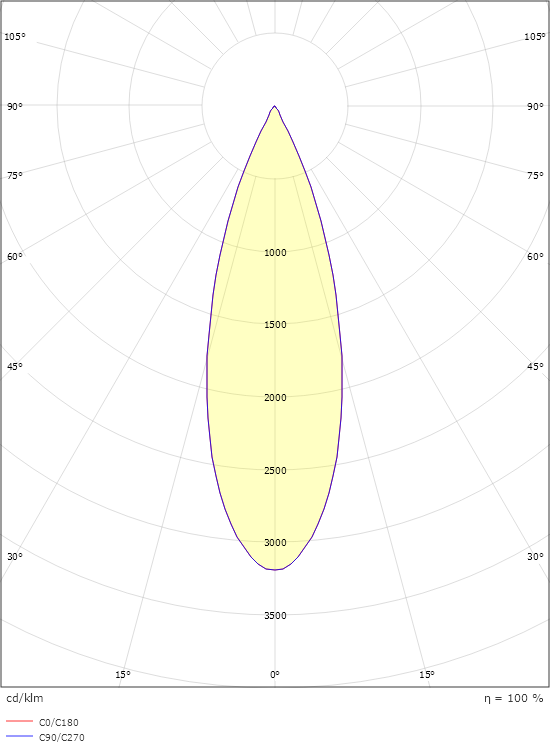

Light distribution:
Direct
Optic:
Reflector
Beam angle:
32°
UGR:
UGR<10
Visible flicker (PstLM):
0.03
Stroboscopic flicker (SVM):
0.01
Control/Dimming
Type:
On/Off
Driver:
1050mA
Protection
Luminaire class:
Class II
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
E
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Aluminium
Optics:
Glass
Mounting/Connection
Mounting:
Surface, Indoor
Connection:
ShopLine track (adapter included)
Dimensions
Length (mm) L:
278
Width (mm) W:
234
Height (mm) H:
92
Weight (kg) gross/net:
1.45 / 1.063
Packaging
Packing dimensions (mm):
285 x 225 x 100
