Velios LED Linear
Velios LED Linear 300x1200 White 4420lm 4000K Ra>80 DALI-2
Article code:
8246079318
EAN:
5703821162326
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
34W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 13, B16: 24, C10: 21, C16: 38
Light technic
Type of light source:
LED
Luminous flux:
4420lm
Efficacy:
130 lm/W
Colour temperature:
4000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L90/B10>50,000

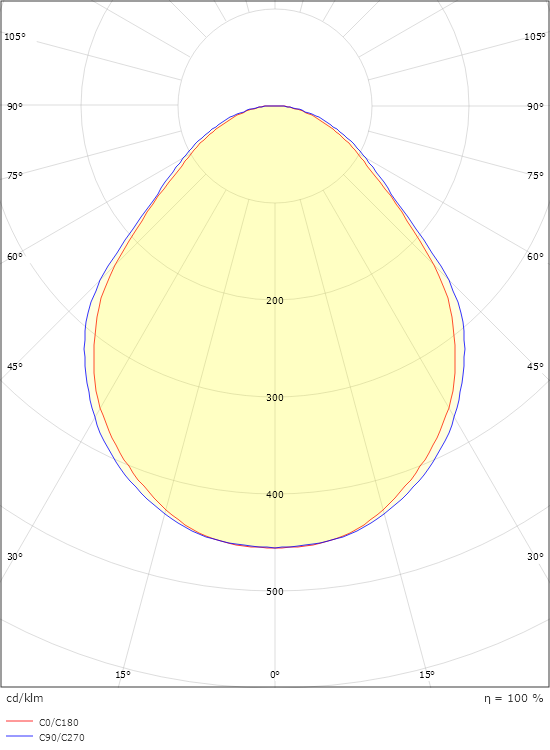

Light distribution:
Direct
Optic:
Lens C, prismatic Conical
Control/Dimming
Type:
DALI-2
Protection
Luminaire class:
Class I
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
D
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Sheet steel
Colour:
White smooth (Ral 9016 gloss 30)
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Recessed, Indoor
Module:
300x1200 Exposed T-carrier 15/24mm
Connection:
5 pol Winsta / Terminal block

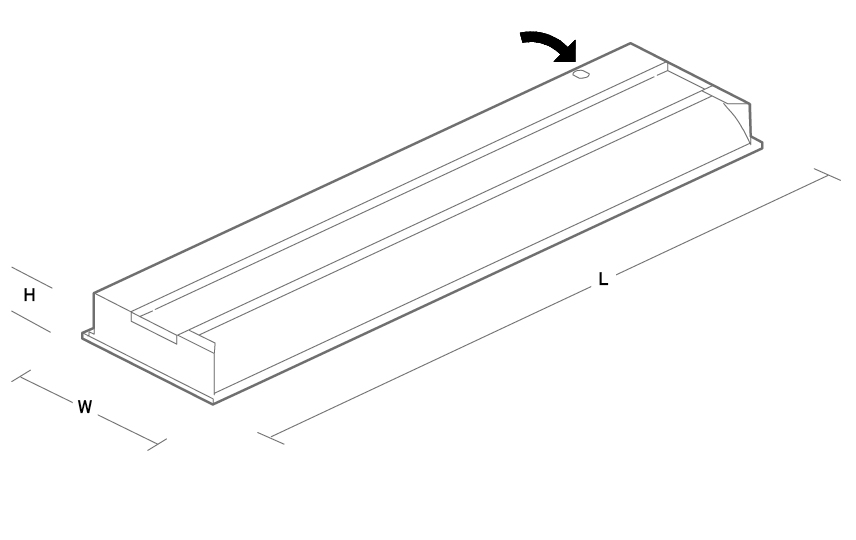

Dimensions
Length (mm) L:
1195
Width (mm) W:
295
Height (mm) H:
66
Ceiling void depth (mm):
66
Weight (kg) gross/net:
6.6 / 6.4
Packaging
Packing dimensions (mm):
1250 x 310 x 100
