Hurdal
Hurdal 600 White 1710lm 4000K Ra>80 On/Off
- Article code
- 113103
- EAN
- 7021981131036
Overview
- Efficacy
- 143 lm/W
- Lumen
- 1710lm
- IP Class
- IP44
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
Tools
Downloads
Specification sheet
113103
pdf
(Opens in new tab)
Mounting instruction
Hurdal_User Manual
pdf
(Opens in new tab)
EPD
NEPD-8677-8357_Hurdal-600
pdf
(Opens in new tab)
CE Declaration
Hurdal
pdf
(Opens in new tab)
Relux file (rolf)
7021981131036_Hurdal_600_White_1710lm_4000K_Ra_80_On_Off
rolf
Eulumdat file (ldt)
7021981131036_Hurdal 600 White 1710lm 4000K Ra80 OnOff
ldt
Dialux file (uld)
7021981131036_Hurdal 600 White 1710lm 4000K Ra80 OnOff
uld
Revit file - Generic
Hurdal 600 - generic
rfa
Revit file - Face Based
Hurdal 600 - face based
rfa
Electrical
- System wattage
- 12W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 40, B16: 60, C10: 40, C16: 60
- Leakage current (mA)
- 0.21
Light technic
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 1710lm
- Efficacy
- 143 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B20>100,000
- Lifetime
- L90>50,000

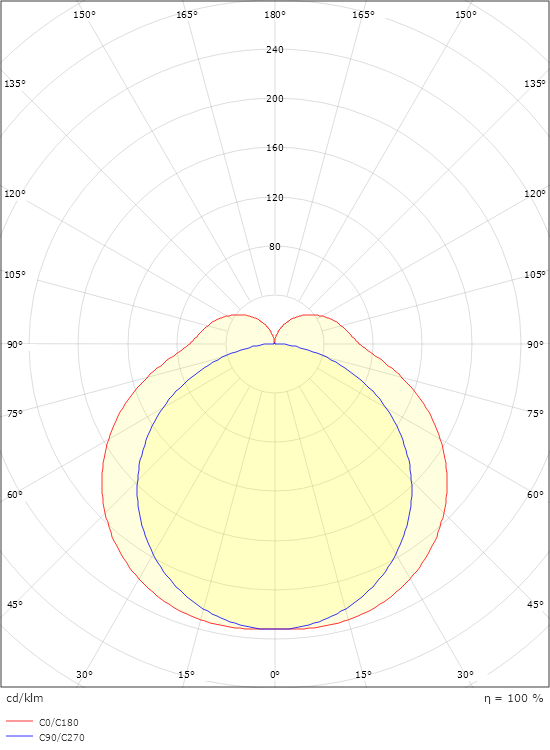

- Light distribution
- Direct
- Optic
- Opal
- Visible flicker (PstLM)
- 0.14
- Stroboscopic flicker (SVM)
- 0.02
- Photobiological safety
- RG 0
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class I
- IK Class
- IK07
- IP Class
- IP44
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Steel
- Optics
- UV-stabilized polycarbonate
Mounting/Connection
- Mounting
- Surface, Indoor
- Module
- 600
- Connection
- 3 pole Screwless terminal block
Dimensions
- Length (mm) L
- 600
- Width (mm) W
- 72
- Height (mm) H
- 76
- Weight (kg) gross/net
- 1.15 / 0.95
Packaging
- Packaging dimensions (mm)
- 623 x 76 x 88
