Soft Square

Soft Square Black 880lm 2700K Ra 98 Trailing edge

Article code
903250
EAN
7021989032502
Back to articlelist

Overview

Efficacy
73 lm/W
Lumen
880lm
IP Class
IP43/IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra 98
Lifetime
100,000 L80/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • flickerfree
  • ik10
  • ip20ip43
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 903250 Revit file - Generic Soft Square - generic Revit file - Ceiling Based Soft square - ceiling based

See more

Eulumdat file (ldt) 7021989032502_Soft Square Black 880lm 2700K Ra 98 Trailing edge dimming Dialux file (uld) 7021989032502_Soft Square Black 880lm 2700K Ra 98 Trailing edge dimming Relux file (rolf) 7021989032502_Soft_Square_Black_880lm_2700K_Ra_98_Trailing_edge_dimming EPD Soft-Square Mounting instruction Soft Square_User Manual CE Declaration Soft Square

How to specify

Text copied to clipboard

Soft Square Black 880lm 2700K Ra 98 Trailing edge, Article code: 903250, EAN: 7021989032502, IP43/IP20, IK10, Electrical: System wattage: 12W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 43, B16: 69, C10: 43, C16: 69, Light technic: Type of light source: LED, Luminous flux: 880lm, Efficacy: 73 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra 98, MacAdams factor: SDCM: 1, Lifetime: L80/B10>100,000, Light distribution: Direct, Optic: Reflector, Beam angle: 60°, UGR: UGR<19, Photobiological safety: RG 1, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II SELV, IK Class: IK10, IP Class: IP43/IP20, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Mounting/Connection: Mounting: Recessed, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 95, Width (mm) W: 95, Height (mm) H: 58, Depth (D): 57, Cut-out (mm): 83, Ceiling void depth (mm): 57, Weight (kg) gross/net: 0.498 / 0.436, Packaging: Packaging dimensions (mm): 170 x 280 x 100

Electrical

System wattage
12W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 43, B16: 69, C10: 43, C16: 69

Light technic

Type of light source
LED
Luminous flux
880lm
Efficacy
73 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra 98
MacAdams factor
SDCM: 1
Lifetime
L80/B10>100,000

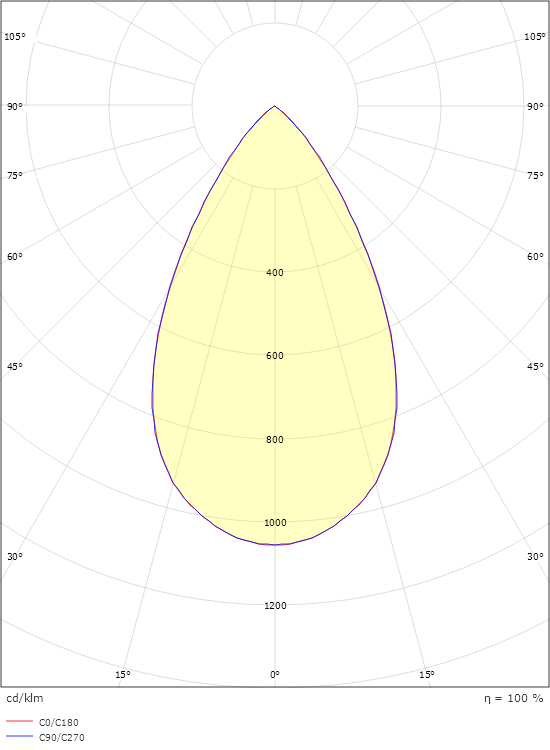

Light distribution
Direct
Optic
Reflector
Beam angle
60°
UGR
UGR<19
Photobiological safety
RG 1

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II SELV
IK Class
IK10
IP Class
IP43/IP20

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)

Mounting/Connection

Mounting
Recessed, Indoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
95
Width (mm) W
95
Height (mm) H
58
Depth (D)
57
Cut-out (mm)
83
Ceiling void depth (mm)
57
Weight (kg) gross/net
0.498 / 0.436

Packaging

Packaging dimensions (mm)
170 x 280 x 100
