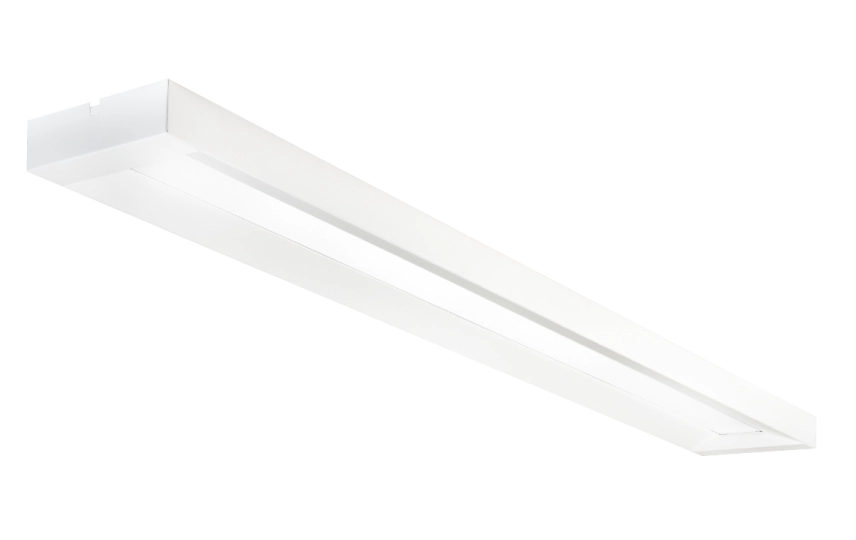

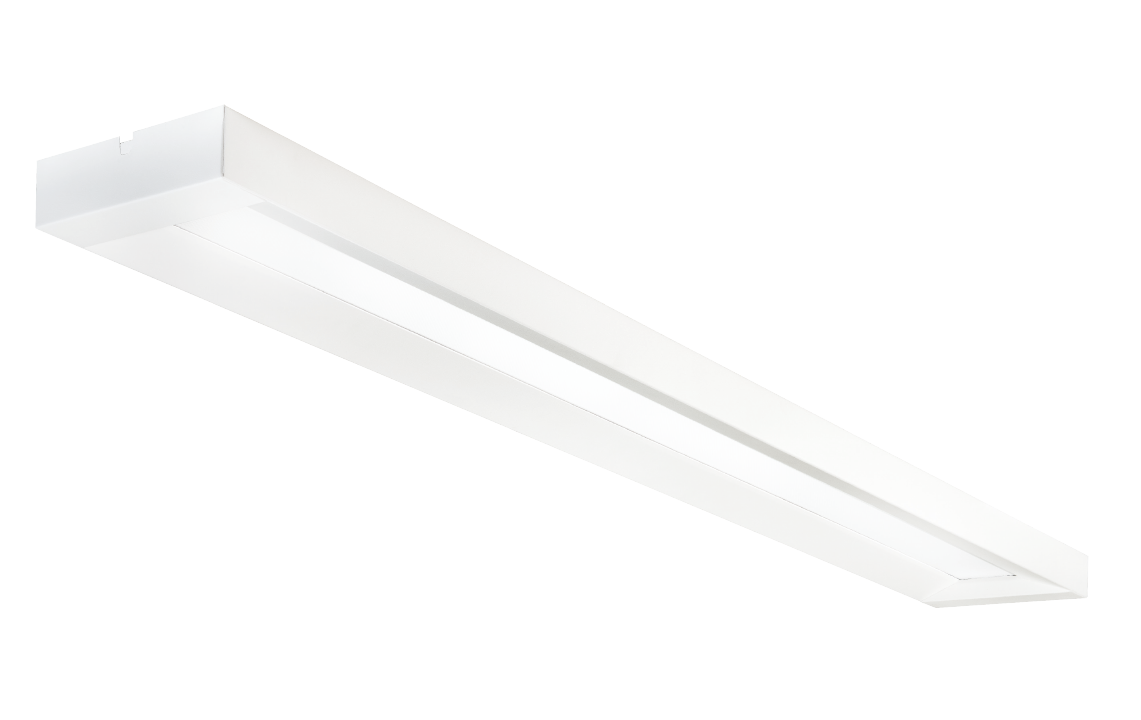

EcoLine

EcoLine is a slim and stylish ceiling luminaire suitable for use in offices, schools and public buildings. Designed for quick and easy installation. Three-layer optical system with low glare: UGR<19. Solid luminaire housing made from powder-coated steel. Can be ceiling-mounted or installed as a suspended luminaire with the adjustable cable suspension (sold separately). Available in both On/Off and DALI/Push Dim. Optional integrated emergency light upon request.

Article list

EcoLine

Indoor Direct Suspended or surface SDCM: 3 Class I IP20 Ra>80

Filters

Module

Colour temperature

System wattage

Lumen

Control gear

Filters

						Others	Tools
212802	1600	3000K	36W	4880lm	DALI-2	136 lm/W, L1600 x W166 x H47, 3+2 pole Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212093	1200	3000K	32W	3900lm	DALI-2 / Push Dim	122 lm/W, L1235 x W166 x H47, 3+2 pole Screwless terminal block, L80/B20> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212091	1200	3000K	32W	3900lm	On/Off	122 lm/W, L1235 x W166 x H47, 3 pole Screwless terminal block, L80/B20> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212800	1600	3000K	36W	4880lm	On/Off	136 lm/W, L1600 x W166 x H47, 3 pole Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212803	1600	4000K	36W	5180lm	DALI-2	144 lm/W, L1600 x W166 x H47, 3+2 pole Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212094	1200	4000K	32W	4120lm	DALI-2 / Push Dim	129 lm/W, L1235 x W166 x H47, 3+2 pole Screwless terminal block, L80/B20> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212092	1200	4000K	32W	4120lm	On/Off	129 lm/W, L1235 x W166 x H47, 3 pole Screwless terminal block, L80/B20> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212801	1600	4000K	36W	5180lm	On/Off	144 lm/W, L1600 x W166 x H47, 3 pole Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
212802	1600	3000K	36W	4880lm	DALI-2	136 lm/W, L1600 x W166 x H47, 3+2 pole Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212093	1200	3000K	32W	3900lm	DALI-2 / Push Dim	122 lm/W, L1235 x W166 x H47, 3+2 pole Screwless terminal block, L80/B20> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212091	1200	3000K	32W	3900lm	On/Off	122 lm/W, L1235 x W166 x H47, 3 pole Screwless terminal block, L80/B20> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212800	1600	3000K	36W	4880lm	On/Off	136 lm/W, L1600 x W166 x H47, 3 pole Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212803	1600	4000K	36W	5180lm	DALI-2	144 lm/W, L1600 x W166 x H47, 3+2 pole Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212094	1200	4000K	32W	4120lm	DALI-2 / Push Dim	129 lm/W, L1235 x W166 x H47, 3+2 pole Screwless terminal block, L80/B20> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212092	1200	4000K	32W	4120lm	On/Off	129 lm/W, L1235 x W166 x H47, 3 pole Screwless terminal block, L80/B20> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212801	1600	4000K	36W	5180lm	On/Off	144 lm/W, L1600 x W166 x H47, 3 pole Screwless terminal block, L90/B10> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Image	Article code	Description	Dimensions	Tools
	212255	T-profil White Suspension Rail 600mm	L596 x W35 x H17	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
	212095	EcoLine Wire kit Steel/plastic	L2000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
