Facet

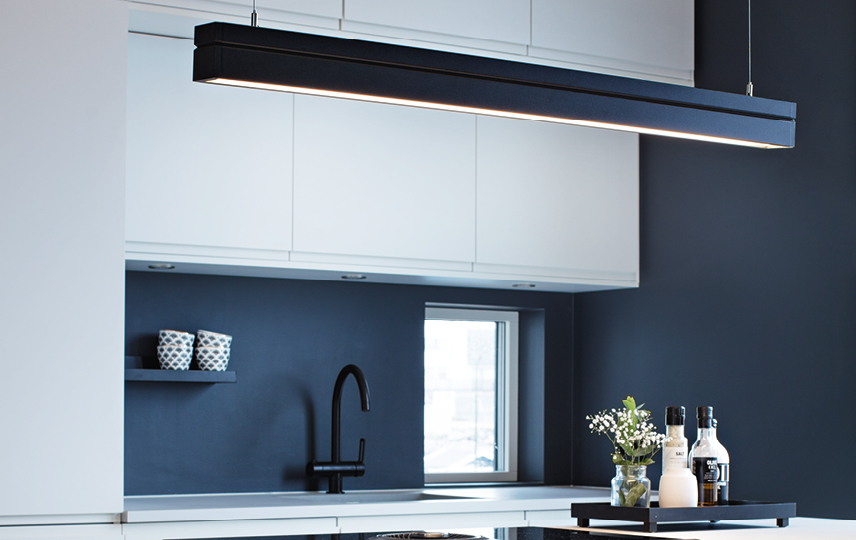

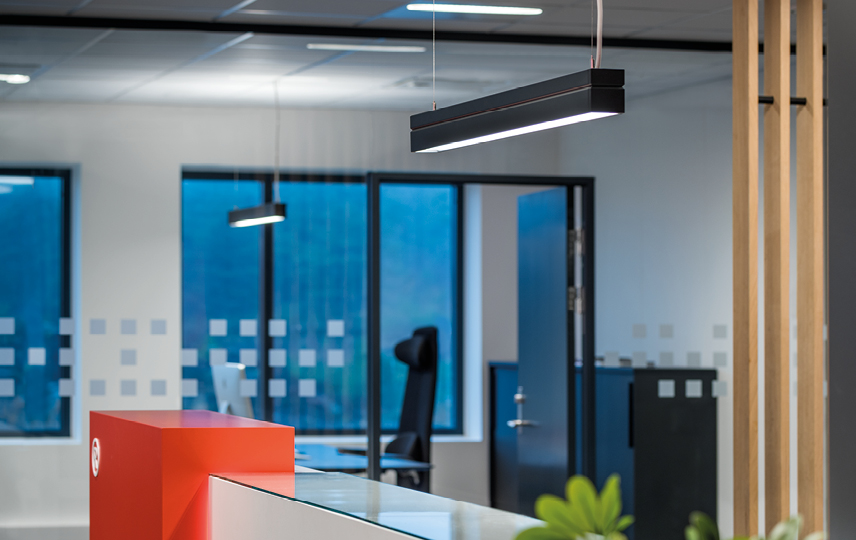

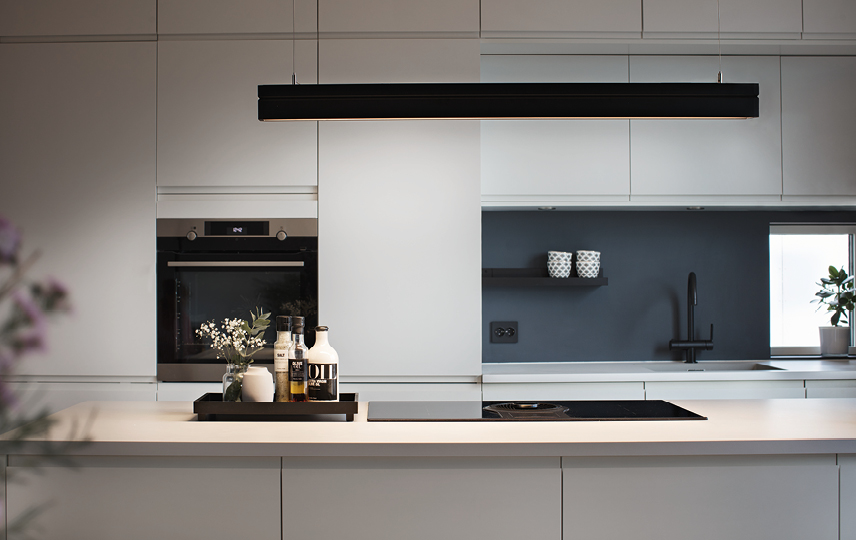

Slim, minimalistic luminaire with direct/indirect light. Perfect for offices and over desks with glare-free optic in PMMA. Delivered with 2,5 meter cable and 2x2 meter suspension wires. Quick installation with plug and play solution.

Article list

Facet

Indoor Suspended SDCM: 3 Class I IP20 Ra>80 L80/B10> 100,000

Filters

Color

Colour temperature

System wattage

Lumen

Control gear

Filters

					Others	Tools
8246093394	3000K	35W	5030lm	Dim (down) 1x pull switch sensor (up/down)	Direct/Indirect 50/50%, 144 lm/W, L1514 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094241	3000K	23W	3240lm	Dim 1x pull switch	Direct/Indirect 60/40%, 141 lm/W, L1164 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094254	3000K	35W	5030lm	Dim 1x pull switch	Direct/Indirect 50/50%, 144 lm/W, L1444 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086084	3000K	23W	3240lm	2x pull switch, on/off	Direct/Indirect 60/40%, 141 lm/W, L1164 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246082499	3000K	23W	3240lm	DALI-2 / Push Dim	Direct/Indirect 60/40%, 141 lm/W, L1164 x W64 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094270	3000K	35W	5030lm	DALI-2 / Push Dim	Direct/Indirect 50/50%, 144 lm/W, L1444 x W64 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090355	3000K	35W	5030lm	Dim (down) 1x pull switch sensor (up/down)	Direct/Indirect 50/50%, 144 lm/W, L1514 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086097	3000K	23W	3240lm	Dim 1x pull switch	Direct/Indirect 60/40%, 141 lm/W, L1164 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086042	3000K	23W	3240lm	On/Off	Direct/Indirect 60/40%, 141 lm/W, L1164 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094267	3000K	35W	5030lm	On/Off	Direct/Indirect 50/50%, 144 lm/W, L1444 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246096090	4000K	35W	5250lm	Dim 1x pull switch	Direct/Indirect 50/50%, 150 lm/W, L1444 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086068	4000K	23W	3380lm	DALI-2 / Push Dim	Direct/Indirect 60/40%, 147 lm/W, L1164 x W64 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246087449	4000K	34W	4890lm	DALI-2 / Push Dim	Direct/Indirect 65/35%, 144 lm/W, L1444 x W64 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M13	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090342	4000K	35W	5250lm	Dim (down) 1x pull switch sensor (up/down)	Direct/Indirect 50/50%, 150 lm/W, L1514 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246096074	4000K	23W	3380lm	Dim 1x pull switch	Direct/Indirect 60/40%, 147 lm/W, L1164 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246096087	4000K	35W	5250lm	Dim 1x pull switch	Direct/Indirect 50/50%, 150 lm/W, L1444 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086055	4000K	23W	3380lm	On/Off	Direct/Indirect 60/40%, 147 lm/W, L1164 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

					Others	Tools
8246093394	3000K	35W	5030lm	Dim (down) 1x pull switch sensor (up/down)	Direct/Indirect 50/50%, 144 lm/W, L1514 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094241	3000K	23W	3240lm	Dim 1x pull switch	Direct/Indirect 60/40%, 141 lm/W, L1164 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094254	3000K	35W	5030lm	Dim 1x pull switch	Direct/Indirect 50/50%, 144 lm/W, L1444 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086084	3000K	23W	3240lm	2x pull switch, on/off	Direct/Indirect 60/40%, 141 lm/W, L1164 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246082499	3000K	23W	3240lm	DALI-2 / Push Dim	Direct/Indirect 60/40%, 141 lm/W, L1164 x W64 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094270	3000K	35W	5030lm	DALI-2 / Push Dim	Direct/Indirect 50/50%, 144 lm/W, L1444 x W64 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090355	3000K	35W	5030lm	Dim (down) 1x pull switch sensor (up/down)	Direct/Indirect 50/50%, 144 lm/W, L1514 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086097	3000K	23W	3240lm	Dim 1x pull switch	Direct/Indirect 60/40%, 141 lm/W, L1164 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086042	3000K	23W	3240lm	On/Off	Direct/Indirect 60/40%, 141 lm/W, L1164 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094267	3000K	35W	5030lm	On/Off	Direct/Indirect 50/50%, 144 lm/W, L1444 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246096090	4000K	35W	5250lm	Dim 1x pull switch	Direct/Indirect 50/50%, 150 lm/W, L1444 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086068	4000K	23W	3380lm	DALI-2 / Push Dim	Direct/Indirect 60/40%, 147 lm/W, L1164 x W64 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246087449	4000K	34W	4890lm	DALI-2 / Push Dim	Direct/Indirect 65/35%, 144 lm/W, L1444 x W64 x H80, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M13	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090342	4000K	35W	5250lm	Dim (down) 1x pull switch sensor (up/down)	Direct/Indirect 50/50%, 150 lm/W, L1514 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246096074	4000K	23W	3380lm	Dim 1x pull switch	Direct/Indirect 60/40%, 147 lm/W, L1164 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246096087	4000K	35W	5250lm	Dim 1x pull switch	Direct/Indirect 50/50%, 150 lm/W, L1444 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086055	4000K	23W	3380lm	On/Off	Direct/Indirect 60/40%, 147 lm/W, L1164 x W64 x H80, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M4	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
212198	Black T-carrier ceiling bracket Aluminium	L30 x W20 x H5	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212255	T-profil White Suspension Rail 600mm	L596 x W35 x H17	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249044007	Facet II White Wall bracket Sheet steel	L490 x W70 x H70	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820307	Emergency battery 3 Hours 3.0Ah - Model No: B093	L137 x W27 x H27	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
