Inspire Prism

Inspire 1200 Black prism 3510lm 3000K Ra>80 Trailing edge

Article code
212852
EAN
7021982128523
Back to articlelist

Overview

Efficacy
121 lm/W
Lumen
3510lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Suspended, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_1
  • ce
  • enec

Tools

Downloads

Specification sheet 212852 Mounting instruction Inspire Prism_User Manual EPD NEPD-7909-7592_Inspire-1200-Prism CE Declaration Inspire Prism Relux file (rolf) 7021982128523_Inspire_Prism_1200_Black_3510lm_3000K_Ra_80_Trailing_edge_dimming Eulumdat file (ldt) 7021982128523_Inspire Prism 1200 Black 3510lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021982128523_Inspire Prism 1200 Black 3510lm 3000K Ra80 Trailing edge dimming Revit file - Generic Inspire Prism 1200 - generic Revit file - Face Based Inspire Prism 1200 - face based

How to specify

Text copied to clipboard

Inspire 1200 Black prism 3510lm 3000K Ra>80 Trailing edge, Article code: 212852, EAN: 7021982128523, IP20, Electrical: System wattage: 29W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Leakage current (mA): 0.07, Light technic: Type of light source: LED, Luminous flux: 3510lm, Efficacy: 121 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>100,000, Lifetime: L96>50,000, Light distribution: Direct/Indirect, Optic: Prism Optic, UGR: UGR<19, Visible flicker (PstLM): <1, Stroboscopic flicker (SVM): <0,4, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Driver: 800mA, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: B, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Suspended, Indoor, Module: 1200, Wire set: 2x2m wire kit, Cable: Cable 3x0,75mm² 2,5m, Dimensions: Length (mm) L: 1240, Width (mm) W: 38, Height (mm) H: 67, Weight (kg) gross/net: 3.6 / 3.3, Packaging: Packaging dimensions (mm): 1365 x 90 x 61

Electrical

System wattage
29W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51
Leakage current (mA)
0.07

Light technic

Type of light source
LED
Luminous flux
3510lm
Efficacy
121 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>100,000
Lifetime
L96>50,000

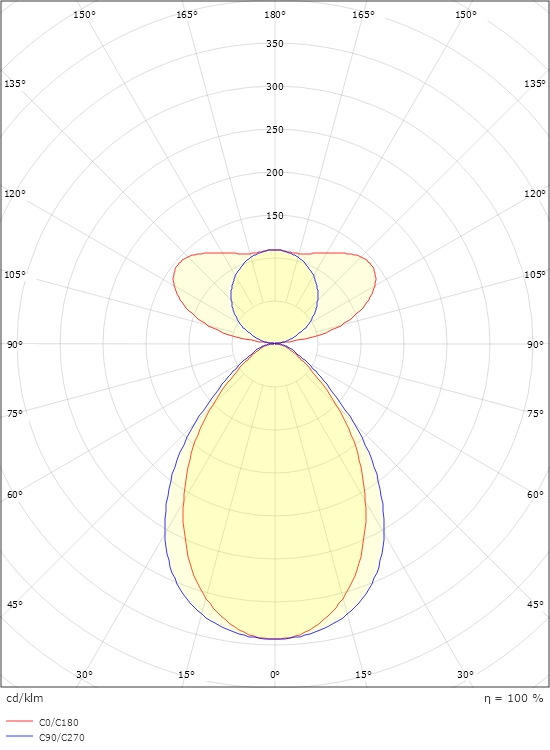

Light distribution
Direct/Indirect
Optic
Prism Optic

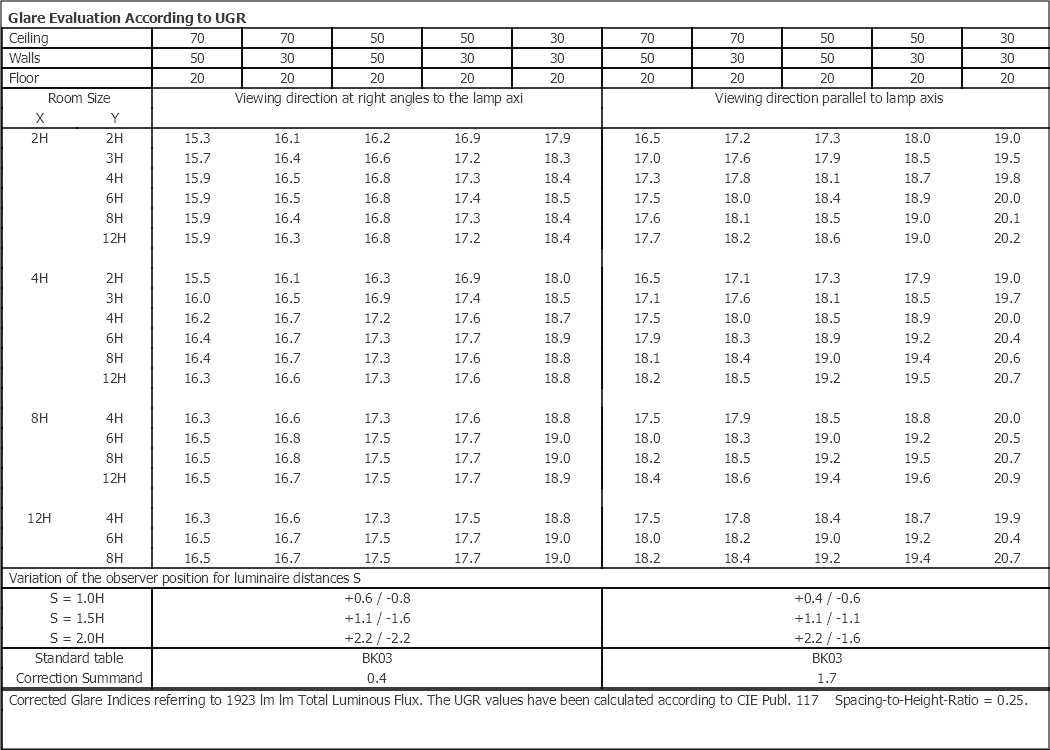

UGR
UGR<19
Visible flicker (PstLM)
<1
Stroboscopic flicker (SVM)
<0,4
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge
Driver
800mA

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
B
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Suspended, Indoor
Module
1200
Wire set
2x2m wire kit
Cable
Cable 3x0,75mm² 2,5m

Dimensions

Length (mm) L
1240
Width (mm) W
38
Height (mm) H
67
Weight (kg) gross/net
3.6 / 3.3

Packaging

Packaging dimensions (mm)
1365 x 90 x 61
