Junistar Lux Square

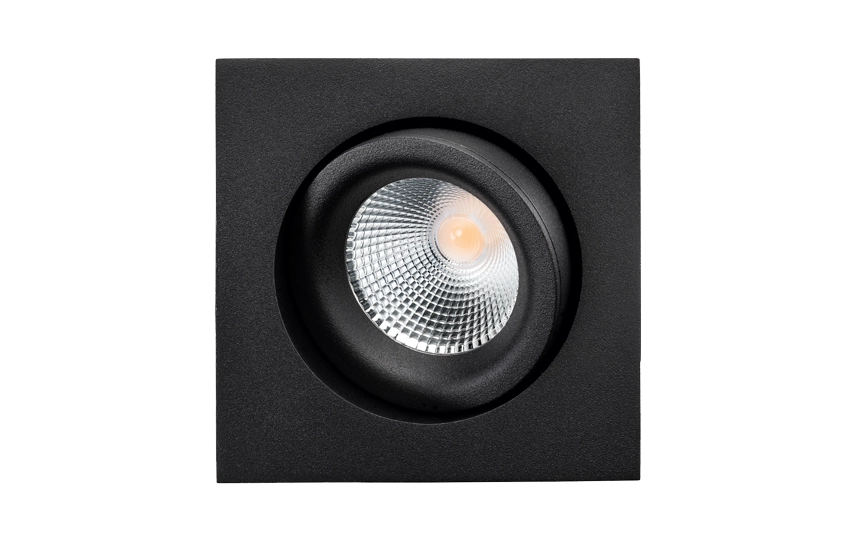

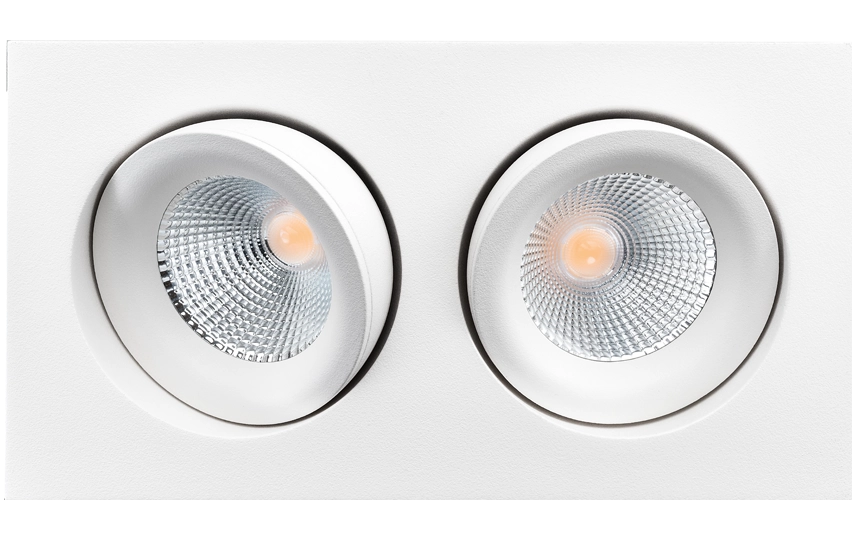

Single or double downlight for indoor use. Junistar Lux Square emits a harmonious, flicker-free light with excellent colour rendering. Its patented, adjustable 30-degree tilt function in all directions. It includes a junction box that provides strain relief for several types of cables, as well as fixtion for plastic tubing.

Article list

Junistar Lux Square

Indoor, Outdoor Direct Recessed SDCM: 1 Class II SELV IP44/IP20 Ra 98 Beam angle: 42° L90/B10> 100,000

Filters

Color

Colour temperature

System wattage

Lumen

Control gear

Filters

					Others	Tools
902605	2700K	8W	580lm	DALI-2	73 lm/W, L95 x W95 x H50, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902614	2700K	17W	1160lm	DALI-2	2X, 68 lm/W, L175 x W95 x H50, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902587	2700K	8W	580lm	Trailing edge	73 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902596	2700K	17W	1160lm	Trailing edge	2X, 68 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902584	2700K	8W	580lm	Trailing edge	73 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902593	2700K	17W	1160lm	Trailing edge	2X, 68 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902599	2700K	8W	580lm	DALI-2	73 lm/W, L95 x W95 x H50, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902608	2700K	17W	1160lm	DALI-2	2X, 68 lm/W, L175 x W95 x H50, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902581	2700K	8W	580lm	Trailing edge	73 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902590	2700K	17W	1160lm	Trailing edge	2X, 68 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902606	3000K	8W	590lm	DALI-2	74 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902615	3000K	17W	1180lm	DALI-2	2X, 69 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902588	3000K	8W	590lm	Trailing edge	74 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902597	3000K	17W	1180lm	Trailing edge	2X, 69 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902585	3000K	8W	590lm	Trailing edge	74 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902594	3000K	17W	1180lm	Trailing edge	2X, 69 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902600	3000K	8W	590lm	DALI-2	74 lm/W, L95 x W95 x H50, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902609	3000K	17W	1180lm	DALI-2	2X, 69 lm/W, L175 x W95 x H50, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902582	3000K	8W	590lm	Trailing edge	74 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902591	3000K	17W	1180lm	Trailing edge	2X, 69 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902607	4000K	8W	620lm	DALI-2	78 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902616	4000K	17W	1240lm	DALI-2	2X, 73 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902589	4000K	8W	620lm	Trailing edge	78 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902598	4000K	17W	1240lm	Trailing edge	2X, 73 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902601	4000K	8W	620lm	DALI-2	78 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902610	4000K	17W	1240lm	DALI-2	2X, 73 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902583	4000K	8W	620lm	Trailing edge	78 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902592	4000K	17W	1240lm	Trailing edge	2X, 73 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

					Others	Tools
902605	2700K	8W	580lm	DALI-2	73 lm/W, L95 x W95 x H50, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902614	2700K	17W	1160lm	DALI-2	2X, 68 lm/W, L175 x W95 x H50, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902587	2700K	8W	580lm	Trailing edge	73 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902596	2700K	17W	1160lm	Trailing edge	2X, 68 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902584	2700K	8W	580lm	Trailing edge	73 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902593	2700K	17W	1160lm	Trailing edge	2X, 68 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902599	2700K	8W	580lm	DALI-2	73 lm/W, L95 x W95 x H50, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902608	2700K	17W	1160lm	DALI-2	2X, 68 lm/W, L175 x W95 x H50, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902581	2700K	8W	580lm	Trailing edge	73 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902590	2700K	17W	1160lm	Trailing edge	2X, 68 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902606	3000K	8W	590lm	DALI-2	74 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902615	3000K	17W	1180lm	DALI-2	2X, 69 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902588	3000K	8W	590lm	Trailing edge	74 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902597	3000K	17W	1180lm	Trailing edge	2X, 69 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902585	3000K	8W	590lm	Trailing edge	74 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902594	3000K	17W	1180lm	Trailing edge	2X, 69 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902600	3000K	8W	590lm	DALI-2	74 lm/W, L95 x W95 x H50, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902609	3000K	17W	1180lm	DALI-2	2X, 69 lm/W, L175 x W95 x H50, 5 pol Linect / screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902582	3000K	8W	590lm	Trailing edge	74 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902591	3000K	17W	1180lm	Trailing edge	2X, 69 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902607	4000K	8W	620lm	DALI-2	78 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902616	4000K	17W	1240lm	DALI-2	2X, 73 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902589	4000K	8W	620lm	Trailing edge	78 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902598	4000K	17W	1240lm	Trailing edge	2X, 73 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902601	4000K	8W	620lm	DALI-2	78 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902610	4000K	17W	1240lm	DALI-2	2X, 73 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902583	4000K	8W	620lm	Trailing edge	78 lm/W, L95 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
902592	4000K	17W	1240lm	Trailing edge	2X, 73 lm/W, L175 x W95 x H50, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
768	IsoSafe Cup Black IsoSafe Cover	L55 x W75 x H55	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903256	Soft Square Black 1X Frame for Soft Square, Junistar Lux Square & Junistar Square Isosafe DimToWarm	L140 x W140 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903257	Soft Square Black 2X Frame for Soft Square, Junistar Lux Square & Junistar Square Isosafe DimToWarm	L258 x W140 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903259	Soft Square Black 3X Frame for Soft Square, Junistar Lux Square & Junistar Square Isosafe DimToWarm	L376 x W140 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820489	Sensor Dim Box White 200VA 200VA	L220 x W75 x H34	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903254	Soft Square White 1X Frame for Soft Square, Junistar Lux Square & Junistar Square Isosafe DimToWarm	L140 x W140 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903255	Soft Square White 2X Frame for Soft Square, Junistar Lux Square & Junistar Square Isosafe DimToWarm	L258 x W140 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
903258	Soft Square White 3X Frame for Soft Square, Junistar Lux Square & Junistar Square Isosafe DimToWarm	L376 x W140 x H4	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094429	Emergencybox Driver DALI / EM Self test, DALI Emergency 3H	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820090	Emergencybox Adapter kit for downlight	L250 x W13 x H13	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094364	Emergencybox On-Off/Trailing edge / EM Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246094500	Emergencybox Driver DALI / EM DALI/Self test, Emergency 3 hours	L270 x W75 x H35	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
