Area 66

Area 66 Grey 4500lm 4000K Ra>80 DALI-2

Article code
120003
EAN
7021981200039
Back to articlelist

Overview

Efficacy
125 lm/W
Lumen
4500lm
IP Class
IP66
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B10>
Mounting
Surface, Indoor
  • indoor
  • d
  • el
  • ik10
  • ip66
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 120003 Revit file - Generic Area 66 1200 - generic Revit file - Face Based Area 66 1200 - face based

See more

Eulumdat file (ldt) 7021981200039_Area 66 Grey 4500lm 4000K Ra80 DALI Dialux file (uld) 7021981200039_Area 66 Grey 4500lm 4000K Ra80 DALI Relux file (rolf) 7021981200039_Area_66_Grey_4500lm_4000K_Ra_80_DALI EPD NEPD-4929-4275_AREA-66-36-W-DALI Mounting instruction Area 66_User Manual CE Declaration Area 66

How to specify

Text copied to clipboard

Area 66 Grey 4500lm 4000K Ra>80 DALI-2, Article code: 120003, EAN: 7021981200039, IP66, IK10, Electrical: System wattage: 36W, Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 24, C16: 38, Leakage current (mA): 0.30, Light technic: Type of light source: LED, Luminous flux: 4500lm, Efficacy: 125 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Lifetime: L90/B50>50,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Optic: Opal, Beam angle: 100°, UGR: UGR<28, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP66, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: UV-stabilized polycarbonate, Colour: Grey, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Connection: 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring, Dimensions: Length (mm) L: 1174, Width (mm) W: 92, Height (mm) H: 70, Weight (kg) gross/net: 2.832 / 2.36, Packaging: Packaging dimensions (mm): 1230 x 110 x 80

Electrical

System wattage
36W
Max. luminaires per circuit breaker
B10: 15, B16: 24, C10: 24, C16: 38
Leakage current (mA)
0.30

Light technic

Type of light source
LED
Luminous flux
4500lm
Efficacy
125 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000
Lifetime
L90/B50>50,000
Minimum ambient temperature
-25°C

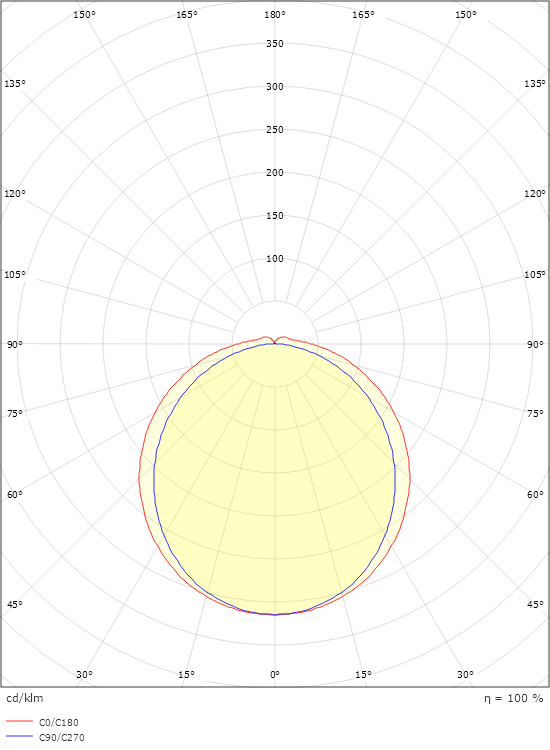

Light distribution
Direct
Optic
Opal
Beam angle
100°
UGR
UGR<28

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP66

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
UV-stabilized polycarbonate
Colour
Grey
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Connection
7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring

Dimensions

Length (mm) L
1174
Width (mm) W
92
Height (mm) H
70
Weight (kg) gross/net
2.832 / 2.36

Packaging

Packaging dimensions (mm)
1230 x 110 x 80
