Arena

Arena 1200 White Wide 8980/11800lm 4000K Ra>80 DALI-2

Article code
8246093598
EAN
5703821174596
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Wattage
57/77W
Efficacy
158 lm/W
Lumen
8980/11800lm
IP Class
IP23
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
70,000 L90/B10>
Mounting
Suspended or surface, Indoor
    5 years Warranty
  • indoor
  • el
  • ik08
  • ip23
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246093598 Mounting instruction Arena 1200 Multiwatt Short_User Manual Eulumdat file (ldt) 5703821174596_Arena 1200 White Wide 11800lm 4000K Ra80 DALI

See more

Eulumdat file (ldt) 5703821174596_Arena 1200 White Wide 8980lm 4000K Ra80 DALI Dialux file (uld) 5703821174596_Arena 1200 White Wide 11800lm 4000K Ra80 DALI Dialux file (uld) 5703821174596_Arena 1200 White Wide 8980lm 4000K Ra80 DALI Relux file (rolf) 5703821174596_Arena_1200_White_Wide_11800lm_4000K_Ra80_DALI Relux file (rolf) 5703821174596_Arena_1200_White_Wide_8980lm_4000K_Ra80_DALI Revit file - Generic Arena 1200 - generic Revit file - Ceiling Based Arena 1200 - ceiling based CE Declaration Arena

How to specify

Text copied to clipboard

Arena 1200 White Wide 8980/11800lm 4000K Ra>80 DALI-2, Article code: 8246093598, EAN: 5703821174596, IP23, IK08, Electrical: Wattage: 57/77W, System wattage: 57W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 12, B16: 21, C10: 19, C16: 34, Light technic: Type of light source: LED, Luminous flux: 8980/11800lm, Efficacy: 158 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>70,000, Lifetime: L80/B20>100,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Optic: Lens Wide, Beam angle: Wide, UGR: UGR<25, Photobiological safety: RG 1, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP23, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White (RAL 9010, 20% gloss), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Suspended or surface, Indoor, Module: 1200, Connection: 7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring, Dimensions: Length (mm) L: 1194, Width (mm) W: 138, Height (mm) H: 63, Weight (kg) gross/net: 3.8 / 3.704, Packaging: Packaging dimensions (mm): 1269 x 137 x 57

Electrical

Wattage
57/77W
System wattage
57W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 12, B16: 21, C10: 19, C16: 34

Light technic

Type of light source
LED
Luminous flux
8980/11800lm
Efficacy
158 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>70,000
Lifetime
L80/B20>100,000
Minimum ambient temperature
-25°C

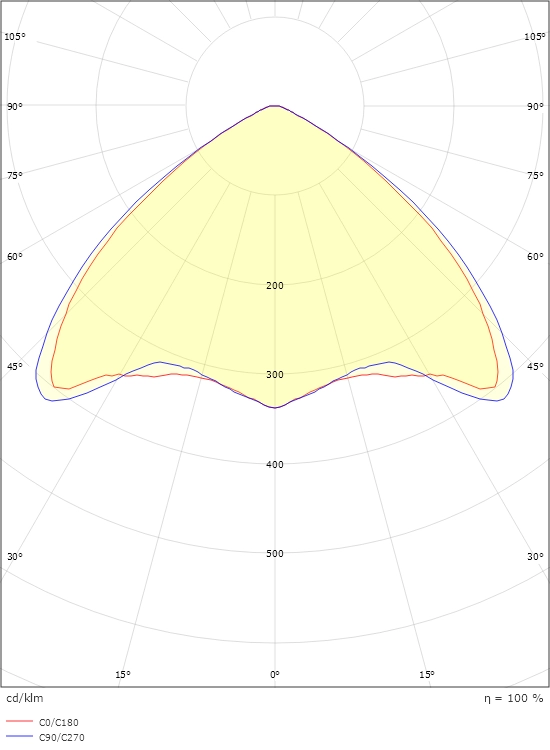

Light distribution
Direct
Optic
Lens Wide
Beam angle
Wide
UGR
UGR<25
Photobiological safety
RG 1

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP23

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White (RAL 9010, 20% gloss)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Suspended or surface, Indoor
Module
1200
Connection
7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring

Dimensions

Length (mm) L
1194
Width (mm) W
138
Height (mm) H
63
Weight (kg) gross/net
3.8 / 3.704

Packaging

Packaging dimensions (mm)
1269 x 137 x 57
