Arena

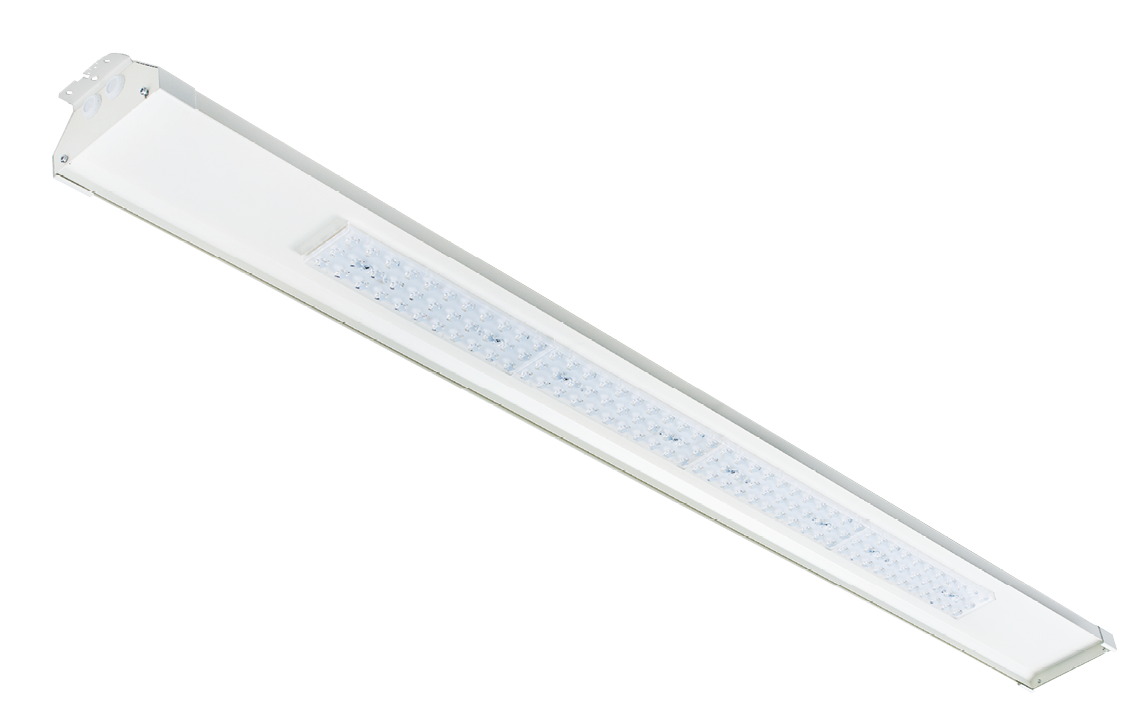

Arena 1500 White Wide 11800lm 4000K Ra>80 On/Off
- Article code
- 8246094762
- EAN
- 5703821178167
- Replaces
- 8246093462
Overview
- Efficacy
- 149 lm/W
- Lumen
- 11800lm
- IP Class
- IP23
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 70,000 L90/B10>
- Mounting
- Suspended or surface, Indoor
Electrical
- System wattage
- 79W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 10, B16: 16, C10: 17, C16: 27
- Leakage current (mA)
- 0.31
Light technic
- Type of light source
- LED
- Luminous flux
- 11800lm
- Efficacy
- 149 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L90/B10>70,000
- Lifetime
- L80/B20>100,000
- Minimum ambient temperature
- -25°C

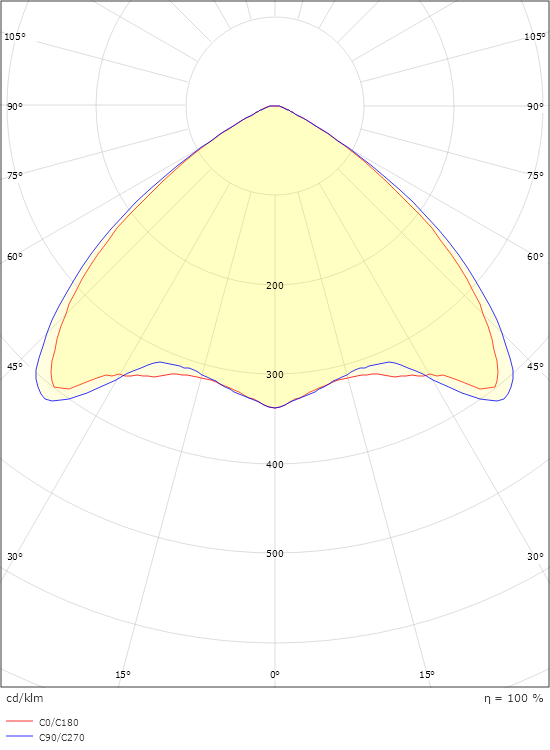

- Light distribution
- Direct
- Optic
- Lens Wide
- Beam angle
- Wide
- Photobiological safety
- RG 1
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class I
- IK Class
- IK08
- IP Class
- IP23
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Colour
- White (RAL 9010, 20% gloss)
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Mounting
- Suspended or surface, Indoor
- Module
- 1500
- Connection
- 5-pole screwless terminal block with 5x2,5mm2 through wiring
Dimensions
- Length (mm) L
- 1769
- Width (mm) W
- 137
- Height (mm) H
- 57
- Weight (kg) gross/net
- 4.8 / 4.6
Packaging
- Packaging dimensions (mm)
- 1285 x 148 x 65
