Chef

Chef White DimToWarm 300lm 2000-2800K Ra>90 Trailing edge

Article code
391061
EAN
7021983910615
Back to articlelist

Overview

Efficacy
60 lm/W
Lumen
300lm
IP Class
IP21
Colour temperature
2000-2800K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dimtowarm
  • ip21
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 391061 Revit file - Generic Chef L275 x W75 x H30 - generic Revit file - Face Based Chef L275 x W75 x H30 - face based

See more

Mounting instruction Chef Kl 1 DTW_User manual Eulumdat file (ldt) 7021983910615_Chef White DimToWarm 300lm 2000-2800K Ra90 Trailing edge dimming Dialux file (uld) 7021983910615_Chef White DimToWarm 300lm 2000-2800K Ra90 Trailing edge dimming Relux file (rolf) 7021983910615_Chef_White_DimToWarm_300lm_2000-2800K_Ra_90_Trailing_edge_dimming CE Declaration Chef

How to specify

Text copied to clipboard

Chef White DimToWarm 300lm 2000-2800K Ra>90 Trailing edge, Article code: 391061, EAN: 7021983910615, IP21, Electrical: System wattage: 5W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 300lm, Efficacy: 60 lm/W, Colour temperature: 2000-2800K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L70/B50>50,000, Light distribution: Direct, Optic: Lens, UGR: UGR<25, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IP Class: IP21, Energy and approvals: BVB: Yes, Materials and finish: Housing: Steel, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 275, Width (mm) W: 75, Height (mm) H: 30, Weight (kg) gross/net: 0.732 / 0.61, Packaging: Packaging dimensions (mm): 290 x 80 x 40

Electrical

System wattage
5W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
300lm
Efficacy
60 lm/W
Colour temperature
2000-2800K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L70/B50>50,000

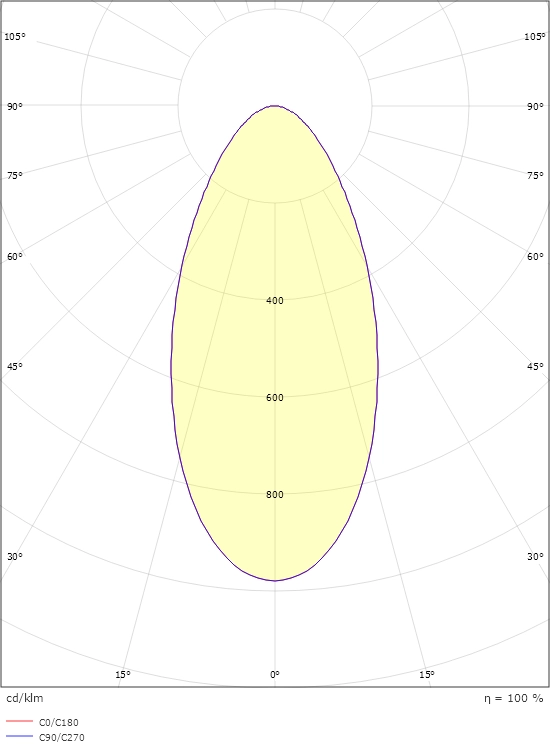

Light distribution
Direct
Optic
Lens
UGR
UGR<25

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IP Class
IP21

Energy and approvals

BVB
Yes

Materials and finish

Housing
Steel
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

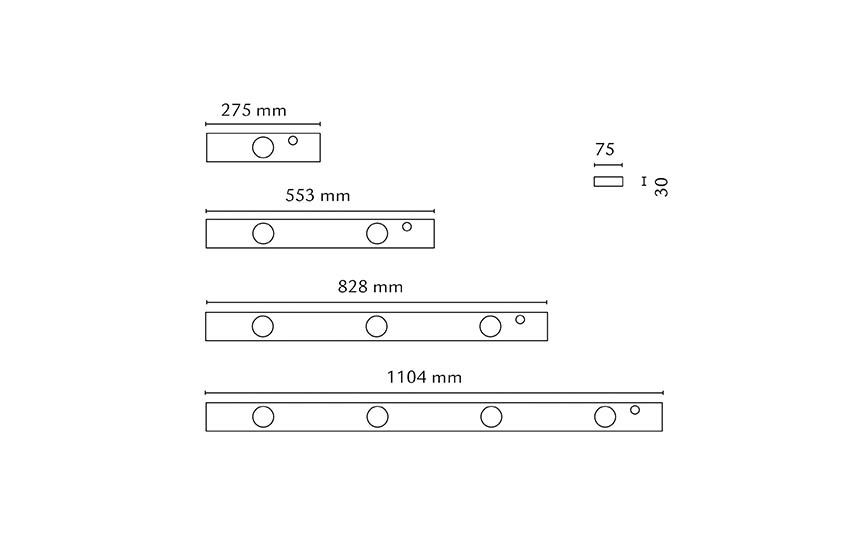

Dimensions

Length (mm) L
275
Width (mm) W
75
Height (mm) H
30
Weight (kg) gross/net
0.732 / 0.61

Packaging

Packaging dimensions (mm)
290 x 80 x 40
