Chef

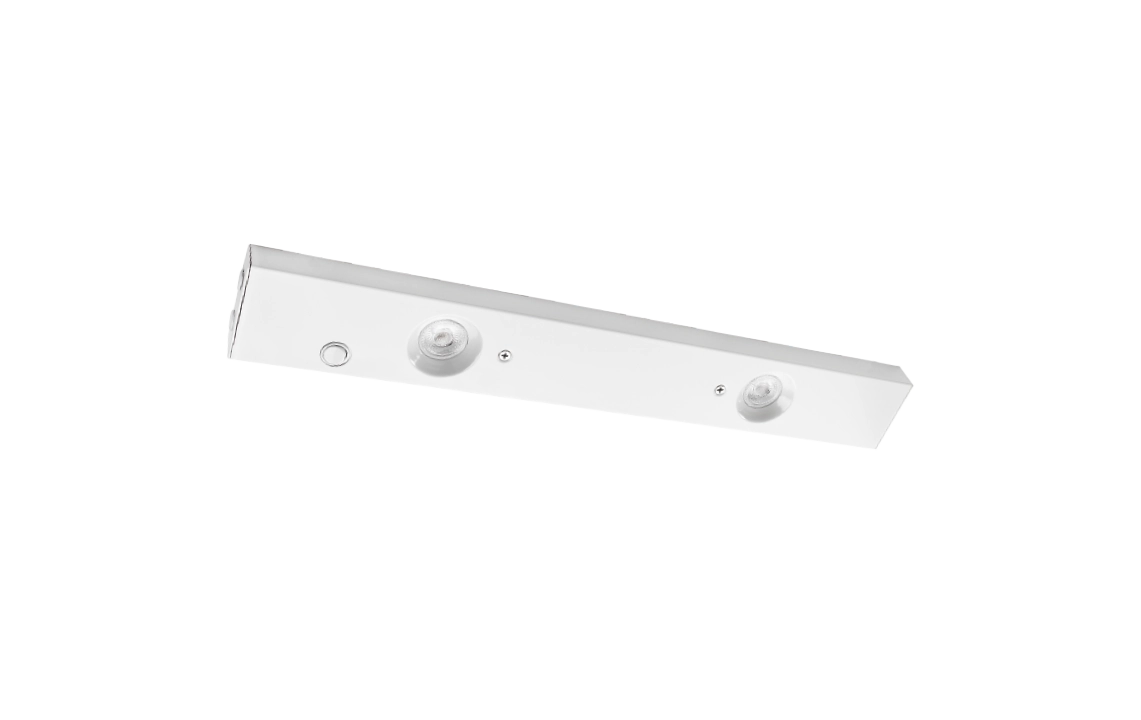

Chef White DimToWarm 600lm 2000-2800K Ra>90 Trailing edge

Article code
391062
EAN
7021983910622
Back to articlelist

Overview

Wattage
2x5W
Efficacy
60 lm/W
Lumen
600lm
IP Class
IP21
Colour temperature
2000-2800K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dimtowarm
  • ip21
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 391062 Revit file - Generic Chef L553 x W75 x H30 - generic Revit file - Face Based Chef L553 x W75 x H30 - face based

See more

Mounting instruction Chef Kl 1 DTW_User manual Eulumdat file (ldt) 7021983910622_Chef White DimToWarm 600lm 2000-2800K Ra90 Trailing edge dimming Dialux file (uld) 7021983910622_Chef White DimToWarm 600lm 2000-2800K Ra90 Trailing edge dimming Relux file (rolf) 7021983910622_Chef_White_DimToWarm_600lm_2000-2800K_Ra_90_Trailing_edge_dimming CE Declaration Chef

How to specify

Text copied to clipboard

Chef White DimToWarm 600lm 2000-2800K Ra>90 Trailing edge, Article code: 391062, EAN: 7021983910622, IP21, Electrical: Wattage: 2x5W, System wattage: 10W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 600lm, Efficacy: 60 lm/W, Colour temperature: 2000-2800K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L70/B50>50,000, Light distribution: Direct, Optic: Lens, UGR: UGR<25, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IP Class: IP21, Energy and approvals: BVB: Yes, Sunda Hus: C-, Materials and finish: Housing: Steel, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 553, Width (mm) W: 75, Height (mm) H: 30, Weight (kg) gross/net: 1.464 / 1.22, Packaging: Packaging dimensions (mm): 560 x 80 x 40

Electrical

Wattage
2x5W
System wattage
10W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
600lm
Efficacy
60 lm/W
Colour temperature
2000-2800K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L70/B50>50,000

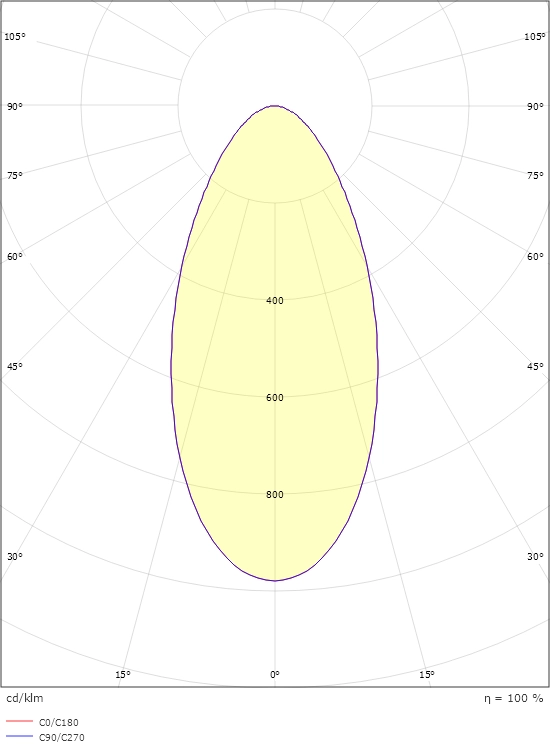

Light distribution
Direct
Optic
Lens
UGR
UGR<25

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IP Class
IP21

Energy and approvals

BVB
Yes
Sunda Hus
C-

Materials and finish

Housing
Steel
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
553
Width (mm) W
75
Height (mm) H
30
Weight (kg) gross/net
1.464 / 1.22

Packaging

Packaging dimensions (mm)
560 x 80 x 40
