Chef

Chef White 1050lm 2700K Ra>90 Trailing edge

Article code
391053
EAN
7021983910530
Back to articlelist

Overview

Wattage
3x5W
Efficacy
70 lm/W
Lumen
1050lm
IP Class
IP21
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip21
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 391053 Revit file - Generic Chef L828 x W75 x H30 - generic Revit file - Face Based Chef L828 x W75 x H30 - face based

See more

Eulumdat file (ldt) 7021983910530_Chef White 1050lm 2700K Ra90 Trailing edge dimming Dialux file (uld) 7021983910530_Chef White 1050lm 2700K Ra90 Trailing edge dimming Relux file (rolf) 7021983910530_Chef_White_1050lm_2700K_Ra_90_Trailing_edge_dimming Mounting instruction Chef_User manual CE Declaration Chef

How to specify

Text copied to clipboard

Chef White 1050lm 2700K Ra>90 Trailing edge, Article code: 391053, EAN: 7021983910530, IP21, Electrical: Wattage: 3x5W, System wattage: 15W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 1050lm, Efficacy: 70 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L70/B50>50,000, Light distribution: Direct, Optic: Lens, UGR: UGR<16, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP21, Energy and approvals: Contains light source of energy class: G, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C-, Materials and finish: Housing: Steel, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: 4-pole screwless terminal block with 4x2,5mm2 through wiring, Dimensions: Length (mm) L: 828, Width (mm) W: 75, Height (mm) H: 30, Weight (kg) gross/net: 1.98 / 1.65, Packaging: Packaging dimensions (mm): 840 x 80 x 40

Electrical

Wattage
3x5W
System wattage
15W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
1050lm
Efficacy
70 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L70/B50>50,000

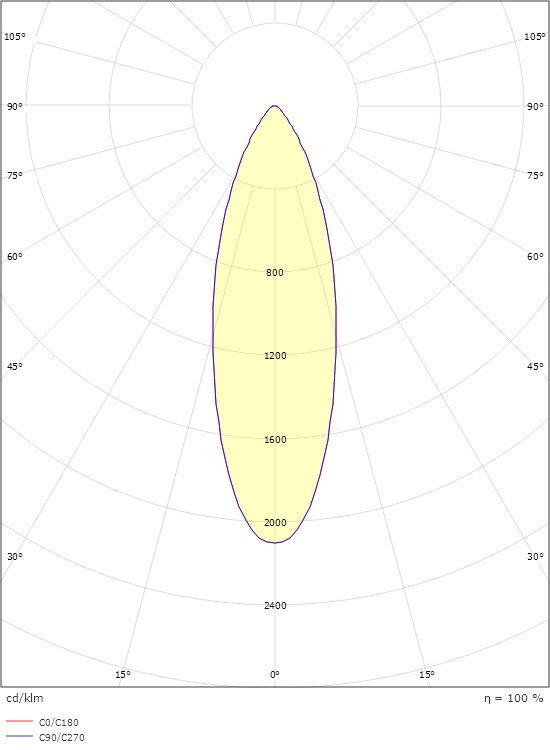

Light distribution
Direct
Optic
Lens
UGR
UGR<16

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP21

Energy and approvals

Contains light source of energy class
G
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C-

Materials and finish

Housing
Steel
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
4-pole screwless terminal block with 4x2,5mm2 through wiring

Dimensions

Length (mm) L
828
Width (mm) W
75
Height (mm) H
30
Weight (kg) gross/net
1.98 / 1.65

Packaging

Packaging dimensions (mm)
840 x 80 x 40
