View

View White w/ outlet 890lm 2700K Ra>90 Trailing edge

Article code
111433
EAN
7021981114336
Back to articlelist

Overview

Efficacy
81 lm/W
Lumen
890lm
IP Class
IP44 (mounted horizontally) / IP20 (mounted vertically)
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ik10
  • ip44
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 111433 Revit file - Generic View w outlet - generic Revit file - Face Based View w outlet - face based

See more

Mounting instruction View Socket_User Manual Eulumdat file (ldt) 7021981114336_View White w outlet 890lm 2700K Ra90 Trailing edge dimming Dialux file (uld) 7021981114336_View White w outlet 890lm 2700K Ra90 Trailing edge dimming Relux file (rolf) 7021981114336_View_White_w__outlet_890lm_2700K_Ra_90_Trailing_edge_dimming EPD NEPD-8258-7924_View-Outlet CE Declaration View

How to specify

Text copied to clipboard

View White w/ outlet 890lm 2700K Ra>90 Trailing edge, Article code: 111433, EAN: 7021981114336, IP44 (mounted horizontally) / IP20 (mounted vertically), IK10, Electrical: System wattage: 11W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 23, B16: 37, C10: 29, C16: 46, Light technic: Type of light source: LED, Luminous flux: 890lm, Efficacy: 81 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L90/B10>50,000, Lifetime: L80/B10>100,000, Light distribution: Direct, Optic: Opal, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP44 (mounted horizontally) / IP20 (mounted vertically), Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 460, Width (mm) W: 150, Height (mm) H: 60, Depth (D): 150, Weight (kg) gross/net: 1.38 / 1.15, Packaging: Packaging dimensions (mm): 470 x 155 x 68

Electrical

System wattage
11W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 23, B16: 37, C10: 29, C16: 46

Light technic

Type of light source
LED
Luminous flux
890lm
Efficacy
81 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L90/B10>50,000
Lifetime
L80/B10>100,000

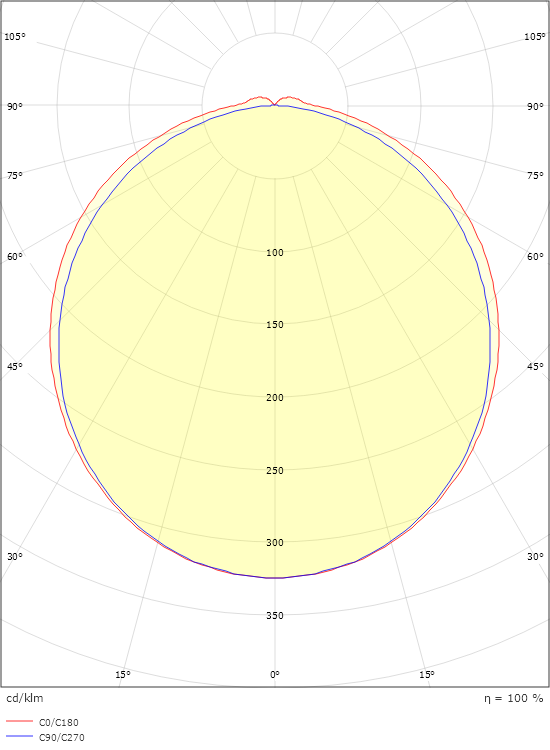

Light distribution
Direct
Optic
Opal
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP44 (mounted horizontally) / IP20 (mounted vertically)

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

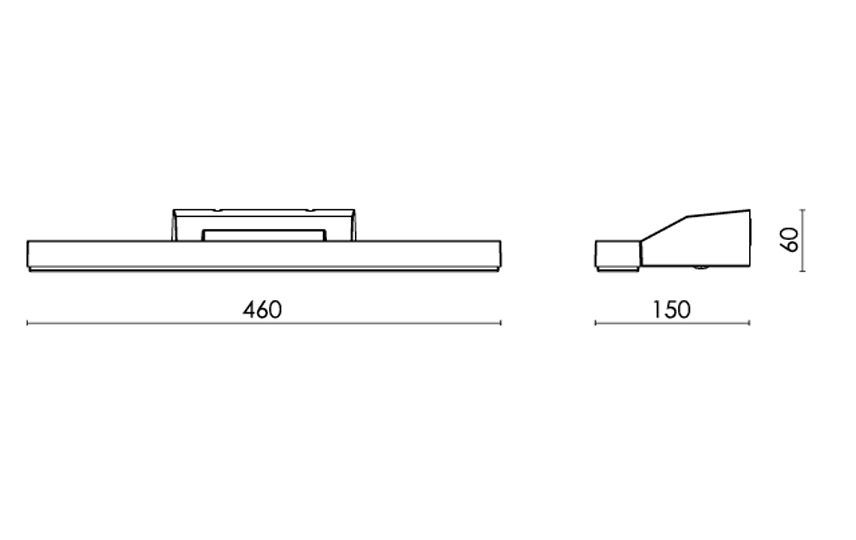

Dimensions

Length (mm) L
460
Width (mm) W
150
Height (mm) H
60
Depth (D)
150
Weight (kg) gross/net
1.38 / 1.15

Packaging

Packaging dimensions (mm)
470 x 155 x 68
