Inspire Prism

Inspire 1500 White prism 4960lm 4000K Ra>80 DALI-2

Article code
212865
EAN
7021982128653
Back to articlelist

Overview

Efficacy
142 lm/W
Lumen
4960lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Suspended, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 212865 Revit file - Generic Inspire Prism 1500 - generic Revit file - Face Based Inspire Prism 1500 - face based

See more

Eulumdat file (ldt) 7021982128653_Inspire Prism 1500 White 4960lm 4000K Ra80 DALI Dialux file (uld) 7021982128653_Inspire Prism 1500 White 4960lm 4000K Ra80 DALI Relux file (rolf) 7021982128653_Inspire_Prism_1500_White_4960lm_4000K_Ra_80_DALI EPD NEPD-8053-7729_Inspire-1500-Prism Mounting instruction Inspire Prism_User Manual CE Declaration Inspire Prism

How to specify

Text copied to clipboard

Inspire 1500 White prism 4960lm 4000K Ra>80 DALI-2, Article code: 212865, EAN: 7021982128653, IP20, Electrical: System wattage: 35W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 12, B16: 20, C10: 21, C16: 29, Leakage current (mA): 0.29, Light technic: Type of light source: LED, Luminous flux: 4960lm, Efficacy: 142 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>100,000, Lifetime: L96>50,000, Light distribution: Direct/Indirect, Optic: Prism Optic, UGR: UGR<19, Visible flicker (PstLM): <1, Stroboscopic flicker (SVM): <0,4, Photobiological safety: RG 0, Control/Dimming: Type: DALI-2, Driver: 950mA, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: B, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Suspended, Indoor, Module: 1500, Wire set: 2x2m wire kit, Cable: Cable 5x0,75mm² 2,5m, Dimensions: Length (mm) L: 1465, Width (mm) W: 38, Height (mm) H: 67, Weight (kg) gross/net: 4.3 / 3.9, Packaging: Packaging dimensions (mm): 1590 x 90 x 61

Electrical

System wattage
35W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 12, B16: 20, C10: 21, C16: 29
Leakage current (mA)
0.29

Light technic

Type of light source
LED
Luminous flux
4960lm
Efficacy
142 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>100,000
Lifetime
L96>50,000

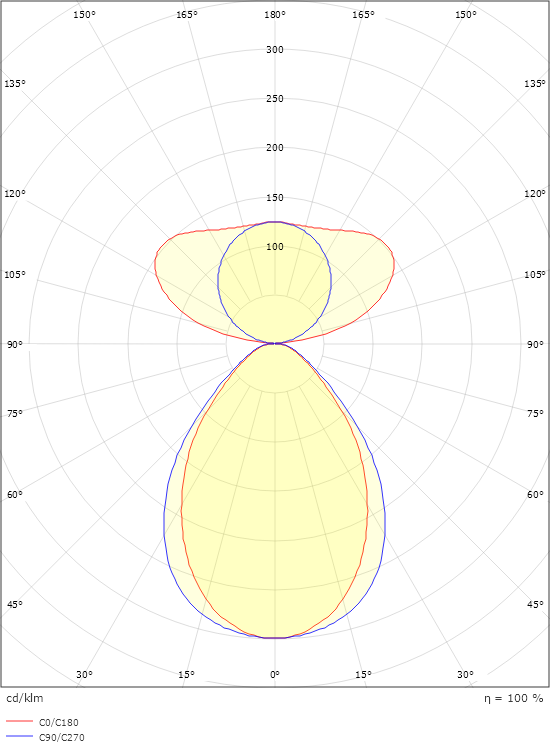

Light distribution
Direct/Indirect
Optic
Prism Optic
UGR
UGR<19
Visible flicker (PstLM)
<1
Stroboscopic flicker (SVM)
<0,4
Photobiological safety
RG 0

Control/Dimming

Type
DALI-2
Driver
950mA

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
B
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Suspended, Indoor
Module
1500
Wire set
2x2m wire kit
Cable
Cable 5x0,75mm² 2,5m

Dimensions

Length (mm) L
1465
Width (mm) W
38
Height (mm) H
67
Weight (kg) gross/net
4.3 / 3.9

Packaging

Packaging dimensions (mm)
1590 x 90 x 61
