Hurdal Connect

Hurdal Connect 600 White 1590lm 3000K Ra>80 Connect

Article code
113126
EAN
7021981131265
Back to articlelist

Overview

Efficacy
133 lm/W
Lumen
1590lm
IP Class
IP44
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • d
  • el
  • ip44
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 113126 Mounting instruction Hurdal Connect_User Manuals EPD NEPD-14082-14420_Hurdal-Connect-600 CE Declaration Hurdal Connect Relux file (rolf) 7021981131265_Hurdal_600_White_1590lm_3000K_Ra_80_Connect Eulumdat file (ldt) 7021981131265_Hurdal 600 White 1590lm 3000K Ra80 Connect Dialux file (uld) 7021981131265_Hurdal 600 White 1590lm 3000K Ra80 Connect Revit file - Generic Hurdal 600 connect - generic Revit file - Face Based Hurdal 600 Connect - face based

How to specify

Text copied to clipboard

Hurdal Connect 600 White 1590lm 3000K Ra>80 Connect, Article code: 113126, EAN: 7021981131265, IP44, Electrical: System wattage: 12W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 25, B16: 40, C10: 41, C16: 68, Leakage current (mA): 0,7, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 1590lm, Efficacy: 133 lm/W, Constant lumen output option: Yes, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opal, Visible flicker (PstLM): <1, Stroboscopic flicker (SVM): <0,4, Photobiological safety: RG 0, Control/Dimming: Type: Connect, Protection: Luminaire class: Class I, IP Class: IP44, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Steel, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Module: 600, Connection: 3-pole screwless terminal block with 3x2,5mm² through wiring, Dimensions: Length (mm) L: 600, Width (mm) W: 72, Height (mm) H: 76, Weight (kg) gross/net: 1.15 / 0.95, Packaging: Packaging dimensions (mm): 623 x 76 x 88

Electrical

System wattage
12W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 25, B16: 40, C10: 41, C16: 68
Leakage current (mA)
0,7

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
1590lm
Efficacy
133 lm/W
Constant lumen output option
Yes
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000
Light distribution
Direct
Optic
Opal
Visible flicker (PstLM)
<1
Stroboscopic flicker (SVM)
<0,4
Photobiological safety
RG 0

Control/Dimming

Type
Connect

Protection

Luminaire class
Class I
IP Class
IP44

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Steel
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Module
600
Connection
3-pole screwless terminal block with 3x2,5mm² through wiring

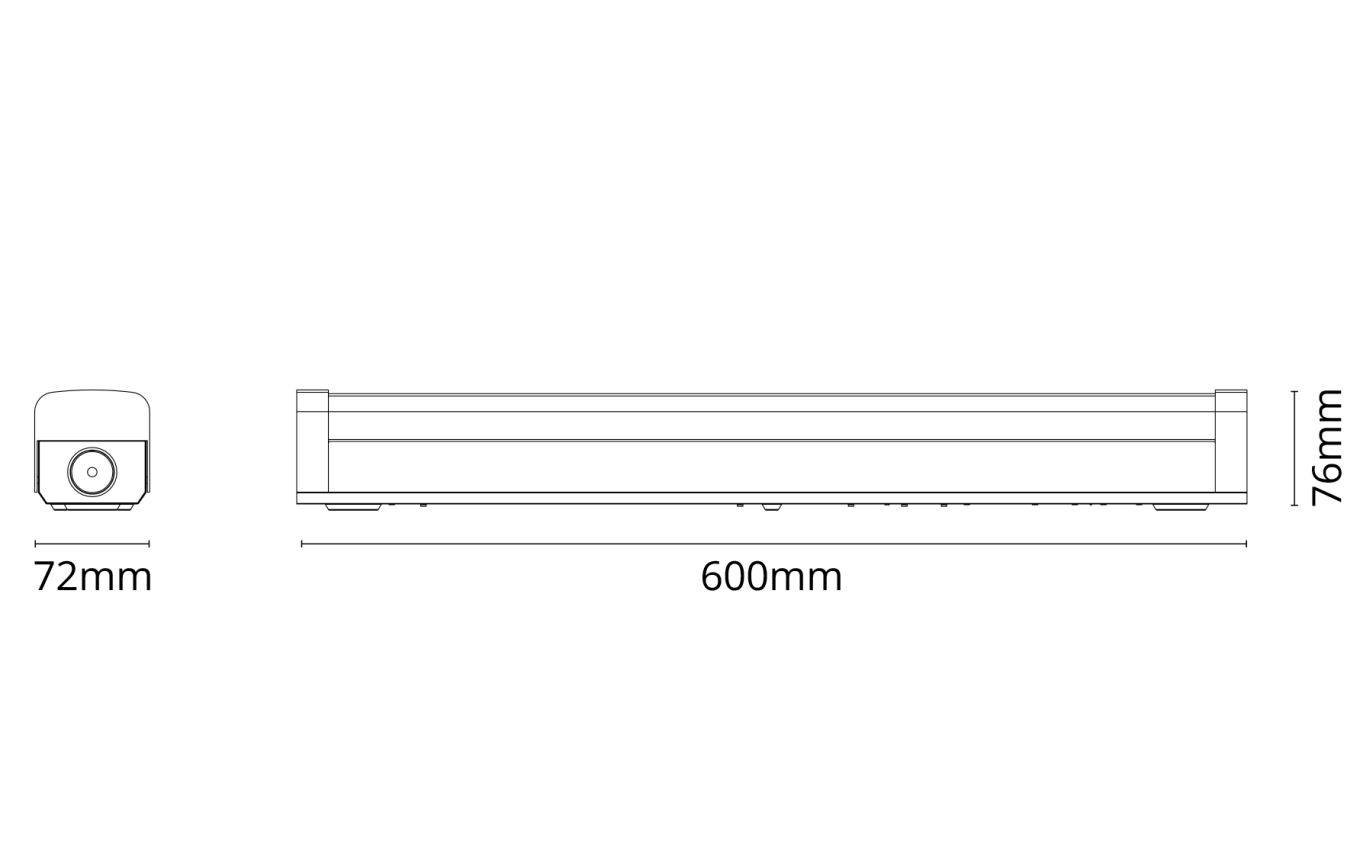

Dimensions

Length (mm) L
600
Width (mm) W
72
Height (mm) H
76
Weight (kg) gross/net
1.15 / 0.95

Packaging

Packaging dimensions (mm)
623 x 76 x 88
