Rax Soft 200 Connect Wireless
Rax Soft 200 Satin 4260lm Ra>80 Connect Wireless
- Article code
- 820515+212773
- EAN
- 7021982127731+7021988205150
- SG code
- 212773+820515
Overview
- Wattage
- 35W
- Efficacy
- 122 lm/W
- Lumen
- 4260lm
- IP Class
- IP44/IP20
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
Electrical
- Wattage
- 35W
- System wattage
- 35W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 22, B16: 35, C10: 36, C16: 60
Light technic
- Type of light source
- LED
- Luminous flux
- 4260lm
- Efficacy
- 122 lm/W
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 2
- Lifetime
- L90/B10>100,000

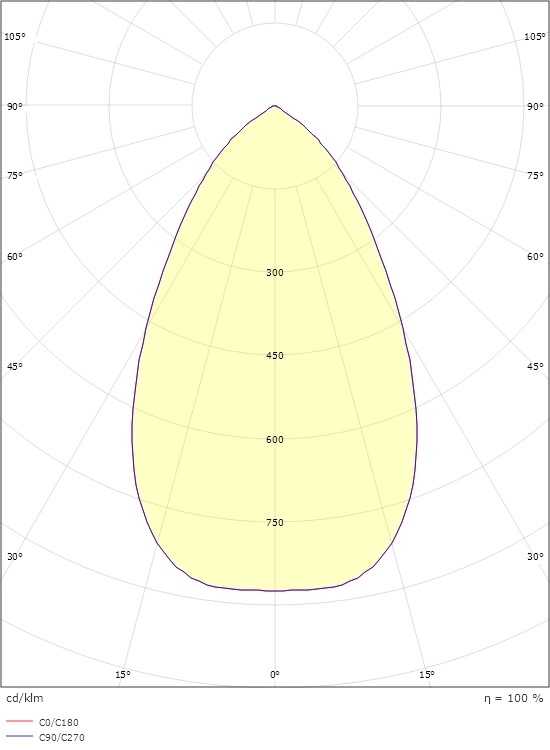

- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 62°
Control/Dimming
- Type
- Connect Wireless
- Driver
- 900mA
Protection
- Luminaire class
- Class II SELV
- IK Class
- IK08
- IP Class
- IP44/IP20
Energy and approvals
- Contains light source of energy class
- D
Materials and finish
- Housing
- Flame retardant polycarbonate
- Colour
- White/Satin mat
- Optics
- Polycarbonat (PC)
Mounting/Connection
- Mounting
- Recessed, Indoor
- Connection
- 3 pol Linect / screwless terminal block
Dimensions
- Height (mm) H
- 93
- Diameter (mm) D
- 216
- Cut-out (mm)
- 200
- Weight (kg) gross/net
- 1.2 / 1
Packaging
- Packaging dimensions (mm)
- 240 x 240 x 102
