CircLED Wall

CircLED Wall Grey 1640lm 4000K Ra>80 On/Off

Article code
8246086136
EAN
5703821166416
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
117 lm/W
Lumen
1640lm
IP Class
IP54
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Wall, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik09
  • ip54
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246086136 Eulumdat file (ldt) 5703821166416_CircLED Wall Single Grey 14W LED 4000K Ra80-24760 Dialux file (uld) 5703821166416_CircLED Wall Single Grey 14W LED 4000K Ra80

See more

Relux file (rolf) 5703821166416_CircLED_Wall_Grey_1640lm_4000K_Ra_80_On_Off Revit file - Generic CirLED Wall - Generic Revit file - Wall Based CirLED Wall - Wall based Mounting instruction CircLED Wall Mounting Instruction CE Declaration CircLED Wall

How to specify

Text copied to clipboard

CircLED Wall Grey 1640lm 4000K Ra>80 On/Off, Article code: 8246086136, EAN: 5703821166416, IP54, IK09, Electrical: System wattage: 14W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 1640lm, Efficacy: 117 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Single Lens, Optic: Lens, ULOR (<1%): Yes, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK09, IP Class: IP54, Surge protection: Integrated (min. 4 kV), Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Die-cast aluminium, Colour: Grey (structure 2150 sablé), Optics: Tempered glass, Mounting/Connection: Mounting: Wall, Outdoor, Dimensions: Length (mm) L: 498, Width (mm) W: 390, Height (mm) H: 201, Weight (kg) gross/net: 9.2 / 9, Packaging: Packaging dimensions (mm): 525 x 395 x 210

Electrical

System wattage
14W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
1640lm
Efficacy
117 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000
Light distribution
Single Lens
Optic
Lens
ULOR (<1%)
Yes

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK09
IP Class
IP54
Surge protection
Integrated (min. 4 kV)

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Die-cast aluminium
Colour
Grey (structure 2150 sablé)
Optics
Tempered glass

Mounting/Connection

Mounting
Wall, Outdoor

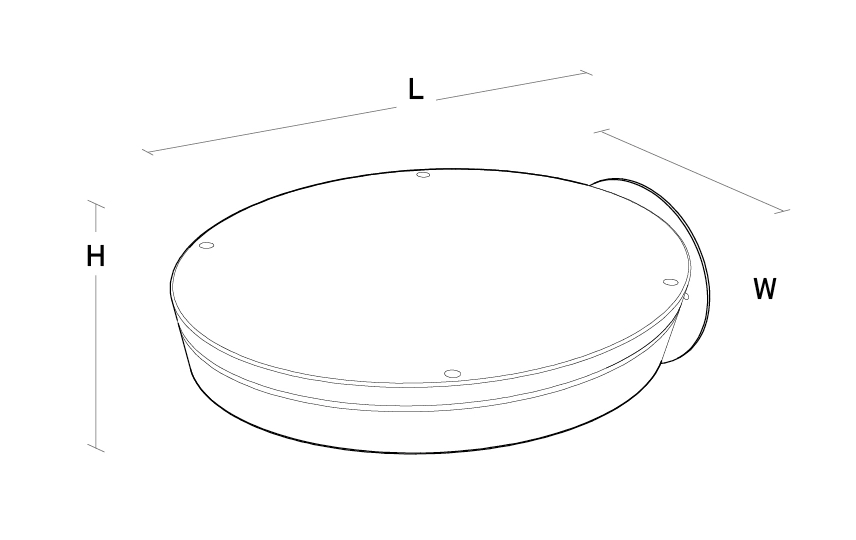

Dimensions

Length (mm) L
498
Width (mm) W
390
Height (mm) H
201
Weight (kg) gross/net
9.2 / 9

Packaging

Packaging dimensions (mm)
525 x 395 x 210
