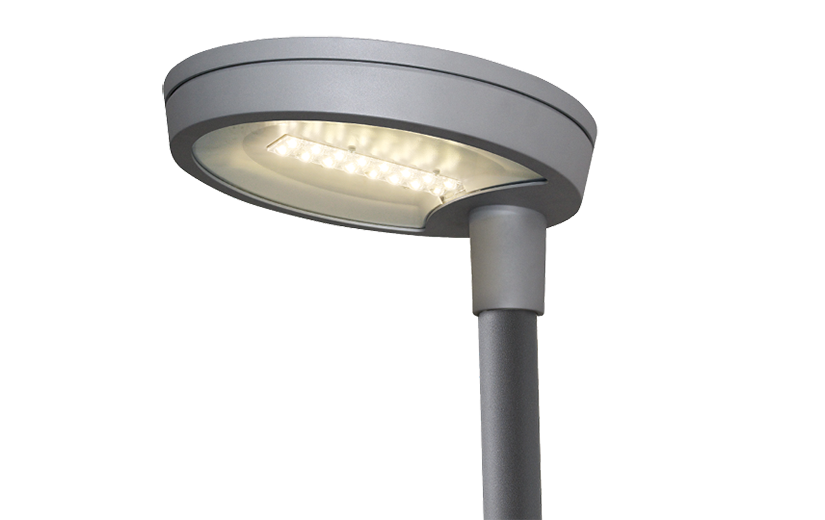

CircLED Multi

Design: Christian Hvidt. Light for mounting on mast, IP66-rated. Luminaire body made of die-cast aluminium, powder-coated in black or grey. Reflector made of aluminium, powder-coated white. Optics are particularly well suited to giving a direct light distribution due to the tempered glass front. Complete with LED driver for operation of LED light sources mounted to component rail pre-mounted with six-metre connection cable. Lamp head prepared for mounting on 60 mm mast. Electrical safety class I or II. IK09.

Design: Christian Hvidt

Article list

CircLED Multi

Outdoor Multi Lens SDCM: 3 Class II, Class I IK09 IP66 Ra>70 L80/B10> 100,000, L80/B10> 80,000

Filters

Color

System wattage

Lumen

Control gear

					Others	Tools
8246084565	4000K	23W	3120lm	On/Off	136 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246086437	4000K	19W	2520lm	DYNADIM Profil 1	133 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086440	4000K	23W	3120lm	DYNADIM Profil 1	136 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246086453	4000K	31W	3950lm	DYNADIM Profil 1	127 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086479	4000K	23W	3120lm	DYNADIM Profil 1	136 lm/W, L460 x W390 x H185, Top Adjustable 5-17°, Lens 2, Class II, Cable 2x1mm² 6m, Post - adjustable head 5-17°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246086482	4000K	31W	3950lm	DYNADIM Profil 1	127 lm/W, L460 x W390 x H185, Top Adjustable 5-17°, Lens 2, Class II, Cable 2x1mm² 6m, Post - adjustable head 5-17°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246086495	4000K	31W	3950lm	DYNADIM Profil 1	127 lm/W, L523 x W390 x H135, Side, Lens 2, Class II, Cable 2x1mm² 10m, Pole - Side (Ø48mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090876	4000K	23W	3120lm	Lumistep LS8	136 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246084523	4000K	19W	2520lm	On/Off	133 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246084536	4000K	19W	2520lm	On/Off	133 lm/W, L460 x W390 x H185, Top Adjustable 5-17°, Lens 2, Class II, Cable 2x1mm² 6m, Post - adjustable head 5-17°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246084552	4000K	23W	3120lm	On/Off	136 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246084578	4000K	31W	3950lm	On/Off	127 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086398	4000K	23W	3120lm	On/Off	136 lm/W, L460 x W390 x H185, Top Adjustable 5-17°, Lens 2, Class II, Cable 2x1mm² 6m, Post - adjustable head 5-17°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246086408	4000K	31W	3950lm	On/Off	127 lm/W, L460 x W390 x H185, Top Adjustable 5-17°, Lens 2, Class II, Cable 2x1mm² 6m, Post - adjustable head 5-17°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246086411	4000K	31W	3950lm	On/Off	127 lm/W, L523 x W390 x H135, Side, Lens 2, Class II, Cable 2x1mm² 10m, Pole - Side (Ø48mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094115	4000K	82W	9870lm	On/Off	120 lm/W, L460 x W390 x H185, Top, Lens 3, Class II, Cable 2x1mm² 10m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094128	4000K	42W	5820lm	On/Off	139 lm/W, L460 x W390 x H185, Top, Lens 3, Class II, Cable 2x1mm² 10m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094157	4000K	82W	9870lm	On/Off	120 lm/W, L523 x W390 x H135, Side, Lens 3, Class II, Cable 2x1mm² 10m, Pole - Side (Ø48mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094160	4000K	42W	5820lm	On/Off	139 lm/W, L523 x W390 x H135, Side, Lens 3, Class II, Cable 2x1mm² 10m, Pole - Side (Ø48mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246083045	4000K	23W	3120lm	On/Off	136 lm/W, L460 x W390 x H185, Top, Lens 2, Class I, Cable 3x1mm² 6,0m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246083058	4000K	31W	3950lm	On/Off	127 lm/W, L460 x W390 x H185, Top, Lens 2, Class I, Cable 3x1mm² 6,0m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

					Others	Tools
8246084565	4000K	23W	3120lm	On/Off	136 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246086437	4000K	19W	2520lm	DYNADIM Profil 1	133 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086440	4000K	23W	3120lm	DYNADIM Profil 1	136 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246086453	4000K	31W	3950lm	DYNADIM Profil 1	127 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086479	4000K	23W	3120lm	DYNADIM Profil 1	136 lm/W, L460 x W390 x H185, Top Adjustable 5-17°, Lens 2, Class II, Cable 2x1mm² 6m, Post - adjustable head 5-17°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246086482	4000K	31W	3950lm	DYNADIM Profil 1	127 lm/W, L460 x W390 x H185, Top Adjustable 5-17°, Lens 2, Class II, Cable 2x1mm² 6m, Post - adjustable head 5-17°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246086495	4000K	31W	3950lm	DYNADIM Profil 1	127 lm/W, L523 x W390 x H135, Side, Lens 2, Class II, Cable 2x1mm² 10m, Pole - Side (Ø48mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090876	4000K	23W	3120lm	Lumistep LS8	136 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246084523	4000K	19W	2520lm	On/Off	133 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246084536	4000K	19W	2520lm	On/Off	133 lm/W, L460 x W390 x H185, Top Adjustable 5-17°, Lens 2, Class II, Cable 2x1mm² 6m, Post - adjustable head 5-17°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246084552	4000K	23W	3120lm	On/Off	136 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246084578	4000K	31W	3950lm	On/Off	127 lm/W, L460 x W390 x H185, Top, Lens 2, Class II, Cable 2x1mm² 6m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246086398	4000K	23W	3120lm	On/Off	136 lm/W, L460 x W390 x H185, Top Adjustable 5-17°, Lens 2, Class II, Cable 2x1mm² 6m, Post - adjustable head 5-17°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246086408	4000K	31W	3950lm	On/Off	127 lm/W, L460 x W390 x H185, Top Adjustable 5-17°, Lens 2, Class II, Cable 2x1mm² 6m, Post - adjustable head 5-17°	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246086411	4000K	31W	3950lm	On/Off	127 lm/W, L523 x W390 x H135, Side, Lens 2, Class II, Cable 2x1mm² 10m, Pole - Side (Ø48mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094115	4000K	82W	9870lm	On/Off	120 lm/W, L460 x W390 x H185, Top, Lens 3, Class II, Cable 2x1mm² 10m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094128	4000K	42W	5820lm	On/Off	139 lm/W, L460 x W390 x H185, Top, Lens 3, Class II, Cable 2x1mm² 10m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094157	4000K	82W	9870lm	On/Off	120 lm/W, L523 x W390 x H135, Side, Lens 3, Class II, Cable 2x1mm² 10m, Pole - Side (Ø48mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246094160	4000K	42W	5820lm	On/Off	139 lm/W, L523 x W390 x H135, Side, Lens 3, Class II, Cable 2x1mm² 10m, Pole - Side (Ø48mm)	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246083045	4000K	23W	3120lm	On/Off	136 lm/W, L460 x W390 x H185, Top, Lens 2, Class I, Cable 3x1mm² 6,0m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8246083058	4000K	31W	3950lm	On/Off	127 lm/W, L460 x W390 x H185, Top, Lens 2, Class I, Cable 3x1mm² 6,0m, Post - top (Ø60mm)	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
8249042083	Galvanized Pole 3m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249042096	Galvanized Pole 4m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249042106	Galvanized Conical Pole 3m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249042119	Galvanized Conical Pole 4m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249042180	Galvanized Ground anchor Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249043943	Galvanized Reducer part from Ø76 to Ø60 Steel	L230 x W98 x H230	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249043862	Grey Design pole 3m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249043891	Grey Design pole 4m Steel		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249042203	Mounting unit		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.
