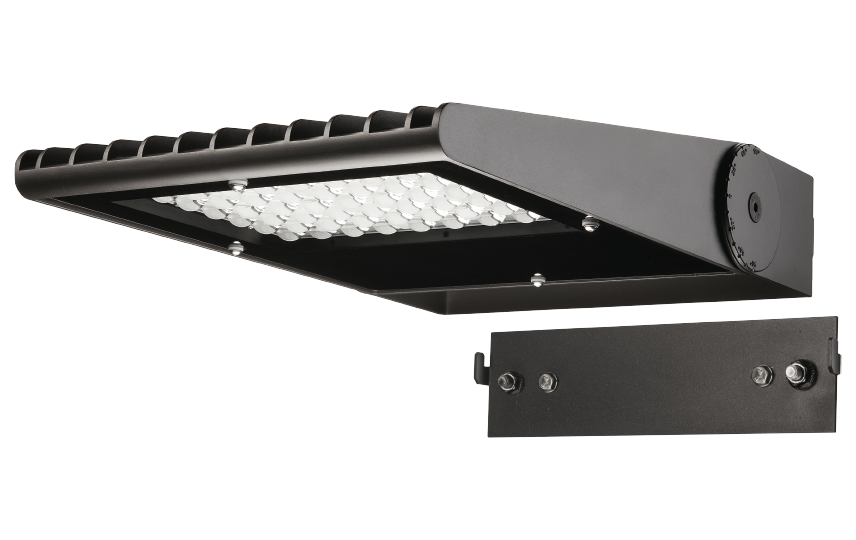

Langfoss

Langfoss is a powerful floodlight luminaire suitable for lighting large spaces, transport and storage areas, playgrounds, courts and car parks. Can also be used as facade lighting. Nordic design for Nordic conditions. The sloping top allows snow to slide off, and the bracket can withstand heavy loads. Asymmetrical optics send the light where it is needed, and the mounting bracket can be angled as required. Super simple installation with two-piece mounting bracket with hooks. Die-cast powder-coated aluminium with tempered glass front. Attachment for IP68 protection included. Accessories for flexible installation: post for mounting top, post for mounting sides, corner bracket and extension cable.

Article list

Download product sheet

Langfoss

Indoor, Outdoor Asymmetric SDCM: 3 Class I IK08 IP66 Ra>70

Filters

Colour temperature

System wattage

Lumen

Control gear

					Others	Tools
641935	3000K	158W	20430lm	On/Off	129 lm/W, L478 x W314 x H85, Cable 3x1mm² 2m, H07RN-F, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641947	4000K	158W	22130lm	DALI-2	140 lm/W, L478 x W314 x H85, Cable 5x1mm² 2m, H07RN-F, L80/B20> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641936	4000K	95W	14810lm	On/Off	156 lm/W, L478 x W314 x H85, Cable 3x1mm² 2m, H07RN-F, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641937	4000K	158W	22130lm	On/Off	140 lm/W, L478 x W314 x H85, Cable 3x1mm² 2m, H07RN-F, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

					Others	Tools
641935	3000K	158W	20430lm	On/Off	129 lm/W, L478 x W314 x H85, Cable 3x1mm² 2m, H07RN-F, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641947	4000K	158W	22130lm	DALI-2	140 lm/W, L478 x W314 x H85, Cable 5x1mm² 2m, H07RN-F, L80/B20> 100,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641936	4000K	95W	14810lm	On/Off	156 lm/W, L478 x W314 x H85, Cable 3x1mm² 2m, H07RN-F, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641937	4000K	158W	22130lm	On/Off	140 lm/W, L478 x W314 x H85, Cable 3x1mm² 2m, H07RN-F, L90/B10> 50,000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
641906	Langfoss Graphite Corner bracket	L297 x W174 x H138	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641907	Langfoss Ø60/76 Graphite Pole-top	L297 x W113 x H141	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641908	Langfoss Ø60/76 Graphite Pole bracket	L297 x W87 x H67	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641909	Langfoss Ø89/108 Graphite Pole bracket	L297 x W87 x H67	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641949	Langfoss/Mini/Maxi Graphite Fixing Plate for sandwich panels	L430 x W250 x H7	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
820259	Start current limiter DIN 16A	L90 x W18 x H58	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.
