Purpose
Lights with an integrated sensor can be added to a group by pointing to them with a torchlight.
How to add luminaires by flashlight
→ Open the group, tap “+” and select “Lights” to start discovering
all the SG Connect fixtures within Bluetooth range.
→ Please wait 10 seconds for the lights to be discovered.
→ Direct the light of a torchlight to the integrated sensor of the fixture
that you like to add to a group for a couple of seconds.
→ The smartphone responds to the detection with a sound and a brief vibration.
On the 2nd beep, the selected light dims down and shows up in the “Added”
tap in the app. The light is now commissioned. Wait for another 3 seconds
before proceeding to the next light.
→ When all luminaires for a group have been selected, choose “Finish adding”.
The devices that are bind to that group are now displayed in the group overview.
Step-by-step guide
Step 1

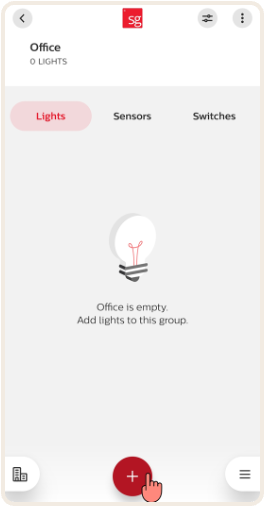

Open the group, and press the “+” icon.
Step 2

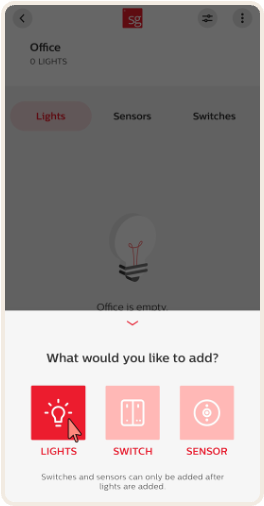

Select “Lights” to start discovering all the SG Connect fixtures within Bluetooth range.
Step 3

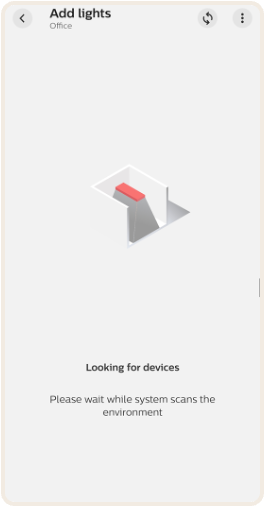

Please wait 10 seconds for the lights to be discovered.
Step 4

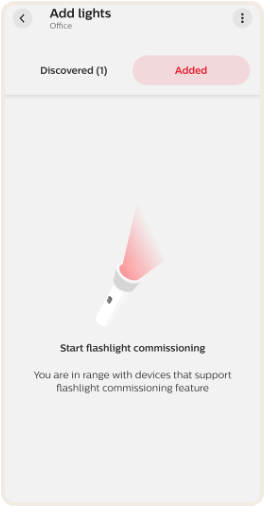

Direct the light of a torchlight to the integrated sensor of the fixture that you like to add to a group for a couple of seconds.
Step 5

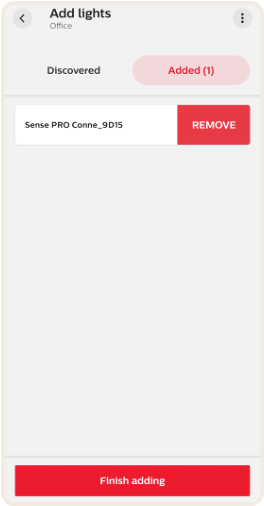

The smartphone responds to the detection with a sound and a brief vibration. On the 2nd beep, the selected light dims down and shows up in the “Added” tap in the app. The light is now commissioned. Wait for another 3 seconds before proceeding to the next light.
Step 6

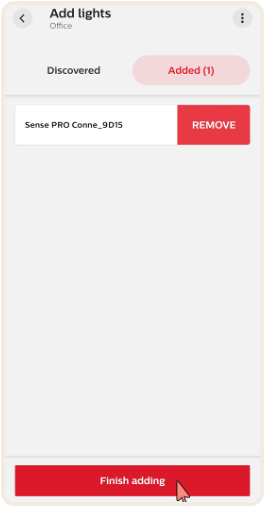

When all luminaires for a group have been selected, choose “Finish adding”.
Step 7

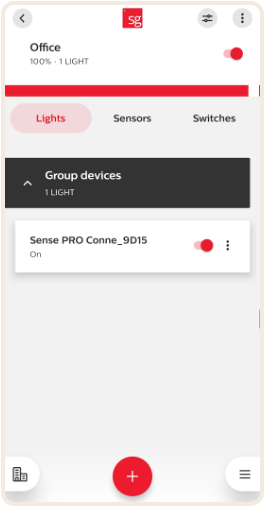

The devices that are bind to that group are now displayed in the group overview.
Remarks
→ Use a torchlight with a well-defined light cone. Please refer to the
design-in guide of the product for more information.
→ Typically, illuminance of the sensor should increase by ≥5000lx suddenly.
→ It is advised to wait for 2 beeps, after which a light will show up in “Added” tab.
→ In case a light is not added when torched, please re-try, or use the list-based commissioning.
→ In case a light can't be torched it might be that it was not in the scan list because of a too big
range, e.g., in case of a long corridor. A re-scan of the lights with closer range is required to
add this light to the list.
→ It is strongly recommended not to change the flashlight sensitivity in the app settings section.
