Arena

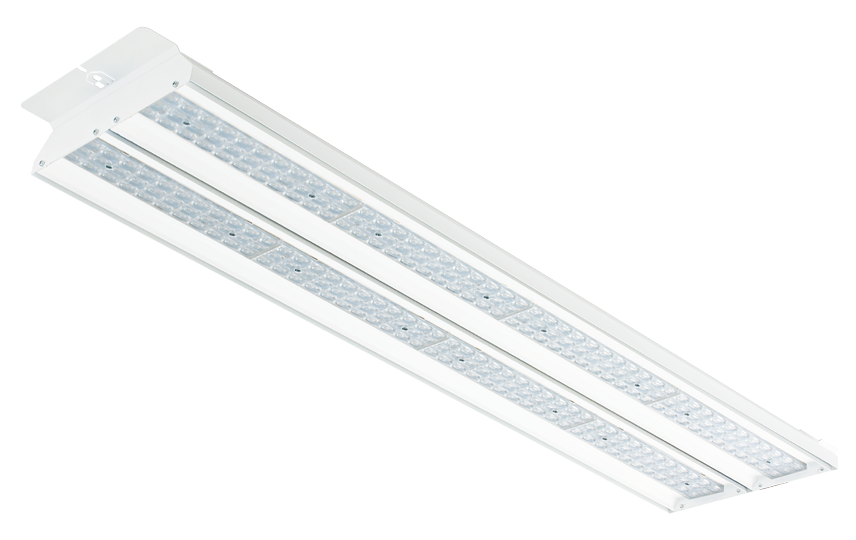

Arena 1200 White Narrow 23530lm 4000K Ra>80 DALI-2
Article code:
8246093912
EAN:
5703821176385
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
144W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 9, B16: 14, C10: 11, C16: 17
Leakage current (mA):
0,44
Light technic
Type of light source:
LED
Light source included:
Yes
Luminous flux:
23530lm
Efficacy:
163 lm/W
Colour temperature:
4000K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L90/B10>70,000
Lifetime:
L80/B20>100,000
Minimum ambient temperature:
-25°C

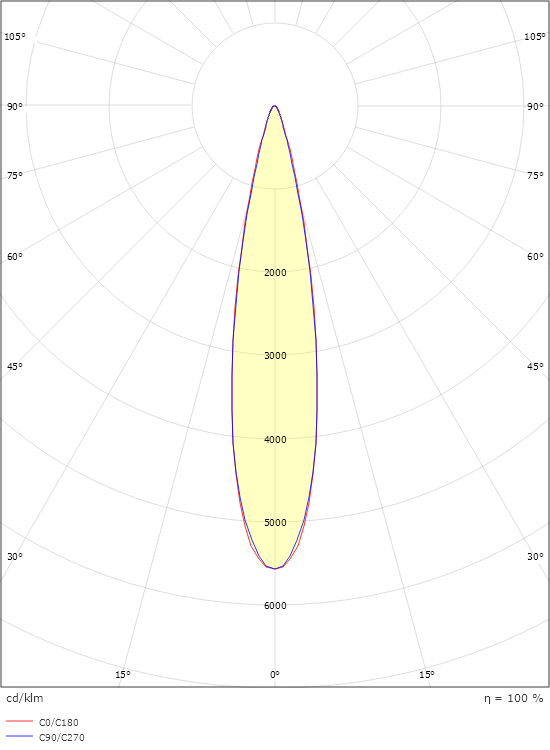

Light distribution:
Direct
Optic:
Lens Narrow
Beam angle:
Narrow

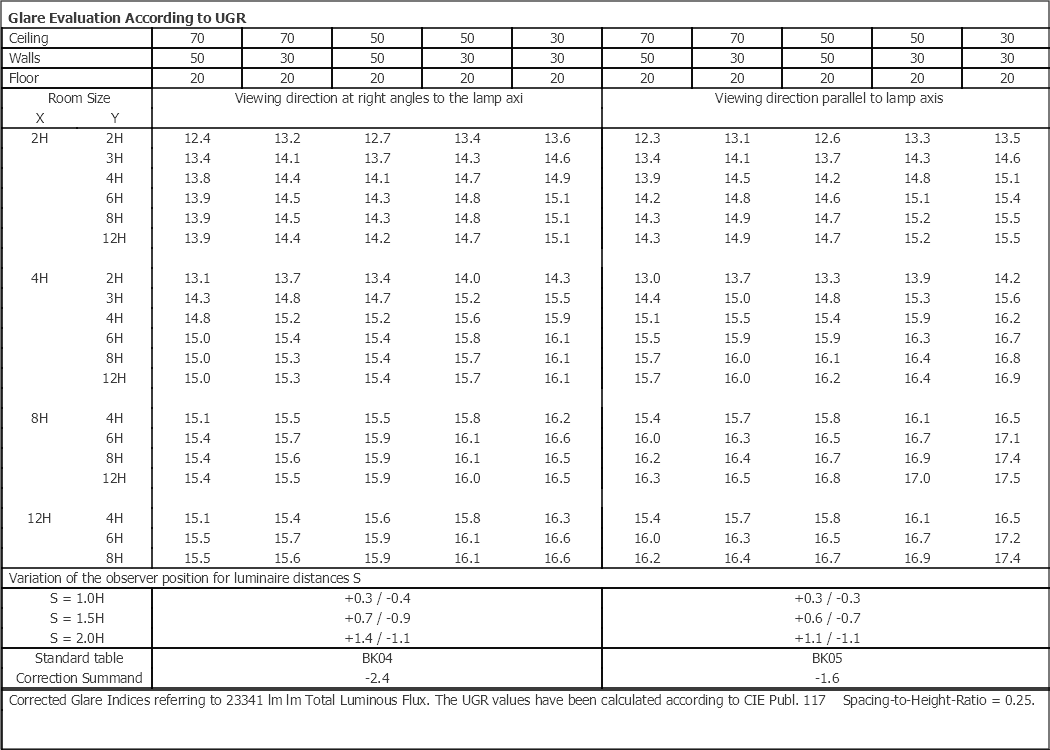

UGR:
UGR<19
Visible flicker (PstLM):
0,03
Stroboscopic flicker (SVM):
0
Control/Dimming
Type:
DALI-2
Protection
Luminaire class:
Class I
IK Class:
IK08
IP Class:
IP23
Energy and approvals
Contains light source of energy class:
C
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Sheet steel
Colour:
White (RAL 9010, 20% gloss)
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Suspended or surface, Indoor
Module:
1200
Connection:
7-pole screwless terminal block with 5x2,5mm2 (+DALI) through wiring
Dimensions
Length (mm) L:
1256
Width (mm) W:
295
Height (mm) H:
57
Weight (kg) gross/net:
8.2 / 8
Packaging
Packing dimensions (mm):
1285 x 300 x 65
